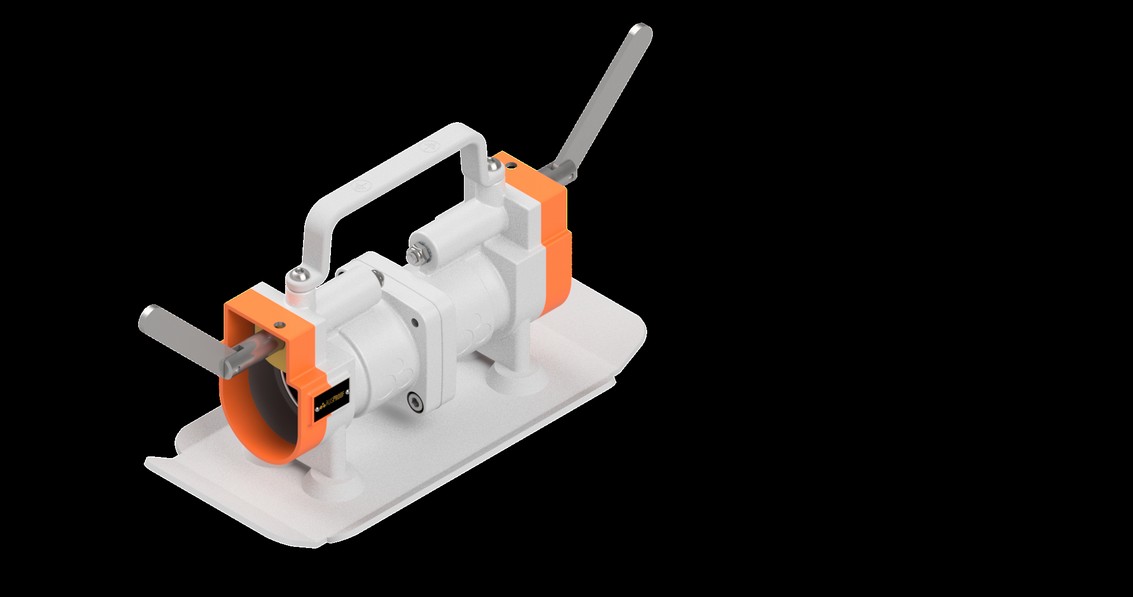

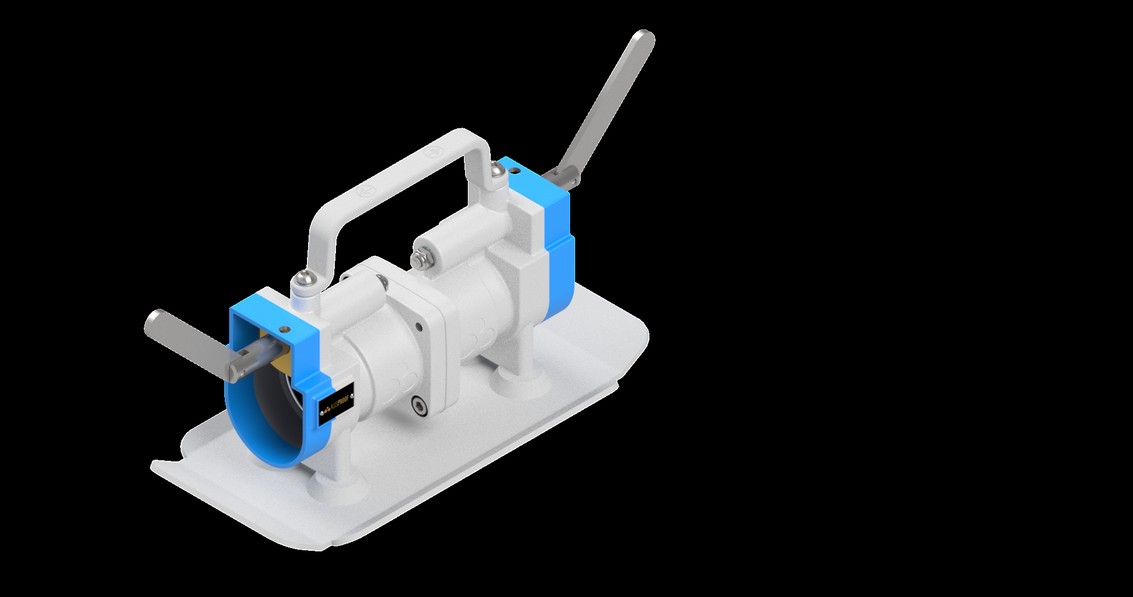

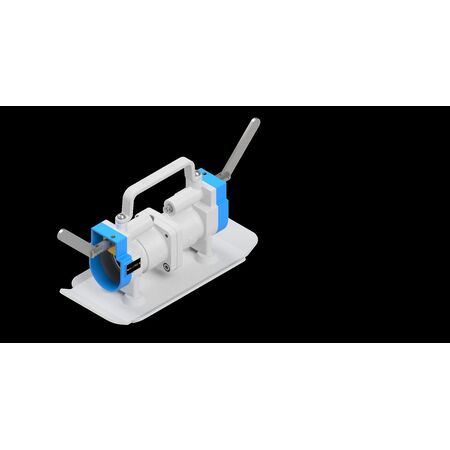

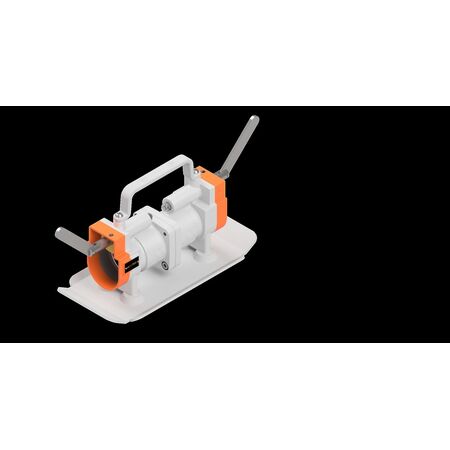

PS 12 / 20 B2B 4P Insulator and Contact Set | 150A Current Rating | IP55 Ingress Protection | Stainless Steel by Ausproof
The PS 12 / 20 B2B 4P Insulator and Contact Set features a robust 150A current rating and IP55 ingress protection—ideal for mining and hazardous environments. Built for safety and durability, with quick release and easy termination for efficient installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PS 12 / 20 B2B 4P Insulator and Contact Set
Brand: Ausproof
SKU: RS2451
Alternatively Known As: 150A Ex Plug and Receptacle, Flameproof Plug and Socket, Mining Electrical Connector, Hazardous Area Plug
Technical Specifications
- Voltage: 660 to 1,100V
- Current Rating: 150A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 Tests of 12.5kA for 0.2 seconds
- Through Fault Current (Earth): 2 Tests of 4.0kA for 0.2 seconds
- AC HV Withstand (Phase): 4.2kV for one minute
- AC HV Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: 150A
- Compliant to: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 300mm x 200mm x 250mm
- Weight: 7.9 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation should be performed by qualified electricians trained in hazardous area electrical equipment to ensure compliance and safety.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements.
- Flameproof repairable design minimizes waste by allowing on-site body casting replacement.
Warranty Information
Warranty details available upon request from Ausproof, typically covering manufacturing defects.
Available Now
The Ausproof PS 12 / 20 B2B 4P Insulator and Contact Set is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
