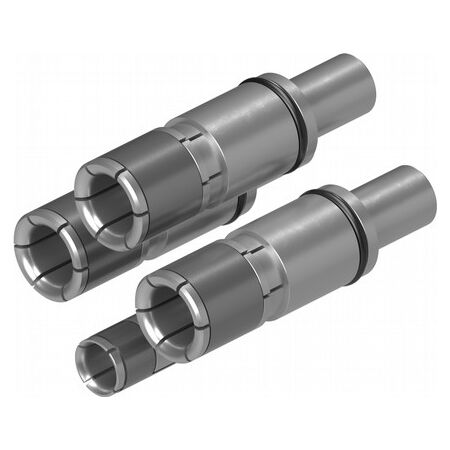

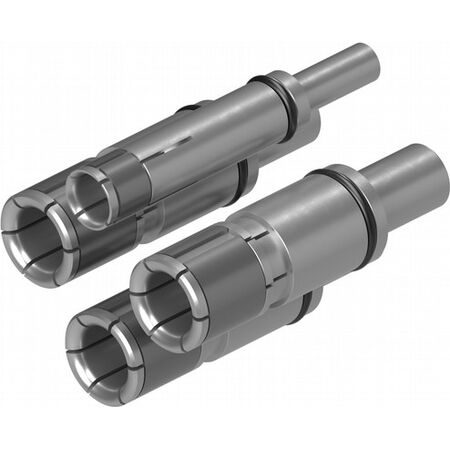

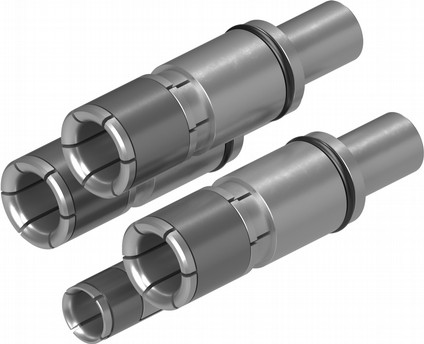

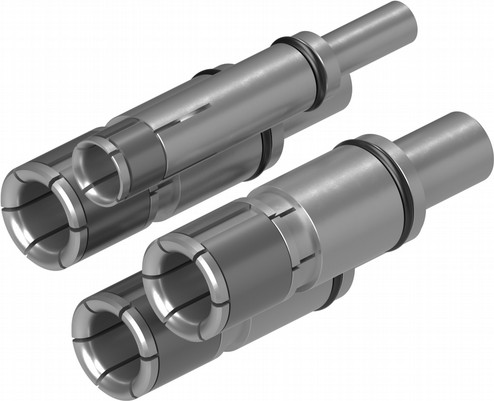

PS 12/20 Crimp Tubes 10mm² | 150A Current Rating | IP55 Ingress Protection | Stainless Steel by Ausproof

BRAND: Ausproof

SKU: RS2361

$195.30 List price: $242.50

+ −

30 Days Return Delivery Options

PS 12/20 crimp tubes with 150A current rating and IP55 ingress protection—ideal for mining and hazardous environments. Built for commercial electrical installations, featuring durable stainless steel construction and quick release mechanism for easy termination.

Description

Product Name/Title: PS 12 / 20 Crimp Tubes 10mm^2

Brand: Ausproof

SKU: RS2361

Alternatively Known As: Ex-certified 150A plugs, flameproof electrical connectors, mining plugs and receptacles, stainless steel industrial plugs

Technical Specifications

Voltage: 660 to 1,100V
Current Rating: 150A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 12.5kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 4.0kA for 0.2 seconds
AC High Voltage Withstand (Phase): 4.2kV for one minute
AC High Voltage Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 150A
Plug Weight: 4.1 kg
Receptacle Weight: 7.9 kg
Dimensions (H x L x W): 150mm x 300mm x 200mm
Weight: 7.9 kg

Key Features

Quick Release mechanism
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation must be performed by a qualified electrician experienced with Ex-certified equipment and hazardous area installations.

Applications

Mining and tunnelling operations
Commercial electrical installations
Group 1 hazardous environments requiring flameproof electrical equipment

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces replacement frequency and waste
Flameproof repairable design minimizes environmental impact by extending product life

Warranty Information

Standard manufacturer warranty applies. Please contact Ausproof for detailed warranty terms.

Available Now

The Ausproof PS 12 / 20 Crimp Tubes 10mm² plugs and receptacles are available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial electrical applications.
