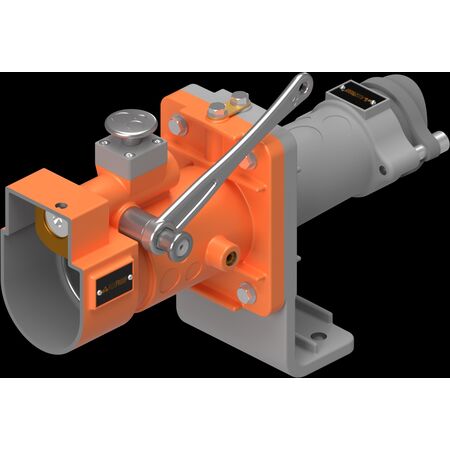

PS 660V 150A 4P Gland Bracket | IP55 Rated | Quick Release & Stainless Steel | Ausproof
PS 660V 150A 4P Gland Bracket with IP55 rating and quick release feature—ideal for mining and hazardous environments. Built for commercial applications, with durable stainless steel construction and easy flameproof repair.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PS 660V 150A 4P Gland Bracket (270) 70-C 50-55-G (241.1)
Brand: Ausproof
SKU: RS2491
Alternatively Known As: Ex-certified 150A plug and receptacle, Flameproof plug, Mining plug, Hazardous area plug
Technical Specifications
- Operating Voltage: 660 to 1,100V
- Current Rating: 150A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 Tests of 12.5kA for 0.2 seconds
- Through Fault Current (Earth): 2 Tests of 4.0kA for 0.2 seconds
- AC HV Withstand (Phase): 4.2kV for one minute
- AC HV Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: 150A
- Weight: Receptacle 7.9kg, Plug 4.1kg
- Dimensions (H x L x W): 150mm x 241mm x 270mm
- Weight: 7.9 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation should be performed by qualified electricians trained in hazardous area electrical equipment to ensure compliance and safety.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements.
- Flameproof repairable design minimizes waste by allowing on-site body casting replacement.
Warranty Information
Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.
Available Now
The Ausproof PS 660V 150A 4P Gland Bracket is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring robust and flameproof electrical connections.
