Home/Electrical/Conduit/PS 660V 150A Gland Bracket | 660-1100V | IP55 Ingress Protection | Quick Release by Ausproof

Trade Discount 19%

PS 660V 150A Gland Bracket (270) 25-C 30-35-G (275.1)

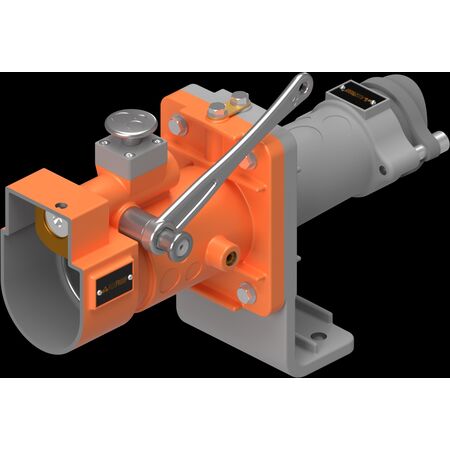

PS 660V 150A Gland Bracket | 660-1100V | IP55 Ingress Protection | Quick Release by Ausproof

BRAND: Ausproof

SKU: RS2494

$2,190.40 List price: $2,720.40

+ −

30 Days Return Delivery Options

PS 660V 150A Gland Bracket with 660-1100V voltage range and IP55 ingress protection—ideal for mining and hazardous environments. Built for professional installation, it features quick release and durable stainless steel construction for reliable performance.

Description

Product Name/Title: PS 660V 150A Gland Bracket (270) 25-C 30-35-G (275.1)

Brand: Ausproof

SKU: RS2494

Alternatively Known As: Ex-certified 150A plug and receptacle, Flameproof plug, Mining plug, Hazardous area plug

Technical Specifications

Voltage: 660 to 1,100V
Current: 150A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 12.5kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 4.0kA for 0.2 seconds
AC HV Withstand (Phase): 4.2kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: 150A
Compliant to: AS/NZS 1299, IEC 60079-0, IEC 60079-1
Dimensions (H x L x W): 150mm x 275mm x 270mm
Weight: 7.9 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Professional installation by qualified personnel trained in hazardous area electrical equipment is required.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements
Flameproof repairable design minimizes waste and environmental impact

Warranty Information

Warranty information available upon request from Ausproof.

Available Now

The Ausproof PS 660V 150A Gland Bracket is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
