PS 660V 150A Receptacle Kit | IP55 Rated | Quick Release & Flameproof Design | Ausproof
The PS 660V 150A receptacle kit features IP55 rating and quick release functionality—ideal for mining and hazardous environments. Built for safety and durability, with flameproof design and stainless steel construction for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

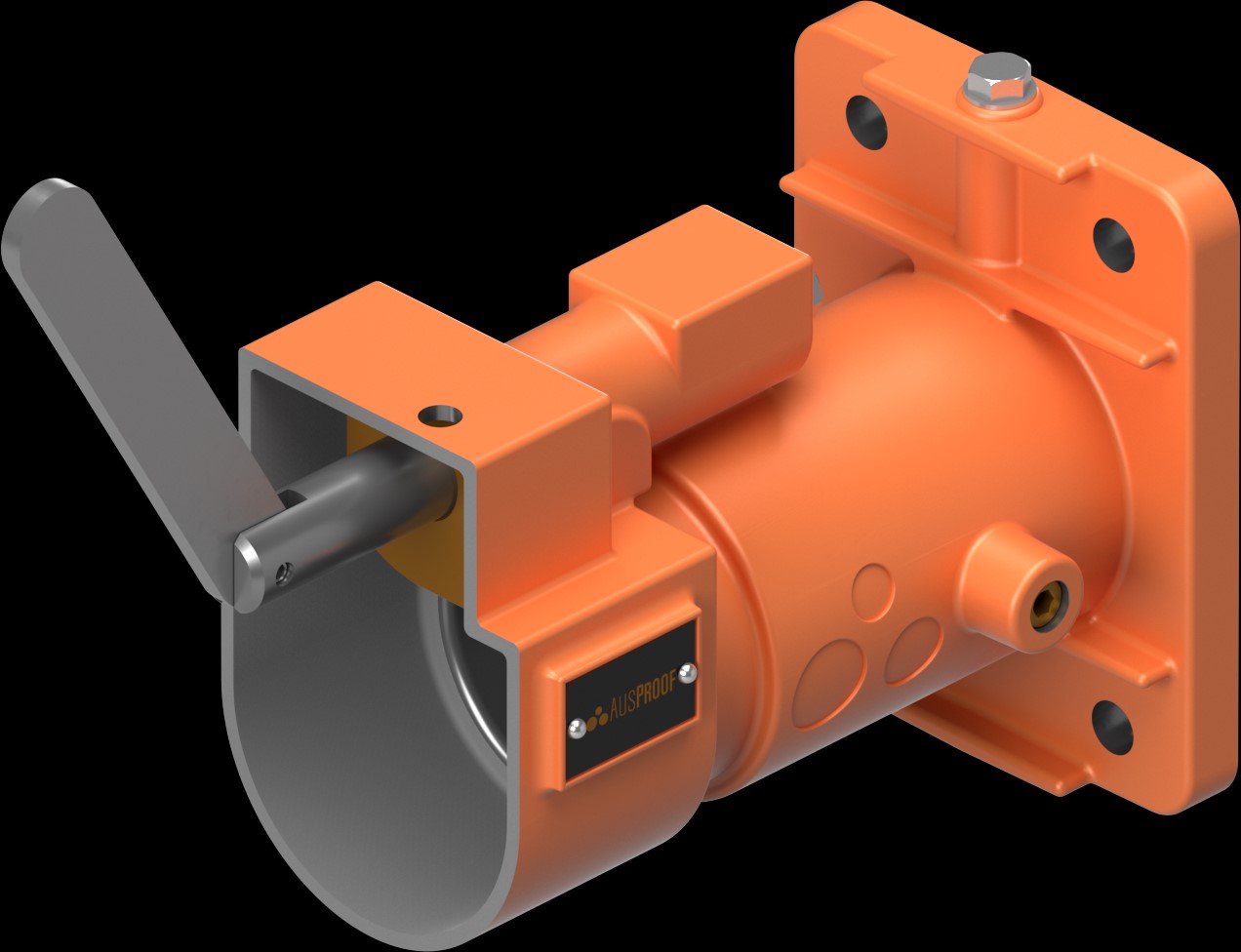

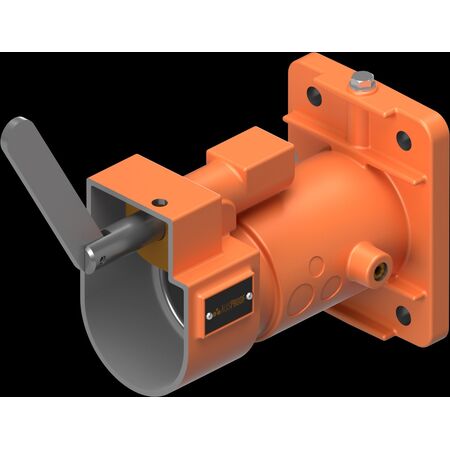

Product Name/Title: PS 660V 150A RECEP Orange Body KIT
Brand: Ausproof
SKU: RS1866
Alternatively Known As: Ex-certified 150A plug and receptacle, Flameproof electrical connector, Mining plug and socket, Hazardous area electrical connector
Technical Specifications
- Voltage: 660 to 1,100V
- Current: 150A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 12.5kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 4.0kA for 0.2 seconds
- AC HV Withstand (Phase): 4.2kV for one minute
- AC HV Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: 150A
- Plug Weight: 4.1kg
- Receptacle Weight: 7.9kg
- Dimensions (H x L x W): 150mm x 300mm x 250mm
- Weight: 7.9 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced with hazardous area electrical equipment to ensure compliance and safety.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements.
- Flameproof design enhances safety, reducing risk of environmental hazards.
Warranty Information
Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.
Available Now
The Ausproof PS 660V 150A Receptacle Orange Body Kit is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
