PS Comp Ring Kit 10-15 mm | 660-1100V | IP55 Ingress Protection | Quick Release by Ausproof
PS Comp Ring Kit 10-15 mm with 660-1100V voltage and IP55 ingress protection—ideal for mining and hazardous environments. Built for commercial applications, featuring quick release and durable stainless steel construction for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

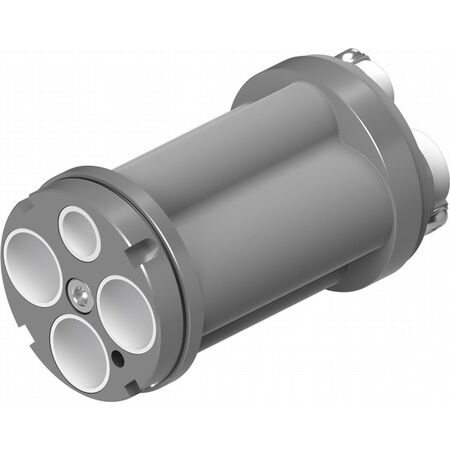

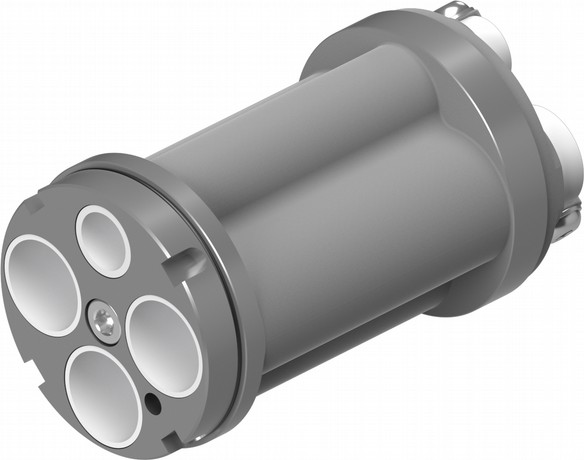

Product Name/Title: PS Comp Ring Kit 10 - 15 mm
Brand: Ausproof
SKU: RS2216
Alternatively Known As: PS Range Comp Ring Kit, Flameproof Comp Ring Kit, Ex-certified Comp Ring Kit, Mining Electrical Comp Ring
Technical Specifications
- Voltage: 660 to 1,100V
- Current: 150A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 12.5kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 4.0kA for 0.2 seconds
- AC HV Withstand (Phase): 4.2kV for one minute
- AC HV Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: 150A
- Compliant to: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 150mm x 150mm x 150mm
- Weight: 7.9 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover

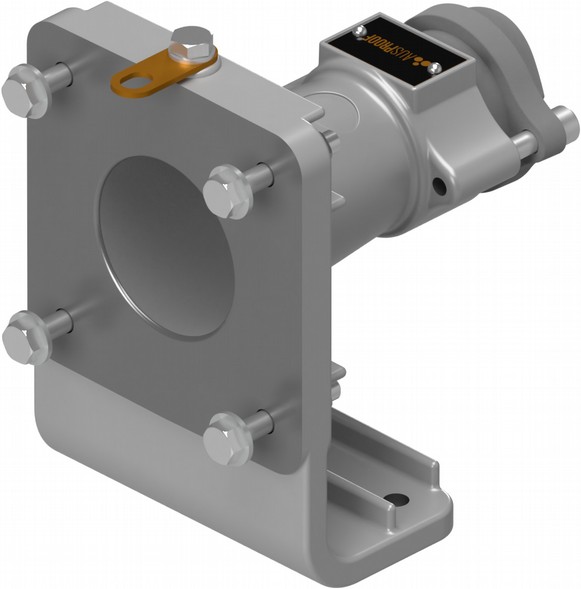

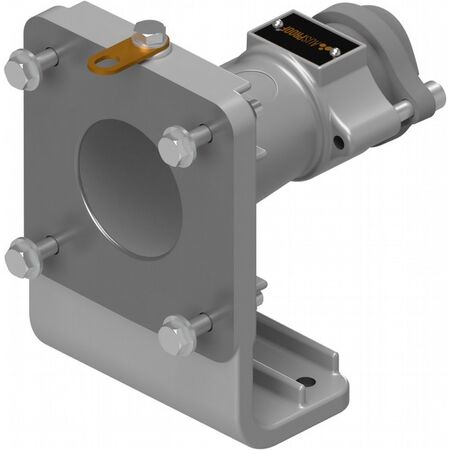

- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with Ex-certified equipment and hazardous area installations.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements.
- Flameproof design enhances safety, reducing risk of environmental hazards.
- Easy on-site repair reduces waste and downtime.
Warranty Information
Standard manufacturer warranty applies. Please contact Ausproof for detailed warranty terms.
Available Now
The Ausproof PS Comp Ring Kit 10 - 15 mm is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
