PS Comp Ring Kit 20-25 mm | 660-1100V | IP55 Ingress Protection | Quick Release by Ausproof
PS Comp Ring Kit 20-25 mm with 660-1100V voltage range and IP55 ingress protection—ideal for mining and tunnelling applications. Built for commercial use, with quick release feature and durable stainless steel construction for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

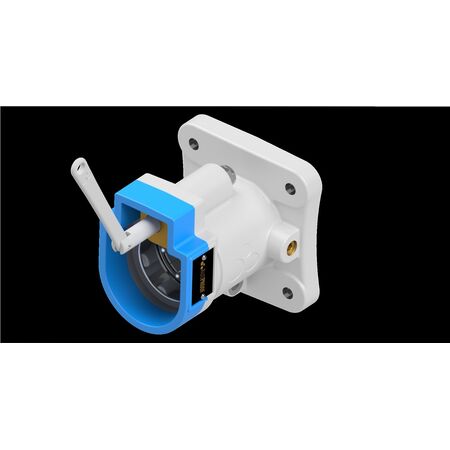

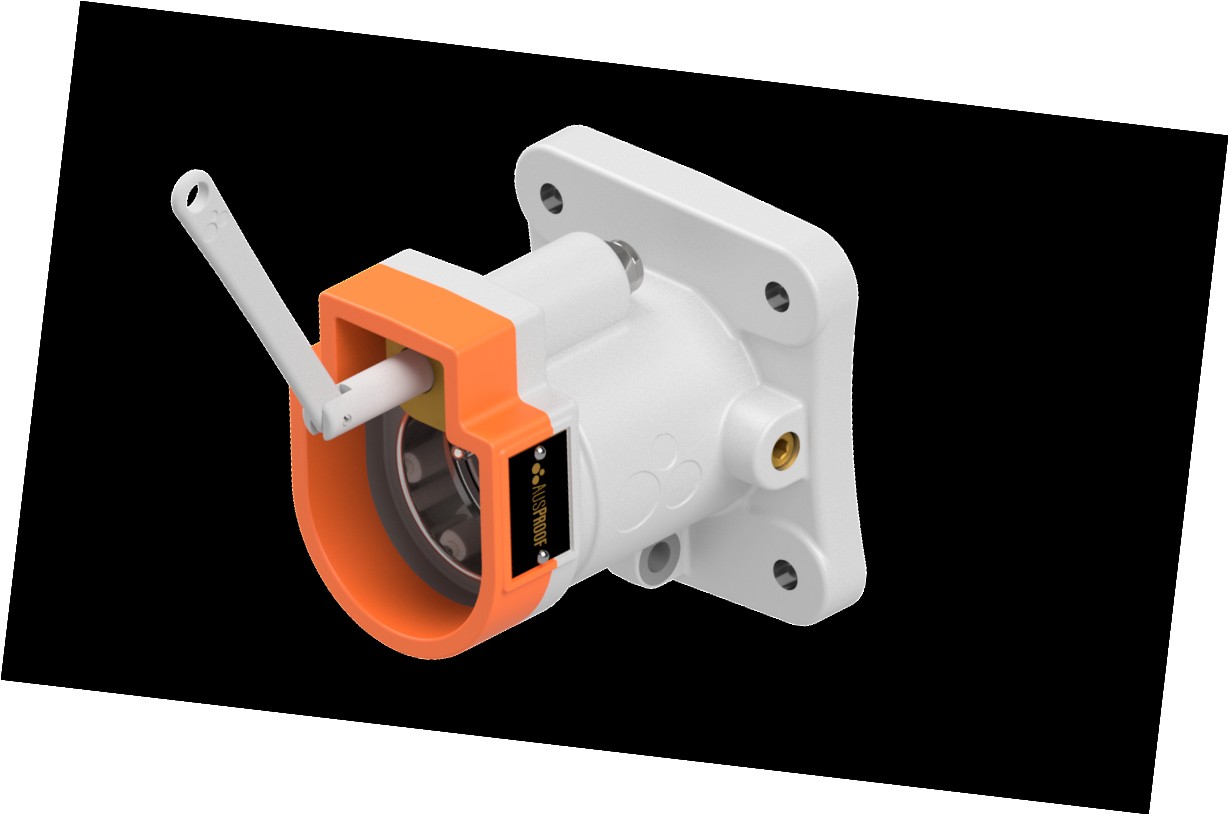

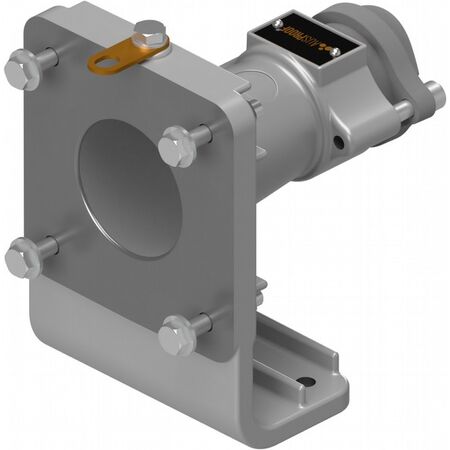

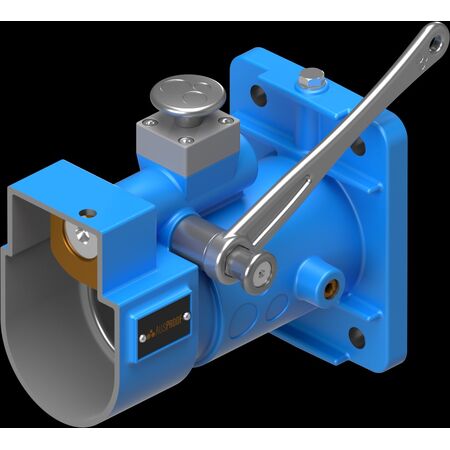

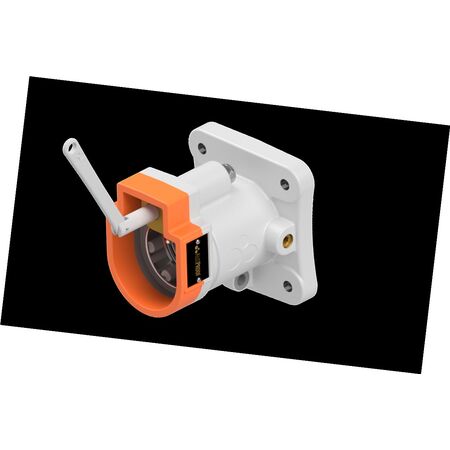

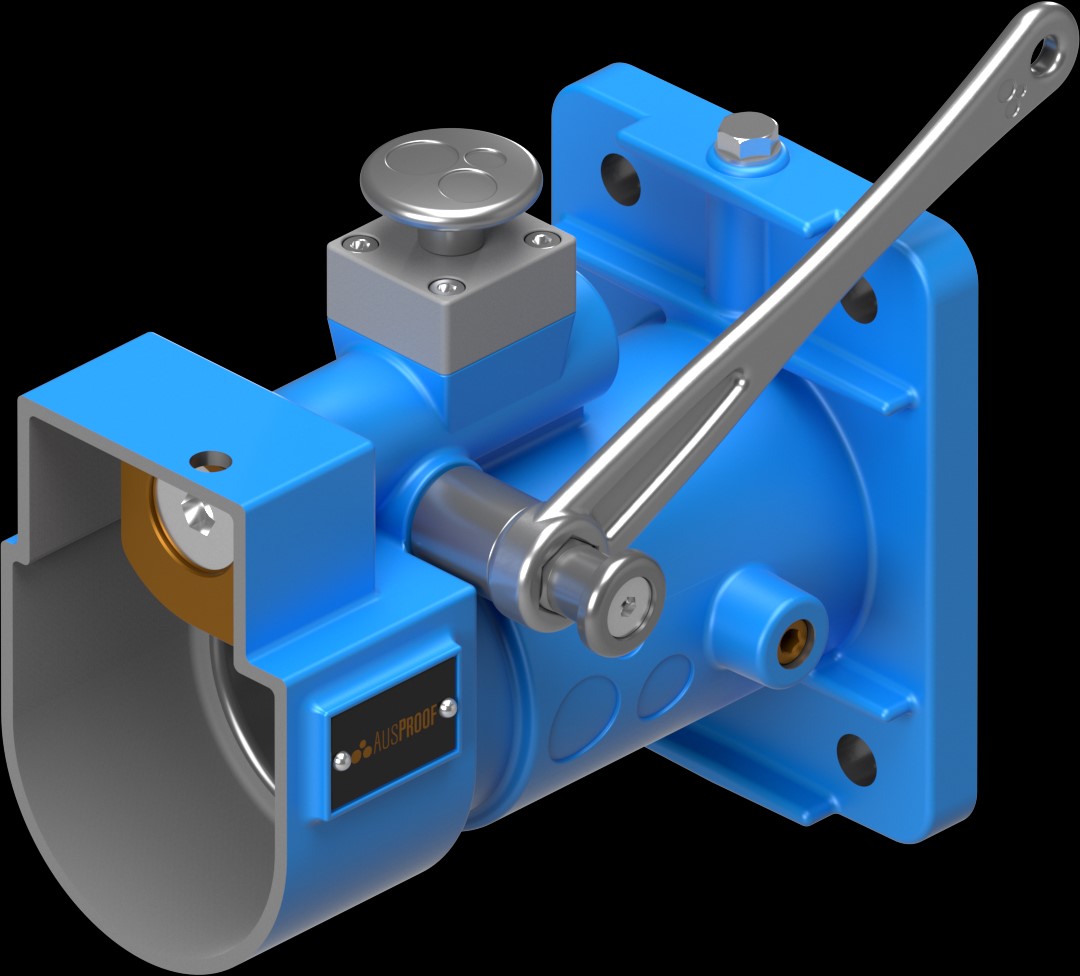

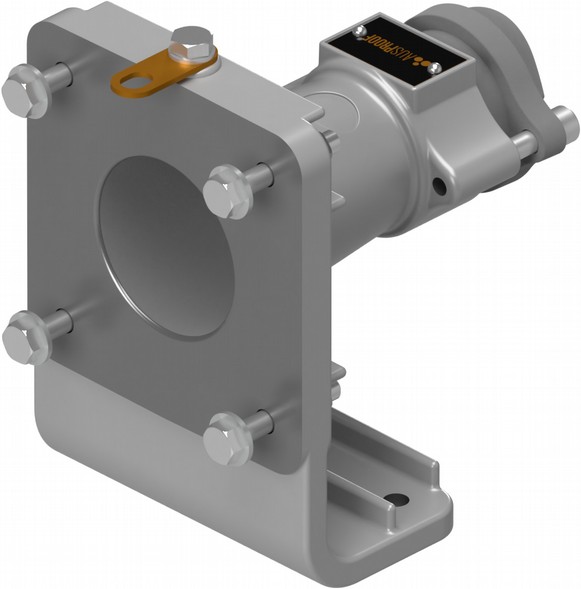

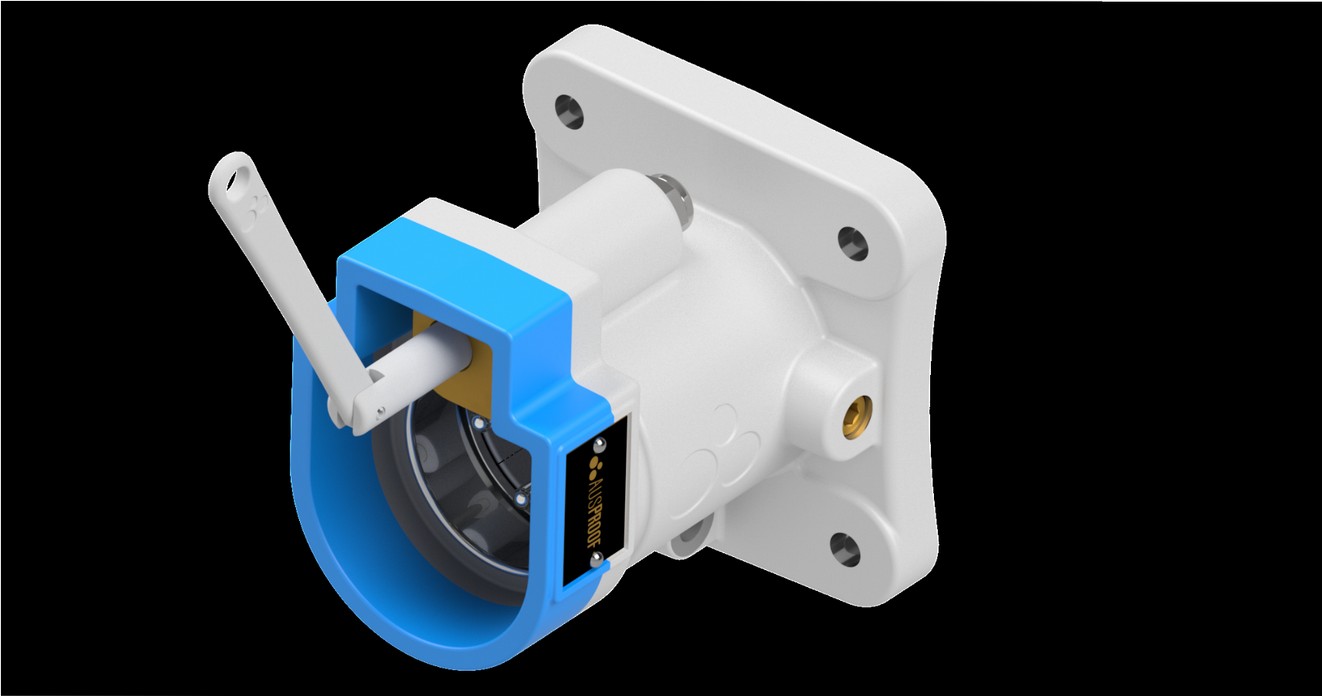

Product Name/Title: PS Comp Ring Kit 20 - 25 mm
Brand: Ausproof
SKU: RS2218
Alternatively Known As: PS Range Flameproof Plug and Receptacle Kit, Ex-certified Electrical Connector Kit, Mining Grade Electrical Connector
Technical Specifications
- Voltage: 660 to 1,100 V
- Current: 150 A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 12.5kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 4.0kA for 0.2 seconds
- AC High Voltage Withstand (Phase): 4.2kV for one minute
- AC High Voltage Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: 150A
- Compliant to: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 150mm x 250mm x 250mm
- Weight: 7.9 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with Ex-certified equipment and hazardous area installations.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements, minimizing waste.
- Flameproof design enhances safety, reducing risk of environmental hazards from electrical faults.
Warranty Information
Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.
Available Now
The Ausproof PS Comp Ring Kit 20 - 25 mm is available now for immediate purchase. Ideal for mining, tunnelling, and commercial hazardous environment applications.
