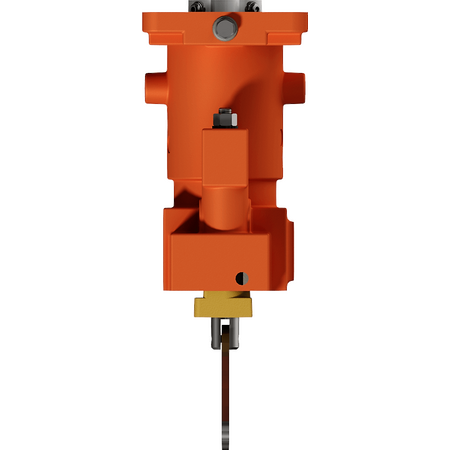

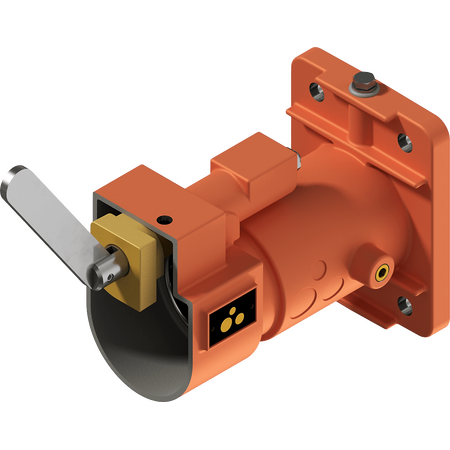

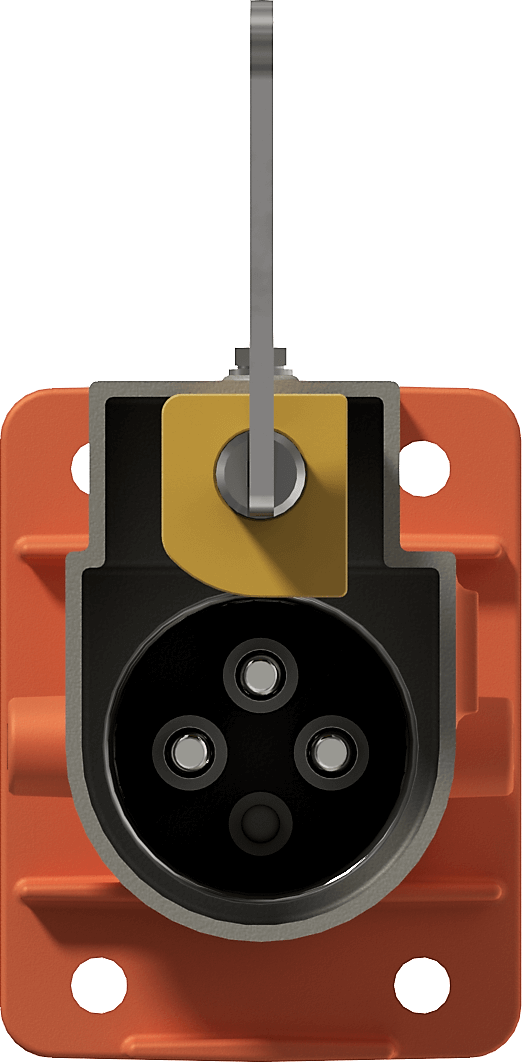

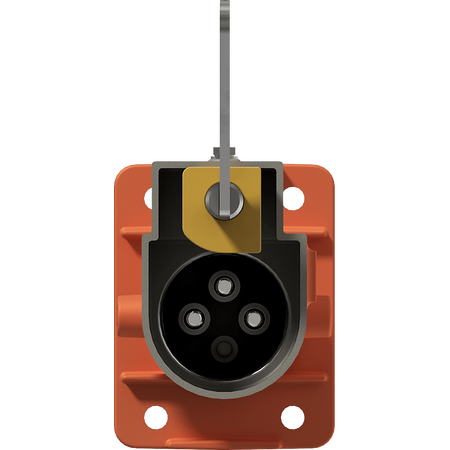

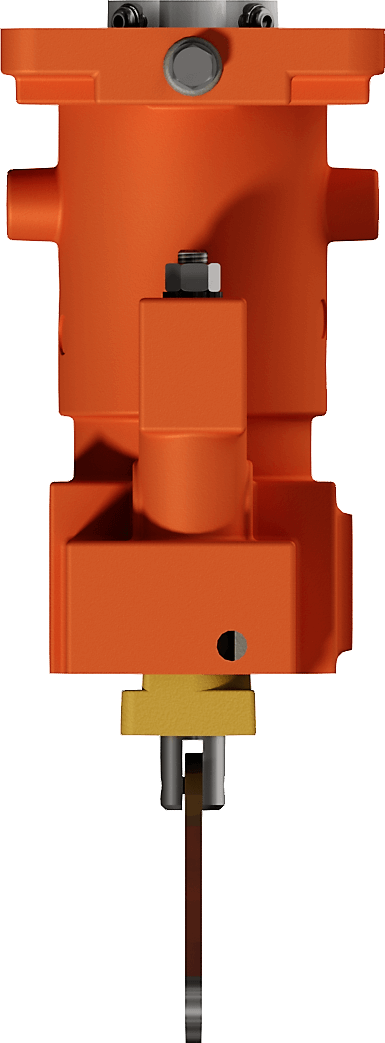

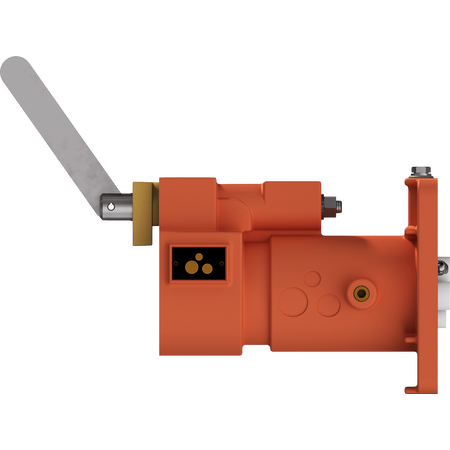

PS REC Contact Crimp Pins 95mm² | 150A Current | IP55 Ingress Protection | Stainless Steel by Ausproof

BRAND: Ausproof

SKU: RS1616

$195.30 List price: $242.50

+ −

30 Days Return Delivery Options

PS REC Contact Crimp Pins with 150A current rating and IP55 ingress protection—ideal for mining and commercial applications. Built for hazardous environments, these stainless steel connectors ensure reliable performance and easy termination.

Description

Product Name/Title: PS REC Contact Crimp Pins 95mm^2

Brand: Ausproof

SKU: RS1616

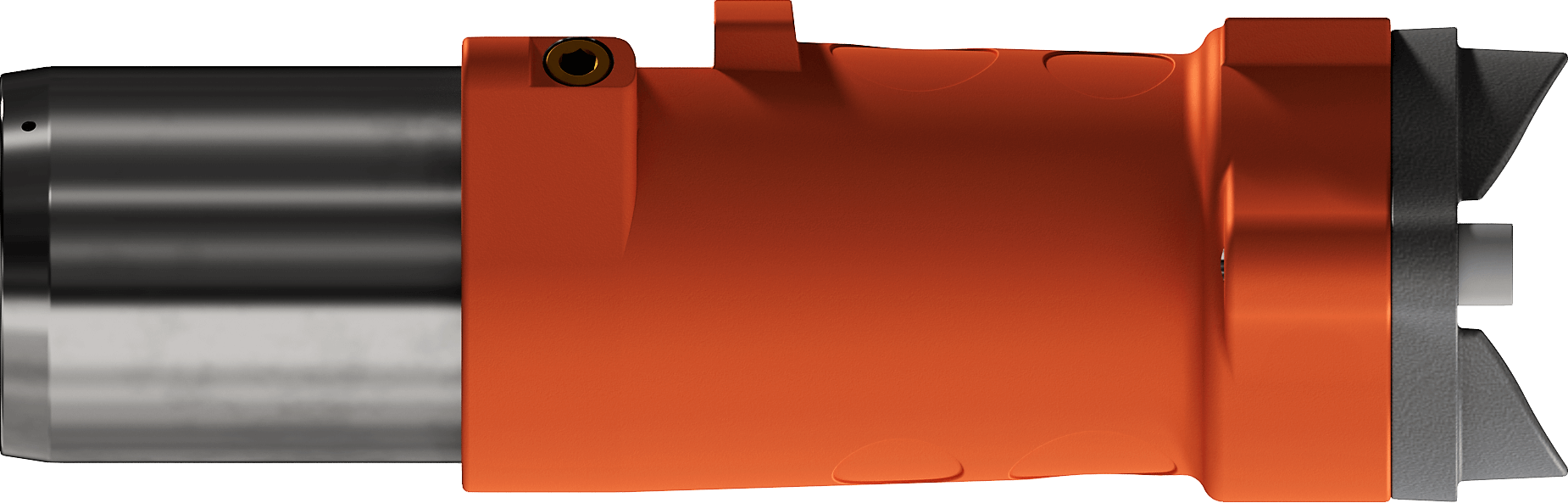

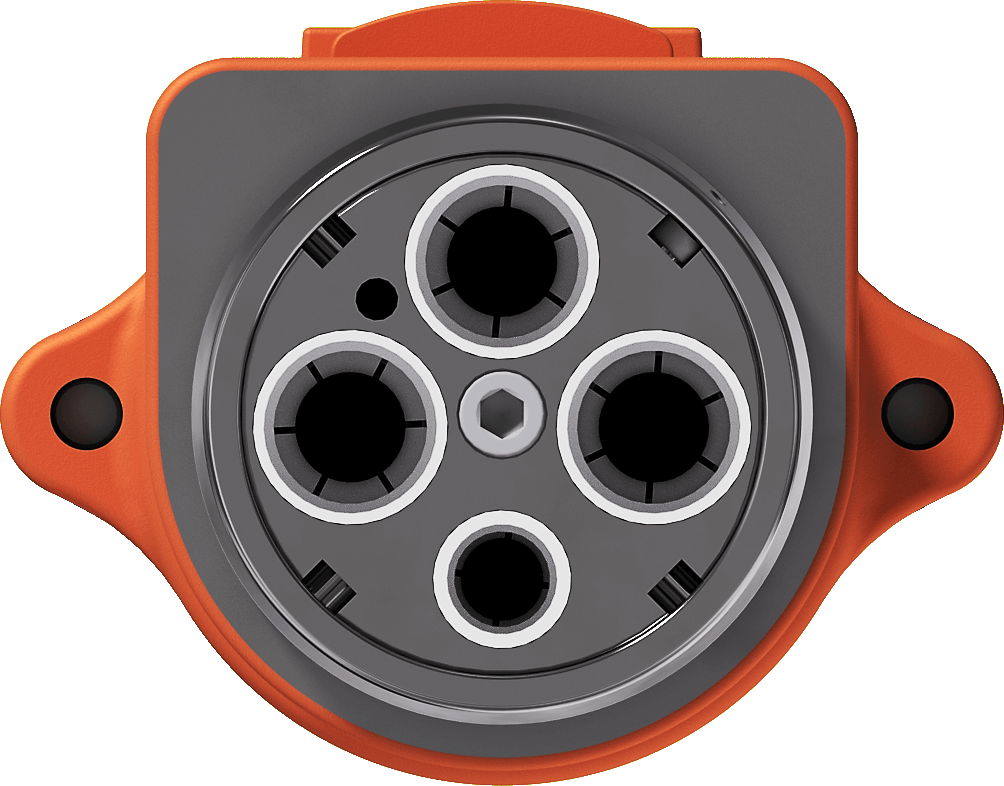

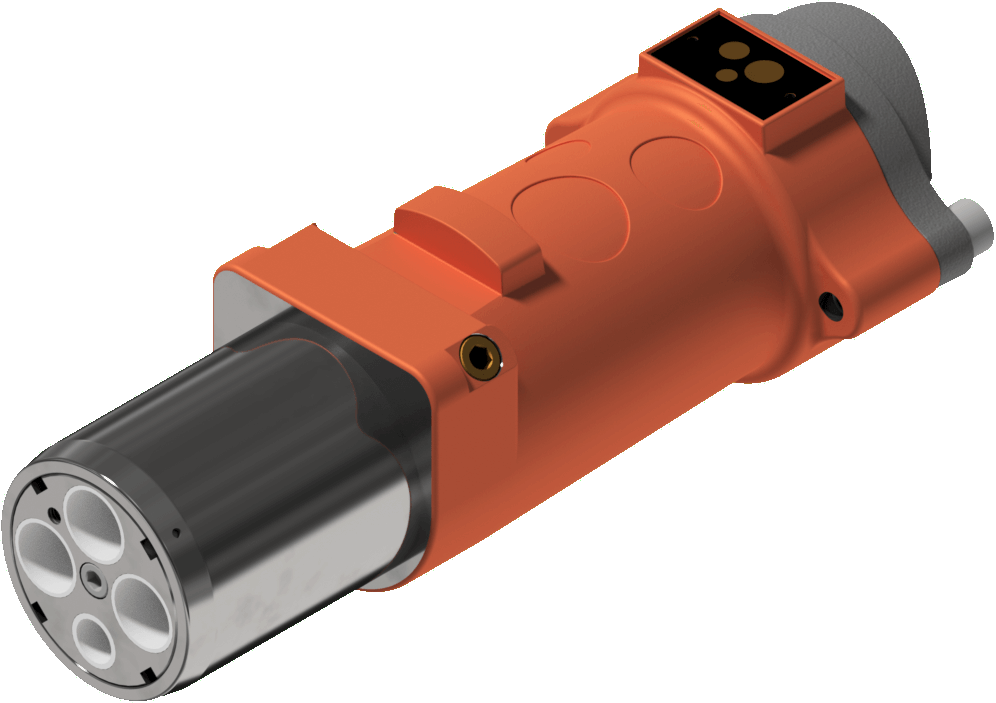

Alternatively Known As: PS Range Contact Crimp Pins, 150A Ex Plugs and Receptacles, Flameproof Electrical Connectors

Technical Specifications

Voltage: 660 to 1,100V
Current: 150A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 Tests of 12.5kA for 0.2 seconds
Through Fault Current (Earth): 2 Tests of 4.0kA for 0.2 seconds
AC HV Withstand (Phase): 4.2kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: 150A
Dimensions (H x L x W): 200mm x 300mm x 150mm
Weight: 7.9 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover

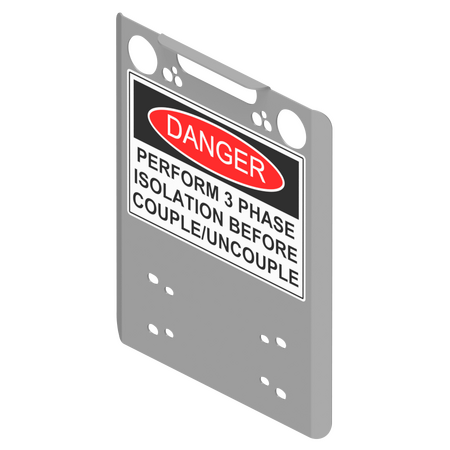

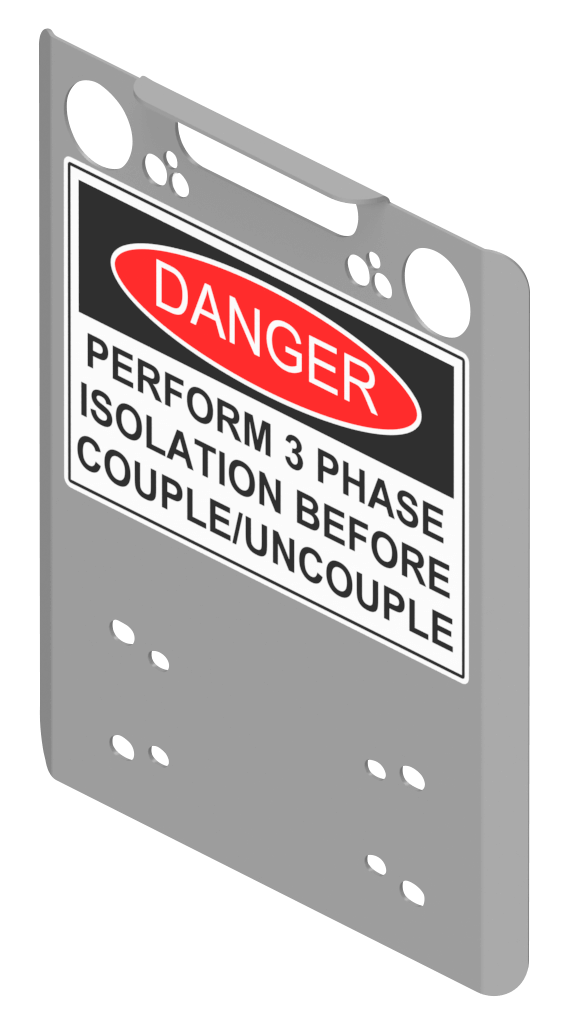

Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation should be performed by qualified electricians trained in hazardous area electrical equipment installation to ensure safety and compliance.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Flameproof repairable design minimizes waste and environmental impact.

Warranty Information

Warranty details available upon request from Ausproof, typically covering manufacturing defects.

Available Now

The Ausproof PS REC Contact Crimp Pins 95mm² are available now for immediate purchase. Ideal for mining, tunnelling, and commercial hazardous environment applications.
