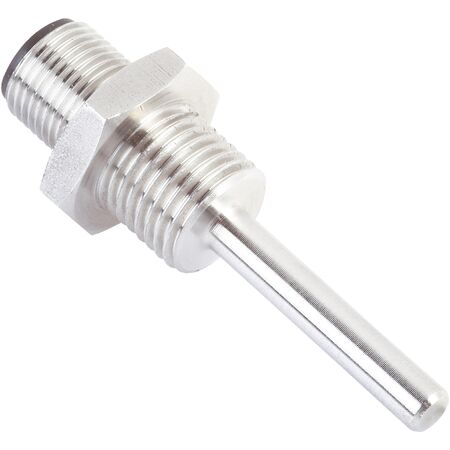

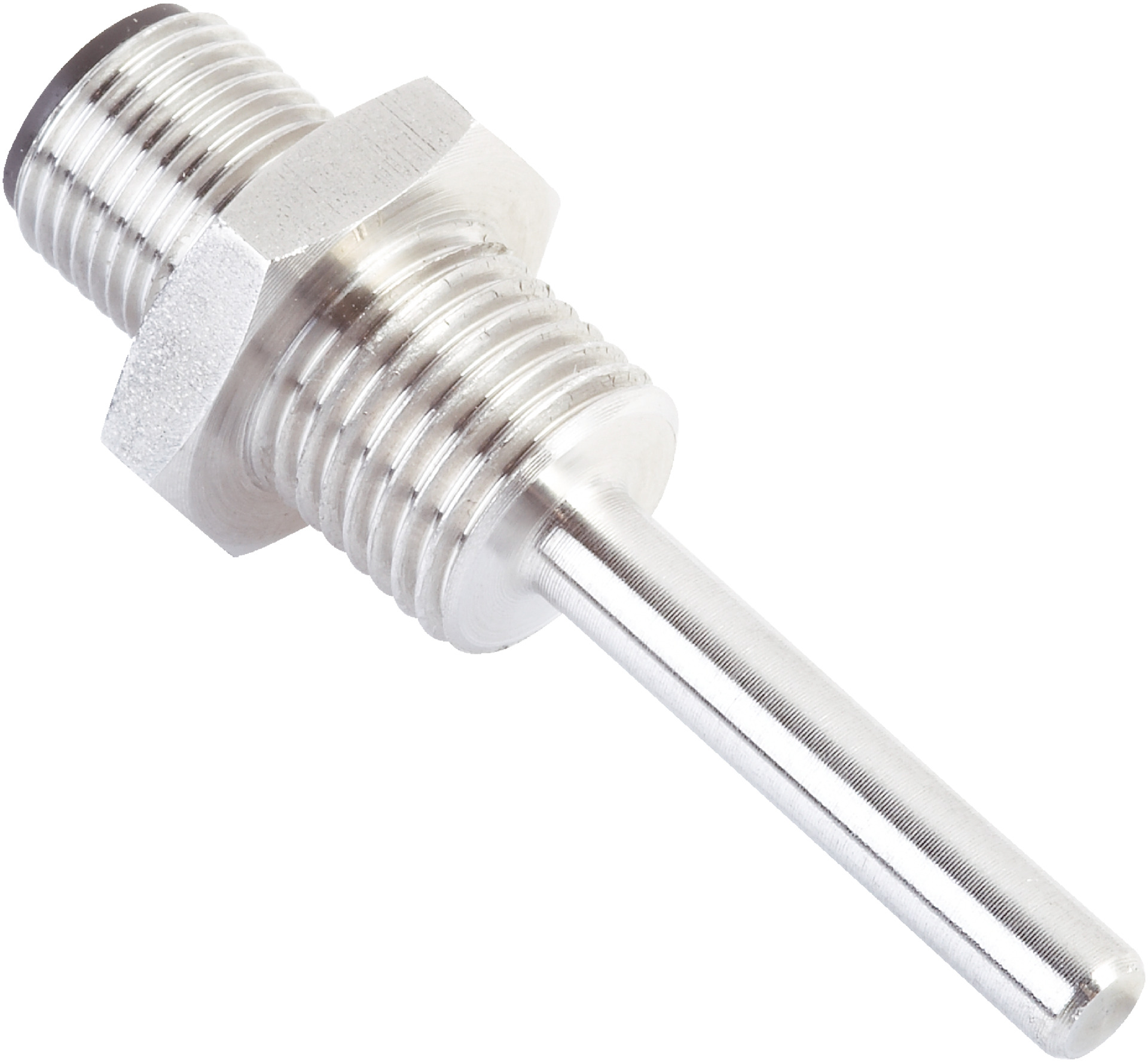

Pt100 Temperature Sensor | -30°C to +130°C | IP67 Rated | Stainless Steel | by SICK
The Pt100 Temperature Sensor is designed for precise industrial temperature measurement, featuring a measuring range from -30°C to +130°C and an IP67 rated enclosure for dust and water protection. With a fast response time and durable stainless steel construction, it's perfect for automation systems and harsh environments, ensuring reliable performance in process control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: –30 °C to +130 °C
- Output signal: Pt100, 2-wire
- Process connection: Thread ¼'' NPT
- Insertion length: 40 mm
- Probe diameter: 5 mm
- Wetted parts material: Stainless steel 1,4305
- Housing material: Stainless steel 1,4305
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67
- Measuring current: 0.3 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Sensor accuracy: Class B according to IEC 60751
- Response time: t50 ≤ 2.5 s, t90 ≤ 6 s
- Ambient temperature range: –40 °C to +100 °C
- Storage temperature range: –40 °C to +85 °C
- Shock resistance: 500 g (IEC 60751)
- Vibration resistance: 3 g (IEC 60751)
- Dimensions (H x L x W): 40mm x 60mm x 12mm
- Weight: 0.1 kg
Key Features
- Measuring range from –30 °C to +130 °C
- Output signal: Pt100, 2-wire
- Thread ¼'' NPT process connection
- Insertion length of 40 mm and probe diameter of 5 mm
- Stainless steel 1,4305 wetted parts and housing
- M12 round connector, 4-pin
- IP67 rated enclosure for dust and water protection
- Sensor accuracy Class B according to IEC 60751
- Fast response time: t50 ≤ 2.5 s, t90 ≤ 6 s
- Electrical safety: Protection class III, dielectric strength 500 V AC
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial temperature sensors and electrical safety standards.
Applications
- Industrial temperature measurement in process control
- Automation systems requiring precise temperature sensing
- Harsh environments needing IP67 rated sensors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Energy-efficient sensor design minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK TSP-1PAN40405MZ temperature sensor is available for immediate purchase, ideal for industrial and automation temperature measurement applications.
