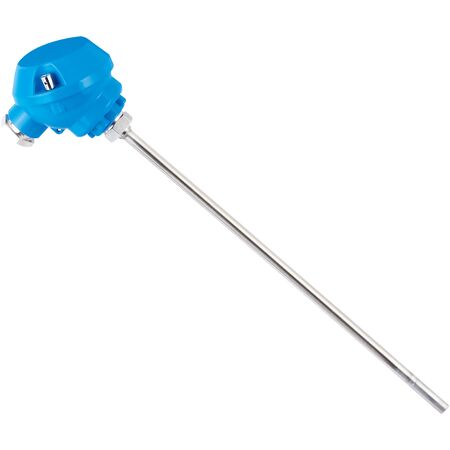

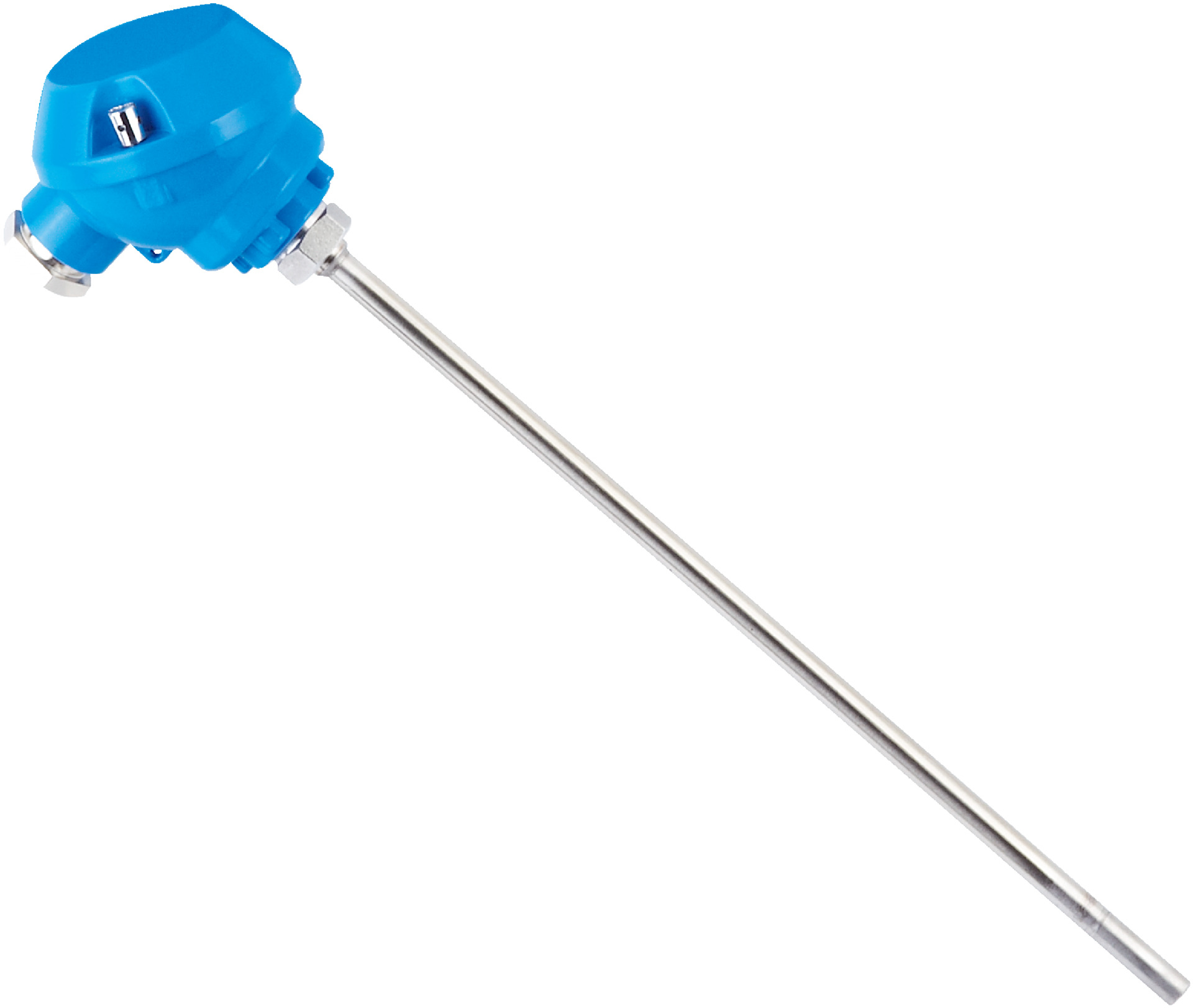

Pt100 Temperature Sensor | -50°C to +150°C Range | 4-Wire Output | IP65 Rated | by SICK
The Pt100 Temperature Sensor is designed for precise industrial temperature measurement, featuring a measuring range from -50°C to +150°C and a durable stainless steel construction. With a fast response time and IP65 enclosure rating, it's perfect for process control systems and environmental monitoring, ensuring reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +150 °C
- Sensor element: Pt100
- Output signal: Pt100, 4-wire
- Insertion length: 25 mm
- Probe diameter: 3 mm
- Wetted parts: Stainless steel 1.4571
- Housing material: Aluminum
- Connection type: Cable gland M16 x 1.5
- Enclosure rating: IP65
- Measuring current: 0.3 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Response time: t50 ≤ 5.8 s, t90 ≤ 15.5 s
- Shock resistance: 500 g
- Vibration resistance: 3 g
- Initialization time: < 1 ms
- CE conformity: 2004/108/EC, EN 61326-2-3
- Dimensions (H x L x W): 25mm x 100mm x 25mm
- Weight: 0.155 kg
Key Features
- Measuring range from -50 °C to +150 °C
- Pt100 sensor element with 4-wire output signal
- Stainless steel 1.4571 wetted parts for durability
- Aluminum housing with IP65 enclosure rating
- Fast response time: t50 ≤ 5.8 s, t90 ≤ 15.5 s
- Electrical safety protection class III with 500 V AC dielectric strength
- Shock resistance up to 500 g and vibration resistance of 3 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and temperature sensor systems to ensure proper connection and safety compliance.
Applications
- Industrial temperature measurement
- Process control systems
- Environmental monitoring
- Automation and manufacturing
Standards & Compliance
- AS/NZS 60335 – Safety of household and similar electrical appliances
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Energy-efficient sensor operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK TBT-1PAZZ0253GZ Pt100 Temperature Sensor is available for immediate purchase, ideal for industrial and process temperature measurement applications.
