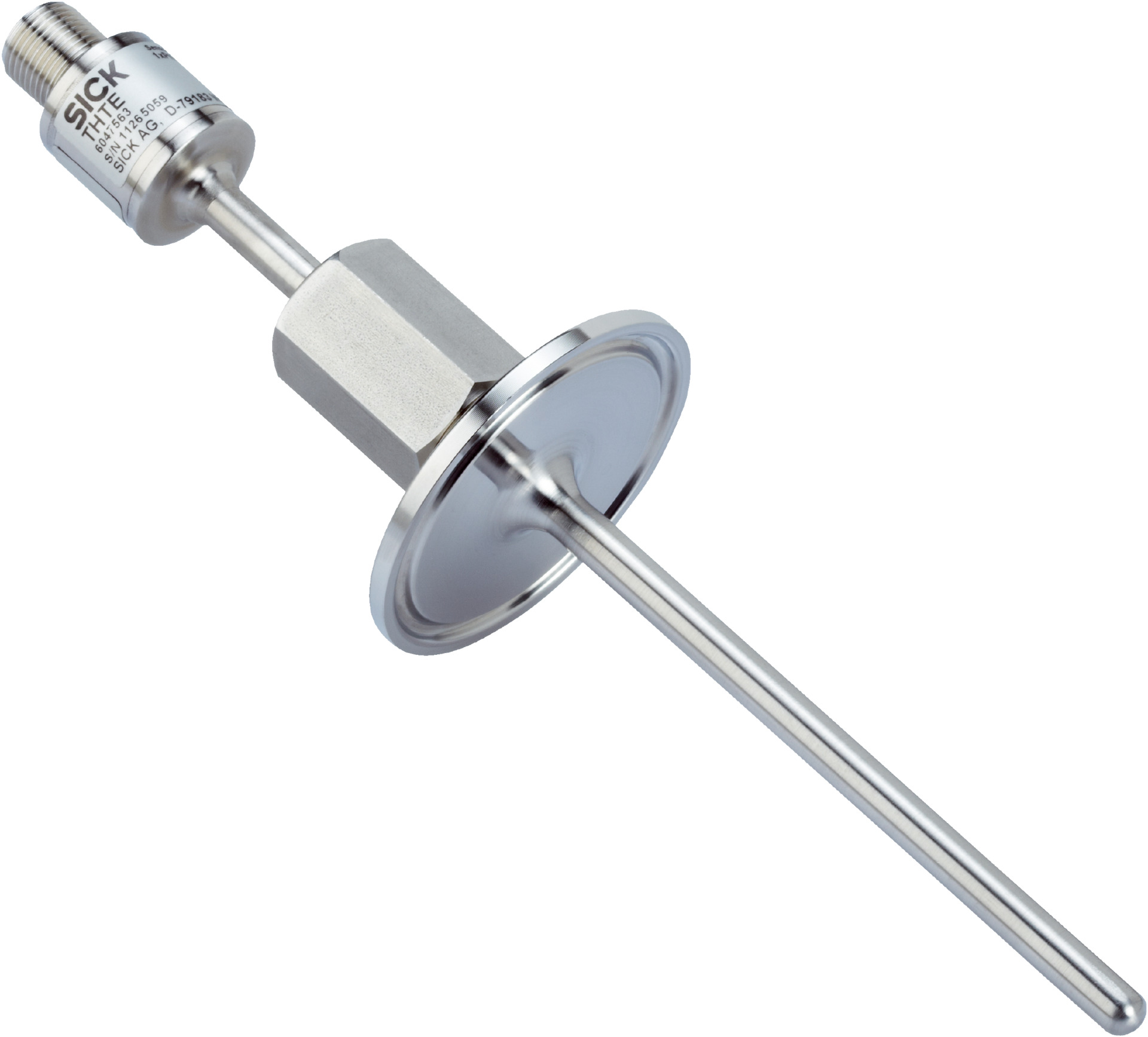

Pt100 Temperature Sensor | -50°C to +150°C Range | Hygienic DIN 11851 Connection | IP67 & IP69 Rated | by SICK
The Pt100 Temperature Sensor is designed for precise industrial temperature measurement, featuring a measuring range from -50°C to +150°C and a hygienic DIN 11851 connection. Built with durable stainless steel and IP67/IP69 ratings, it ensures reliable performance in food, beverage, and chemical applications, making it ideal for process engineering and monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +150 °C
- Sensor element: Pt100, 4-wire
- Process connection: Conical coupling (DIN 11851) DN 40 with union nut
- Insertion length: 100 mm, Probe diameter: 6 mm
- Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
- Maximum process pressure: ≤ 40 bar
- Housing material: Stainless steel (CrNi)
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67 and IP69
- Measuring current: 0.1 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Response time: t50 ≤ 4.7 s, t90 ≤ 12.2 s
- Shock resistance: 50 g, 6 ms
- Operating ambient temperature: -40 °C to +85 °C
- Storage temperature: -40 °C to +85 °C
- Relative humidity: ≤ 100%
- Dimensions (H x L x W): 100mm x 100mm x 40mm
- Weight: 0.5 kg
Key Features
- Measuring range from -50 °C to +150 °C
- Pt100 sensor element with 4-wire output signal for high accuracy
- Conical coupling (DIN 11851) DN 40 with union nut for hygienic process connection
- Stainless steel 1.4435 / 316L wetted parts with surface roughness Ra ≤ 0.8 µm
- IP67 and IP69 rated enclosure for protection against dust and water ingress
- Electrical safety protection class III with dielectric strength of 500 V AC
- Fast initialization time of maximum 4 seconds
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial temperature measurement in process engineering
- Food and beverage industry requiring hygienic sensor connections
- Chemical and pharmaceutical process monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction ensures long service life reducing waste
- High accuracy sensor reduces energy waste by enabling precise process control
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

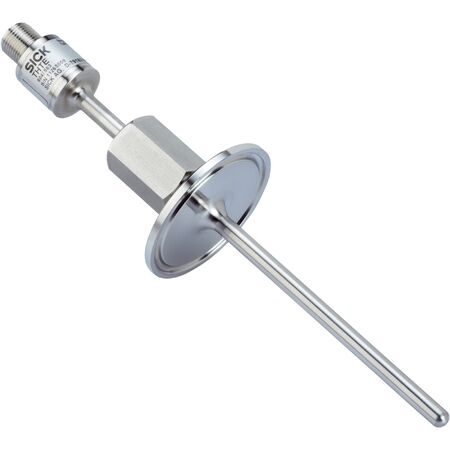

The SICK THTE-1PA541006MZ Pt100 Temperature Sensor is available for immediate purchase, ideal for hygienic industrial temperature measurement applications.
