Pt100 Temperature Sensor | -50°C to +150°C Range | IP67 Rated | High Accuracy Class A | by SICK
The Pt100 Temperature Sensor is designed for precise industrial temperature measurement, featuring a measuring range from -50°C to +150°C and a robust aluminum housing with an IP67 enclosure rating. Ideal for process control systems and environmental monitoring, this sensor ensures high accuracy with a Class A rating according to IEC 60751, making it perfect for laboratory and research applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +150 °C
- Sensor element: Pt100
- Output signal: Pt100, 4-wire
- Insertion length/diameter of probe: 25 mm / 3 mm
- Wetted parts: Stainless steel 1.4571
- Housing material: Aluminum
- Connection type: Cable gland M16 x 1.5
- Enclosure rating: IP67
- Measuring current: 0.3 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 5.8 s, t90 ≤ 15.5 s
- Shock resistance: 500 g
- Vibration resistance: 3 g
- Initialization time: < 1 ms
- CE conformity: 2004/108/EC, EN 61326-2-3
- Dimensions (H x L x W): 10mm x 25mm x 10mm
- Weight: 0.155 kg
Key Features
- Measuring range from -50 °C to +150 °C
- Pt100 sensor element with 4-wire output signal
- High accuracy Class A according to IEC 60751
- Robust aluminum housing with IP67 enclosure rating
- Stainless steel wetted parts (1.4571) for durability
- Fast response time: t50 ≤ 5.8 s, t90 ≤ 15.5 s
- Electrical safety protection class III with 500 V AC dielectric strength
- Shock resistance up to 500 g and vibration resistance of 3 g
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper sensor integration and electrical safety compliance.
Applications
- Industrial temperature measurement
- Process control systems
- Environmental monitoring
- Laboratory and research applications
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel and aluminum construction reduces waste and extends product life
- High accuracy reduces energy waste by enabling precise temperature control
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

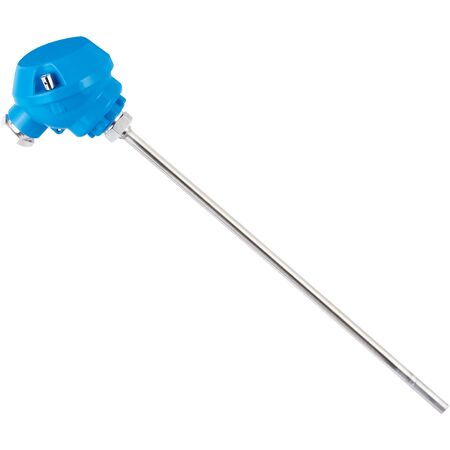

The SICK TBT-1PAZZ0253PZ Pt100 Temperature Sensor Probe is available for immediate purchase, ideal for industrial and process temperature measurement applications.
