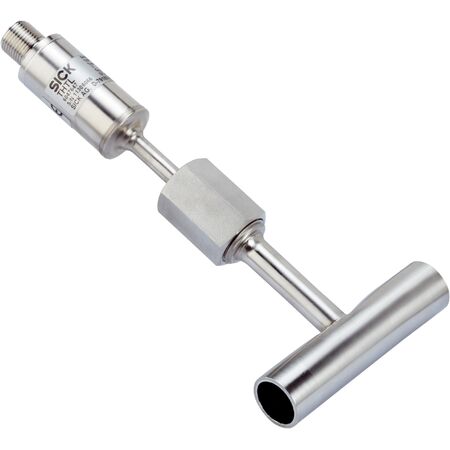

Pt100 Temperature Sensor | -50°C to +150°C Range | IP67 & IP69 Rated | Stainless Steel Wetted Parts | by SICK
The Pt100 Temperature Sensor is designed for precise industrial temperature measurement, featuring a measuring range from -50°C to +150°C and a robust stainless steel construction. Ideal for applications in pipelines and process control, this sensor ensures high accuracy and fast response times, making it perfect for the chemical, pharmaceutical, and food industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +150 °C
- Sensor element: Pt100
- Output signal: Pt100, 4-wire
- Process connection: Straight pipe (DIN EN ISO 1127 and DIN 11866), row B, for welding
- Nominal width: DN 21.3
- Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
- Maximum process pressure: ≤ 25 bar
- Housing material: Stainless steel (CrNi)
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67 and IP69
- Measuring current: 0.1 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Initialization time: Max. 4 s
- Accuracy: Class A according to IEC 60751
- Transmitter accuracy: ± 0.25 K
- Response time: t50 ≤ 3.2 s, t90 ≤ 9.1 s
- Ambient temperature: -40 °C to +85 °C
- Storage and transport temperature: -40 °C to +85 °C
- Shock resistance: 50 g, 6 ms (IEC 60068-2-27)
- Relative humidity: ≤ 100%
- Dimensions (H x L x W): 150mm x 150mm x 25mm
- Weight: 0.5 kg
Key Features
- Measuring range from -50 °C to +150 °C
- Pt100 sensor element with 4-wire output signal
- Stainless steel 1.4435 / 316L wetted parts with Ra ≤ 0.8 µm
- Pressure resistance up to 25 bar at room temperature
- IP67 and IP69 rated enclosure for robust protection
- M12 round connector, 4-pin connection
- Class A accuracy according to IEC 60751
- Fast response time: t50 ≤ 3.2 s, t90 ≤ 9.1 s
- Electrical safety protection class III with dielectric strength 500 V AC
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial temperature sensors and electrical safety standards.
Applications
- Industrial temperature measurement in pipelines
- Process control in chemical and pharmaceutical industries
- Monitoring temperature in food and beverage production
- Use in environments requiring hygienic and corrosion-resistant sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- High accuracy reduces energy waste by enabling precise temperature control
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK THTL-1PASB0213MZ Pt100 Temperature Sensor is available for immediate purchase, ideal for industrial and process temperature measurement applications.
