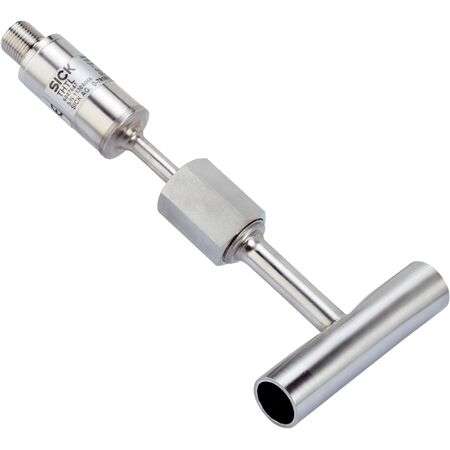

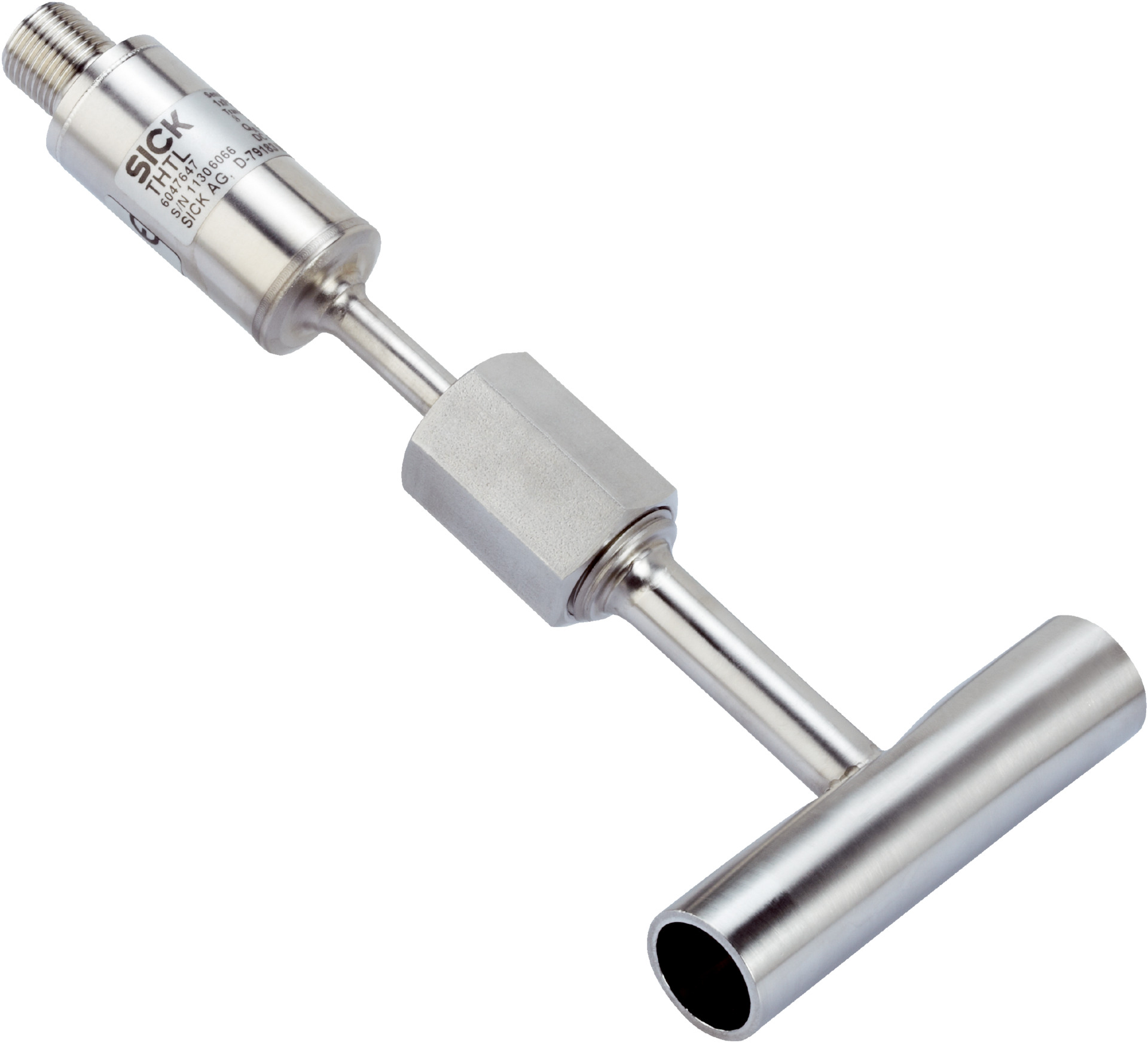

Pt100 Temperature Sensor | -50°C to +150°C Range | IP67 & IP69 Rated | Stainless Steel Wetted Parts | by SICK
The Pt100 Temperature Sensor is designed for precise industrial temperature measurement, featuring a measuring range from -50°C to +150°C and a robust stainless steel construction. With an IP67 and IP69 rating, it ensures reliable performance in harsh environments, making it ideal for process monitoring and environmental sensing in manufacturing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +150 °C
- Sensor element: Pt100, 4-wire output
- Process connection: Spare sensor without process connection
- Nominal width: DN 21.3
- Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
- Maximum process pressure: ≤ 25 bar
- Housing material: Stainless steel (CrNi)
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67 and IP69
- Measuring current: 0.1 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Initialization time: Max. 4 seconds
- Accuracy: Class A according to IEC 60751
- Transmitter accuracy: ± 0.25 K
- Response time: t50 ≤ 3.2 s, t90 ≤ 9.1 s
- Ambient temperature range: -40 °C to +85 °C
- Shock resistance: 50 g, 6 ms
- Dimensions (H x L x W): 100mm x 100mm x 21mm
- Weight: 0.2 kg
Key Features
- Measuring range from -50 °C to +150 °C
- Pt100 sensor element with 4-wire output signal
- Stainless steel 1.4435 / 316L wetted parts with Ra ≤ 0.8 µm
- Maximum process pressure up to 25 bar
- IP67 and IP69 rated enclosure for robust protection
- M12 round connector, 4-pin connection
- Class A accuracy according to IEC 60751
- Fast response time: t50 ≤ 3.2 s, t90 ≤ 9.1 s
- Electrical safety protection class III with dielectric strength 500 V AC
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial temperature measurement
- Process monitoring in manufacturing
- Environmental and ambient temperature sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- High accuracy reduces energy waste by enabling precise temperature control
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK THTL-1PAZZ0213MZ Pt100 Temperature Sensor is available for immediate purchase, ideal for industrial and process temperature measurement applications.
