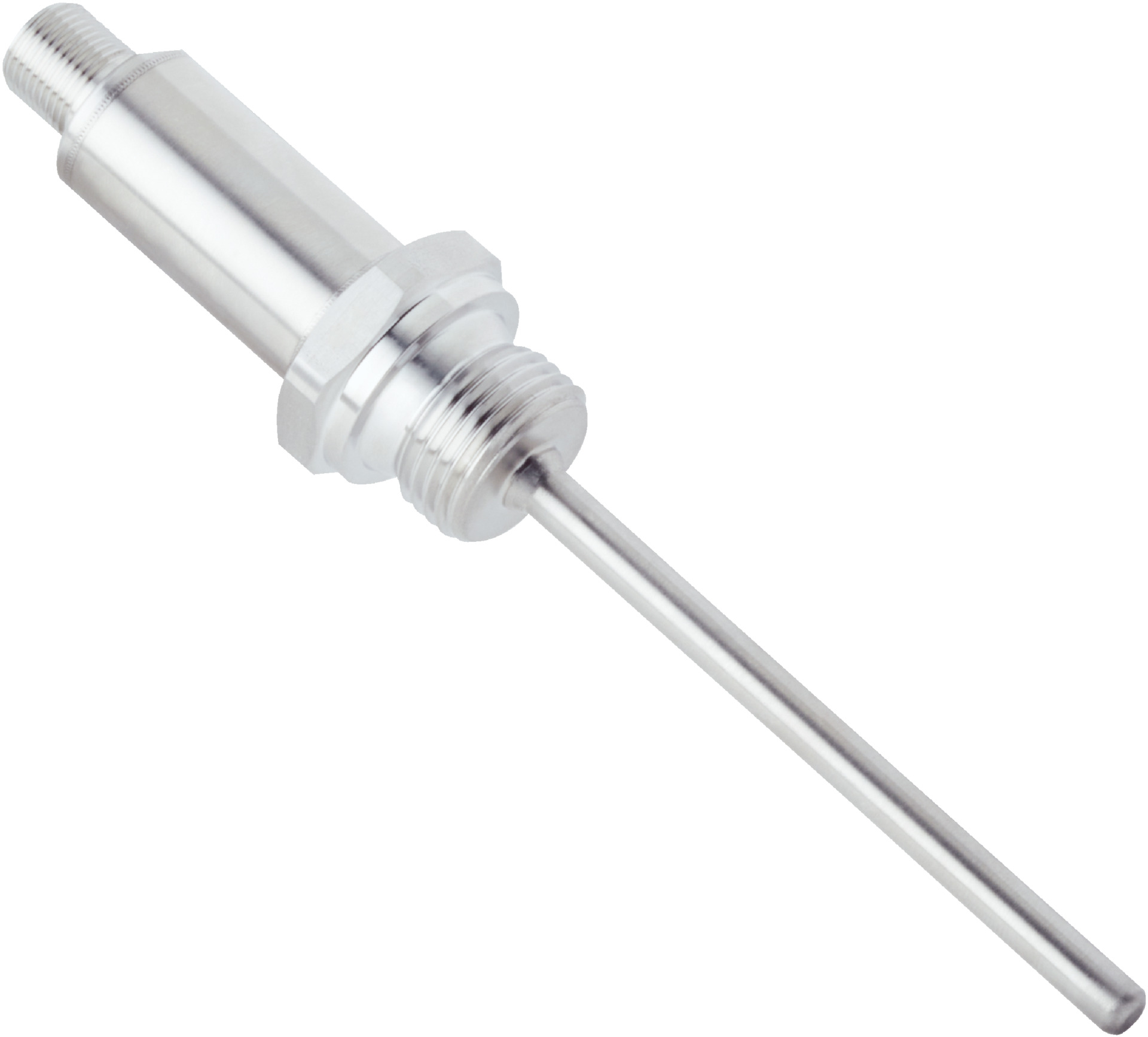

Pt100 Temperature Sensor | -50°C to +150°C Range | IP67 Rated | Stainless Steel Housing | by SICK
The Pt100 Temperature Sensor is designed for precise industrial temperature measurement, featuring a measuring range from -50°C to +150°C and a durable stainless steel housing. With an IP67 rating for dust and water protection, this sensor is perfect for process control systems and environmental monitoring, ensuring reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +150 °C
- Sensor element: Pt100
- Output signal: Pt100, 4-wire
- Process connection: Without process connection
- Insertion length: 250 mm
- Probe diameter: 6 mm
- Wetted parts material: Stainless steel 1.4571
- Housing material: Stainless steel 1.4571
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67
- Measuring current: 0.3 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Initialization time: < 10 ms
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 2.8 s, t90 ≤ 9.1 s
- Ambient temperature range: -40 °C to +125 °C
- Storage temperature range: -40 °C to +85 °C
- Shock resistance: 500 g (IEC 60751)
- Vibration resistance: 3 g (IEC 60751)
- Dimensions (H x L x W): n/a mm x 250mm x 20mm
- Weight: 0.145 kg
Key Features
- Measuring range from -50 °C to +150 °C
- Pt100 sensor element with 4-wire output signal
- Stainless steel 1.4571 housing and wetted parts for durability
- IP67 rated enclosure for protection against dust and water
- M12 round 4-pin connector for reliable electrical connection
- Fast initialization time under 10 ms
- Class A accuracy according to IEC 60751
- Shock resistance up to 500 g and vibration resistance of 3 g
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial temperature measurement
- Process control systems
- Automation and monitoring in manufacturing
- Environmental and ambient temperature sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Accurate temperature measurement supports energy-efficient process control
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

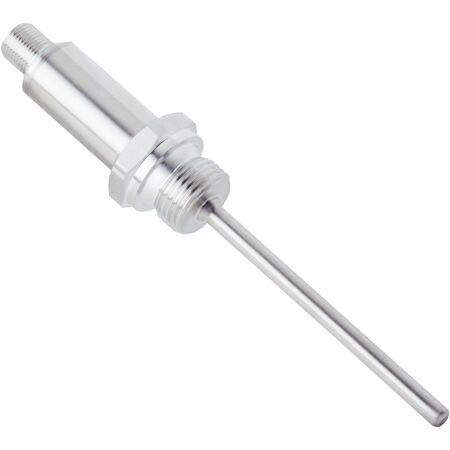

The SICK TCT-2PAZZ2506MZ Pt100 Temperature Sensor is available for immediate purchase, ideal for industrial and process temperature measurement applications.
