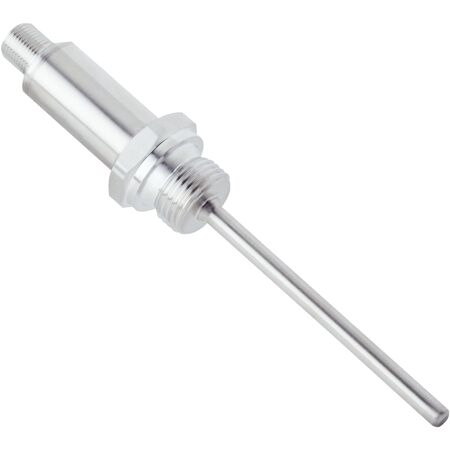

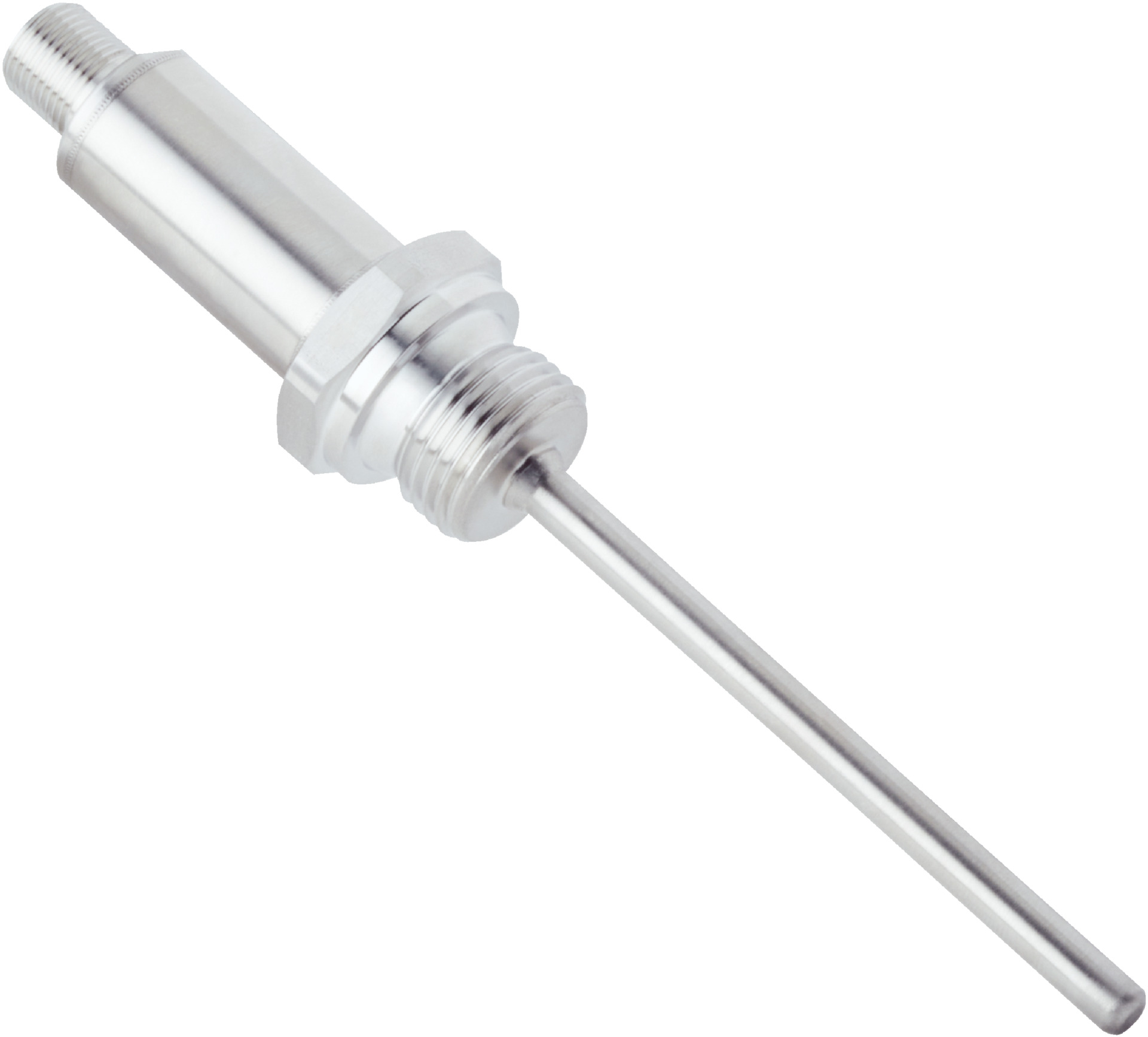

Pt100 Temperature Sensor | -50°C to +150°C Range | IP67 Rated | Stainless Steel | by SICK
The Pt100 Temperature Sensor is designed for precise industrial temperature measurement, featuring a measuring range from -50°C to +150°C and a robust stainless steel construction. Ideal for process control and monitoring in harsh environments, this sensor ensures high accuracy and fast response times, making it perfect for applications in chemical, pharmaceutical, and hydraulic systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +150 °C
- Sensor element: Pt100
- Output signal: Pt100, 4-wire
- Process connection: Thread G ½ B
- Insertion length: 25 mm
- Probe diameter: 3 mm
- Wetted parts material: Stainless steel 1.4571
- Maximum process pressure: ≤ 120 bar
- Housing material: Stainless steel 1.4571
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67
- Measuring current: 0.3 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Initialization time: < 10 ms
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 2.8 s, t90 ≤ 9.1 s
- Ambient temperature range: -40 °C to +125 °C
- Storage temperature range: -40 °C to +85 °C
- Shock resistance: 500 g
- Vibration resistance: 3 g
- Dimensions (H x L x W): 80mm x 100mm x 20mm
- Weight: 0.145 kg
Key Features
- Measuring range from -50 °C to +150 °C
- Pt100 sensor element with 4-wire output signal
- Thread G ½ B process connection
- Insertion length of 25 mm and probe diameter of 3 mm
- Stainless steel 1.4571 wetted parts and housing
- Maximum process pressure up to 120 bar
- IP67 rated enclosure for dust and water protection
- M12 round connector, 4-pin connection
- Fast initialization time under 10 ms
- Class A accuracy according to IEC 60751
- Shock resistance up to 500 g and vibration resistance 3 g
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial temperature measurement in process control
- Monitoring temperature in hydraulic and pneumatic systems
- Use in chemical and pharmaceutical industries
- General temperature sensing in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- High accuracy reduces energy waste by enabling precise temperature control
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK TCT-2PAGE0253MZ Pt100 Temperature Sensor is available for immediate purchase, ideal for industrial and process temperature measurement applications.
