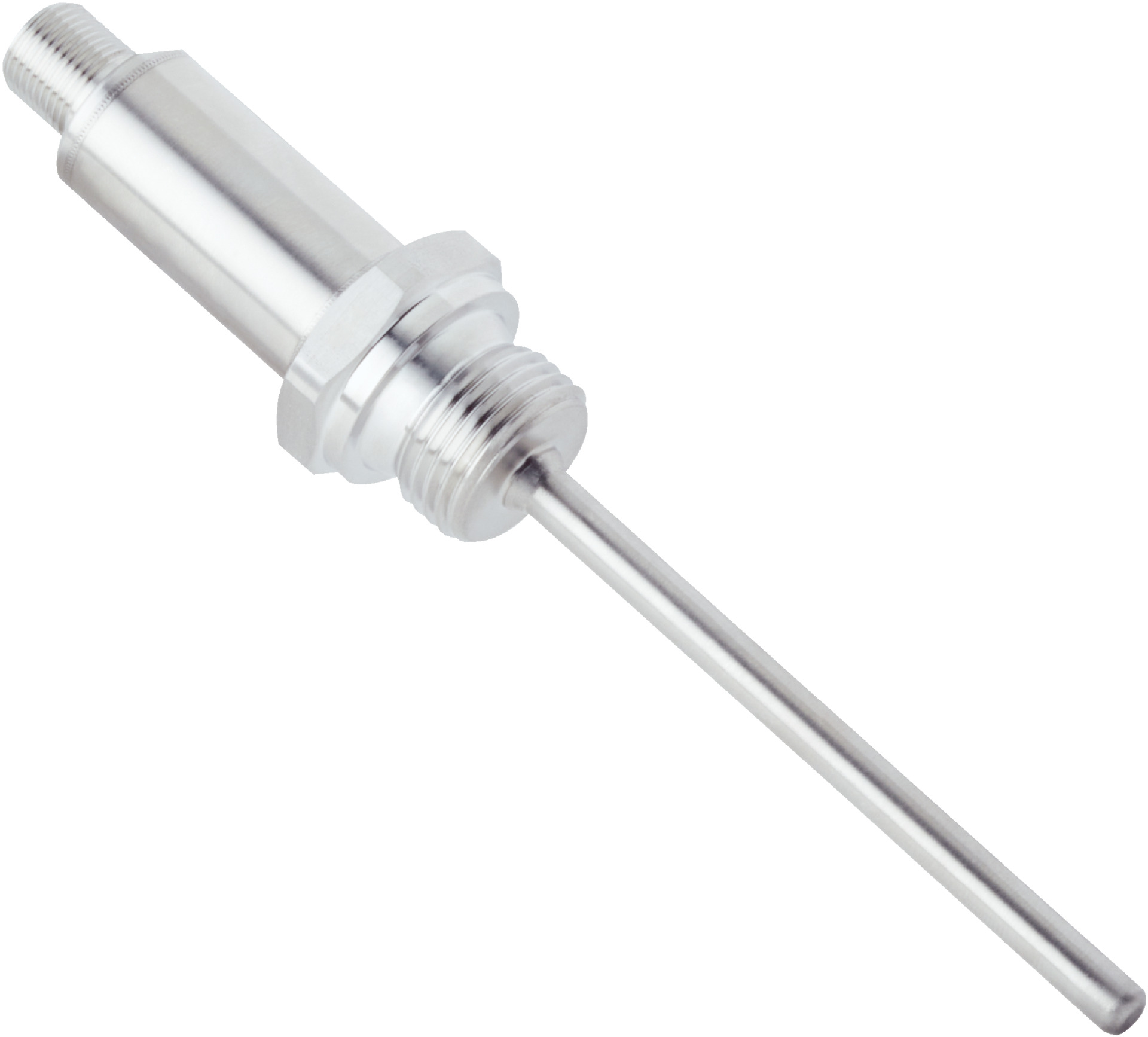

Pt100 Temperature Sensor | -50°C to +150°C Range | IP67 Rated | Stainless Steel Housing | by SICK
The Pt100 Temperature Sensor is designed for precise industrial temperature measurement, featuring a measuring range from -50°C to +150°C and a durable stainless steel housing. With an IP67 rating for dust and water protection, this sensor is perfect for process control systems and automation in manufacturing, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +150 °C
- Sensor element: Pt100
- Output signal: Pt100, 4-wire
- Insertion length: 100 mm
- Probe diameter: 6 mm
- Housing and wetted parts: Stainless steel 1.4571
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67
- Measuring current: 0.3 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 2.8 s, t90 ≤ 9.1 s
- Shock resistance: 500 g (IEC 60751)
- Vibration resistance: 3 g (IEC 60751)
- Initialization time: < 10 ms
- Dimensions (H x L x W): n/a mm x 100mm x 20mm
- Weight: 0.145 kg
Key Features
- Measuring range from -50 °C to +150 °C
- Pt100 sensor element with 4-wire output signal
- Stainless steel 1.4571 housing and wetted parts for durability
- IP67 rated enclosure for protection against dust and water
- M12 round 4-pin connector for reliable electrical connection
- Class A accuracy according to IEC 60751
- Fast response time: t50 ≤ 2.8 s, t90 ≤ 9.1 s
- Electrical safety protection class III with 500 V AC dielectric strength
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial temperature measurement
- Process control systems
- Automation and monitoring in manufacturing
- Environmental and ambient temperature sensing
Standards & Compliance
- Complies with AS/NZS 60335 for electrical safety and performance
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- High accuracy sensor reduces energy waste by enabling precise temperature control
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

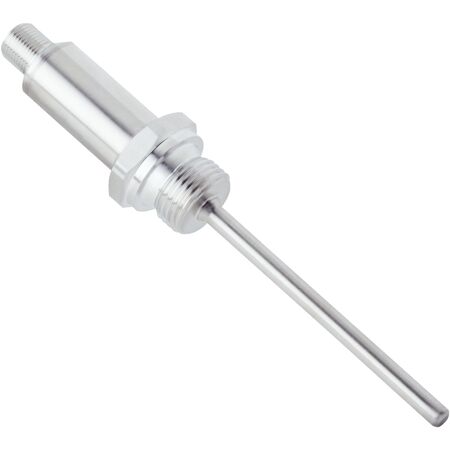

The SICK TCT-2PAZZ1006MZ Pt100 Temperature Sensor is available for immediate purchase, ideal for industrial and process temperature measurement applications.
