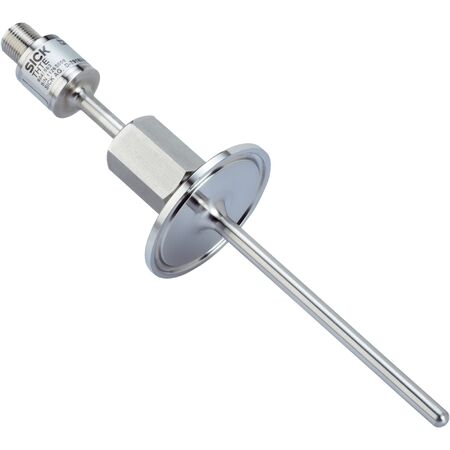

Pt100 Temperature Sensor | -50°C to +150°C Range | Tri-clamp Connection | IP67 & IP69 Rated | by SICK
The Pt100 Temperature Sensor is designed for precise industrial temperature measurement, featuring a measuring range from -50°C to +150°C and a robust tri-clamp connection. Ideal for the food and beverage industry, this hygienic sensor ensures high accuracy with its 4-wire output signal and stainless steel construction, making it perfect for demanding environments like chemical and pharmaceutical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +150 °C
- Sensor element: Pt100
- Output signal: Pt100, 4-wire
- Process connection: Tri-clamp 1'', 1 ½''
- Insertion length/diameter of probe: 50 mm / 6 mm
- Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
- Maximum process pressure: ≤ 16 bar
- Housing material: Stainless steel (CrNi)
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67 and IP69
- Measuring current: 0.1 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Initialization time: Max. 4 seconds
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 4.7 s, t90 ≤ 12.2 s
- Ambient temperature: -40 °C to +85 °C
- Storage temperature: -40 °C to +85 °C
- Shock resistance: 50 g, 6 ms
- Relative humidity: ≤ 100%
- Dimensions (H x L x W): 100mm x 100mm x 20mm
- Weight: 0.3 kg
Key Features
- Measuring range from -50 °C to +150 °C
- Pt100 sensor element with 4-wire output signal for high accuracy
- Tri-clamp process connection available in 1'' and 1 ½'' sizes
- Stainless steel 1.4435 / 316L wetted parts with surface roughness Ra ≤ 0.8 µm
- Pressure resistance up to 16 bar at room temperature
- IP67 and IP69 rated enclosure for robust protection
- M12 round connector, 4-pin connection type
- Fast initialization time of max. 4 seconds
- Class A accuracy according to IEC 60751
- Shock resistant up to 50 g, 6 ms
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial temperature sensors and hygienic process connections.
Applications
- Industrial temperature measurement in process control
- Food and beverage industry requiring hygienic sensor connections
- Chemical and pharmaceutical industries with high pressure environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- High accuracy sensor reduces energy waste by enabling precise process control
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK THTE-1PAT10506MZ Pt100 Temperature Sensor is available for immediate purchase, ideal for industrial and hygienic process temperature measurement applications.
