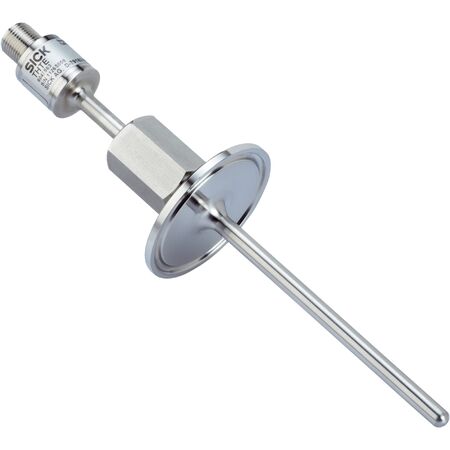

Pt100 Temperature Sensor | -50°C to +150°C Range | Tri-clamp Connection | IP67 & IP69 Rated | by SICK
The Pt100 Temperature Sensor is designed for precise industrial temperature measurement, featuring a measuring range from -50°C to +150°C and a hygienic tri-clamp process connection. Built with durable stainless steel and IP67/IP69 ratings, it's perfect for food, beverage, and pharmaceutical applications, ensuring reliable performance even in high-pressure environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +150 °C
- Sensor element: Pt100, 4-wire output
- Process connection: Tri-clamp 1'' and 1 ½''
- Insertion length: 75 mm, probe diameter: 6 mm
- Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
- Maximum process pressure: ≤ 16 bar
- Housing material: Stainless steel (CrNi)
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67 and IP69
- Measuring current: 0.1 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 4.7 s, t90 ≤ 12.2 s
- Shock resistance: 50 g, 6 ms
- Ambient temperature range: -40 °C to +85 °C
- Storage temperature range: -40 °C to +85 °C
- Relative humidity: ≤ 100%
- Dimensions (H x L x W): 100mm x 75mm x 20mm
- Weight: 0.3 kg
Key Features
- Measuring range from -50 °C to +150 °C
- Pt100 sensor element with 4-wire output signal
- Tri-clamp process connection (1'' and 1 ½'') for hygienic applications
- Stainless steel 1.4435 / 316L wetted parts with surface roughness Ra ≤ 0.8 µm
- High pressure resistance up to 16 bar at room temperature
- IP67 and IP69 rated enclosure for robust protection
- M12 round connector, 4-pin connection
- Class A accuracy according to IEC 60751
- Fast response time: t50 ≤ 4.7 s, t90 ≤ 12.2 s
- Shock resistant up to 50 g, 6 ms
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial temperature measurement in process control
- Food and beverage industry requiring hygienic sensor design
- Chemical and pharmaceutical processing with high pressure and temperature conditions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- High accuracy reduces energy waste by enabling precise process control
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK THTE-1PAT10756MZ Pt100 Temperature Sensor is available for immediate purchase, ideal for industrial and hygienic temperature measurement applications.
