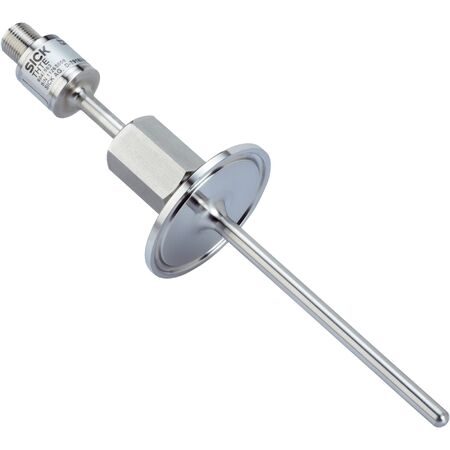

Pt100 Temperature Sensor | -50°C to +150°C | Tri-Clamp 2" Connection | IP67 & IP69 Rated | by SICK
The Pt100 Temperature Sensor is designed for precise industrial temperature measurement, featuring a measuring range of -50°C to +150°C and a hygienic Tri-Clamp 2" process connection. Built with durable stainless steel and IP67/IP69 ratings, it ensures reliable performance in food, beverage, and pharmaceutical applications, making it ideal for environments requiring high accuracy and safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +150 °C
- Sensor element: Pt100, 4-wire output
- Process connection: Tri-Clamp 2"
- Insertion length/diameter: 150 mm / 6 mm
- Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
- Maximum process pressure: ≤ 16 bar
- Housing material: Stainless steel (CrNi)
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67 and IP69
- Measuring current: 0.1 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 4.7 s, t90 ≤ 12.2 s
- Ambient temperature: -40 °C to +85 °C
- Shock resistance: 50 g, 6 ms
- Dimensions (H x L x W): 200mm x 200mm x 20mm
- Weight: 0.5 kg
Key Features
- Measuring range from -50 °C to +150 °C
- Pt100 sensor element with 4-wire output signal for high accuracy
- Tri-Clamp 2" process connection for hygienic and secure installation
- Stainless steel 1.4435 / 316L wetted parts with surface roughness Ra ≤ 0.8 µm
- IP67 and IP69 rated enclosure for protection against dust and water ingress
- Maximum process pressure up to 16 bar
- M12 round connector, 4-pin connection type
- Class A accuracy according to IEC 60751
- Shock resistant up to 50 g, 6 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with hygienic process connections and electrical safety standards.
Applications
- Industrial temperature measurement in process engineering
- Food and beverage industry requiring hygienic sensor design
- Chemical and pharmaceutical industries with high pressure and temperature conditions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction ensures long service life reducing waste
- High accuracy reduces energy waste by enabling precise process control
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK THTE-1PAT21506MZ Pt100 Temperature Sensor is available for immediate purchase, ideal for industrial and hygienic process temperature measurement applications.
