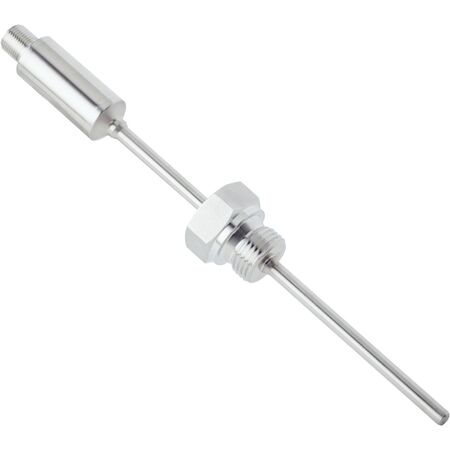

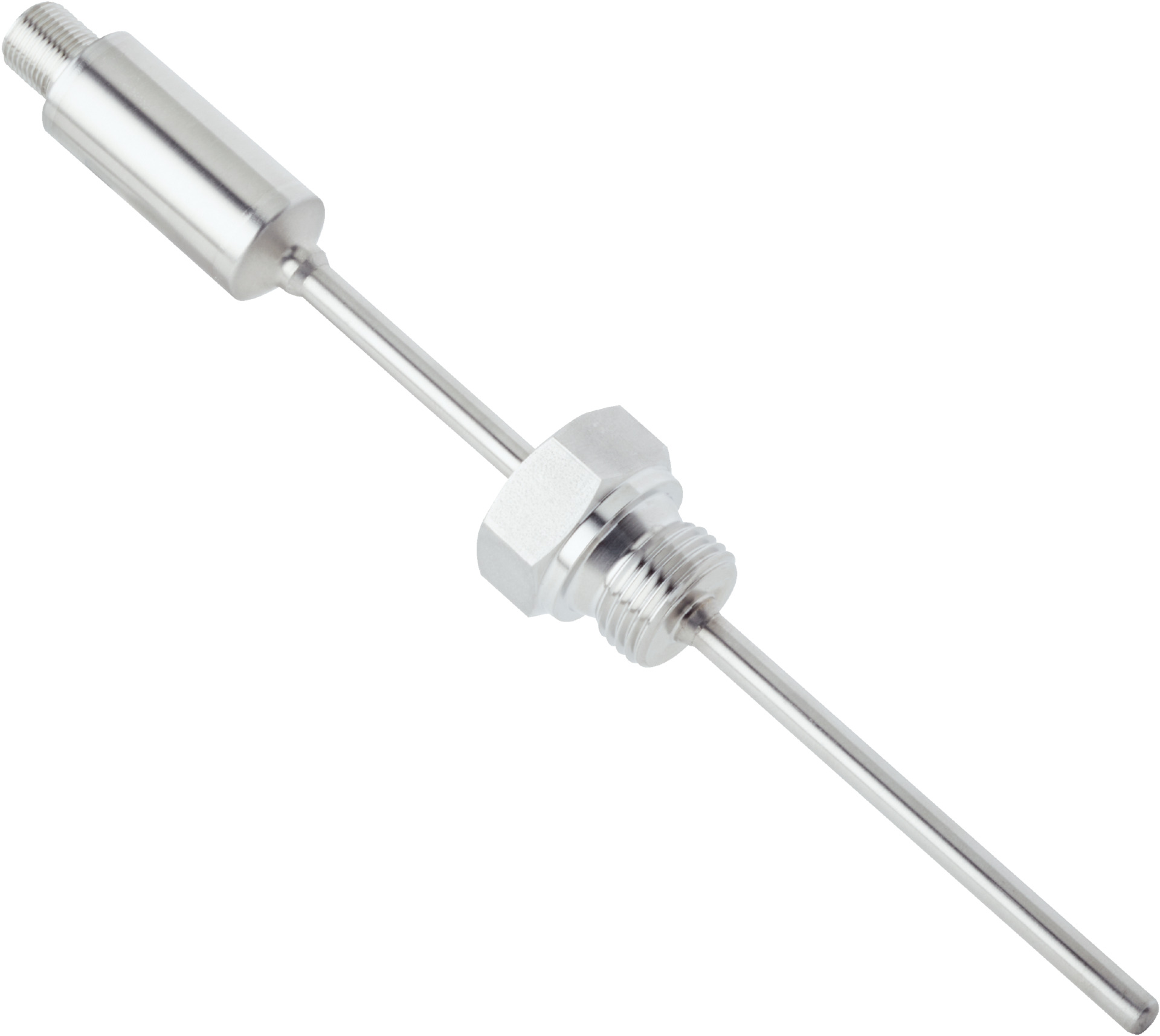

Pt100 Temperature Sensor | -50°C to +250°C Range | 4-Wire Output | IP67 Rated | by SICK
The Pt100 Temperature Sensor is designed for precise industrial temperature measurement, featuring a measuring range from -50°C to +250°C and a durable stainless steel construction. With a 4-wire output signal and an IP67 rated enclosure, it’s perfect for high-pressure environments up to 220 bar, ensuring reliable performance in process control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +250 °C
- Sensor element: Pt100
- Output signal: Pt100, 4-wire
- Process connection: Thermowell G ½ B
- Insertion length: 150 mm
- Probe diameter: 6 mm
- Wetted parts material: Stainless steel 1.4571
- Maximum process pressure: ≤ 220 bar
- Housing material: Stainless steel 1.4571
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67
- Measuring current: 0.3 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 2.8 s, t90 ≤ 9.1 s
- Ambient temperature range: -40 °C to +125 °C
- Storage temperature range: -40 °C to +85 °C
- Shock resistance: 500 g (IEC 60751)
- Vibration resistance: 3 g (IEC 60751)
- Initialization time: < 10 ms
- Dimensions (H x L x W): 20mm x 150mm x 20mm
- Weight: 0.145 kg
Key Features
- Measuring range from -50 °C to +250 °C
- Pt100 sensor element with 4-wire output signal
- Thermowell G ½ B process connection
- Insertion length of 150 mm and probe diameter of 6 mm
- Stainless steel 1.4571 wetted parts and housing for durability
- Maximum process pressure resistance up to 220 bar
- M12 round connector, 4-pin connection type
- IP67 rated enclosure for protection against dust and water
- Fast initialization time under 10 ms
- Electrical safety with protection class III and dielectric strength of 500 V AC
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial temperature sensors and electrical safety standards.
Applications
- Industrial temperature measurement in process control
- Use in environments requiring high pressure resistance up to 220 bar
- Suitable for applications needing precise temperature monitoring from -50°C to +250°C
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- High accuracy sensor reduces energy waste by enabling precise process control
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK TCT-2PBTE1506MZ Pt100 Temperature Sensor is available for immediate purchase, ideal for industrial process temperature monitoring requiring high accuracy and durability.
