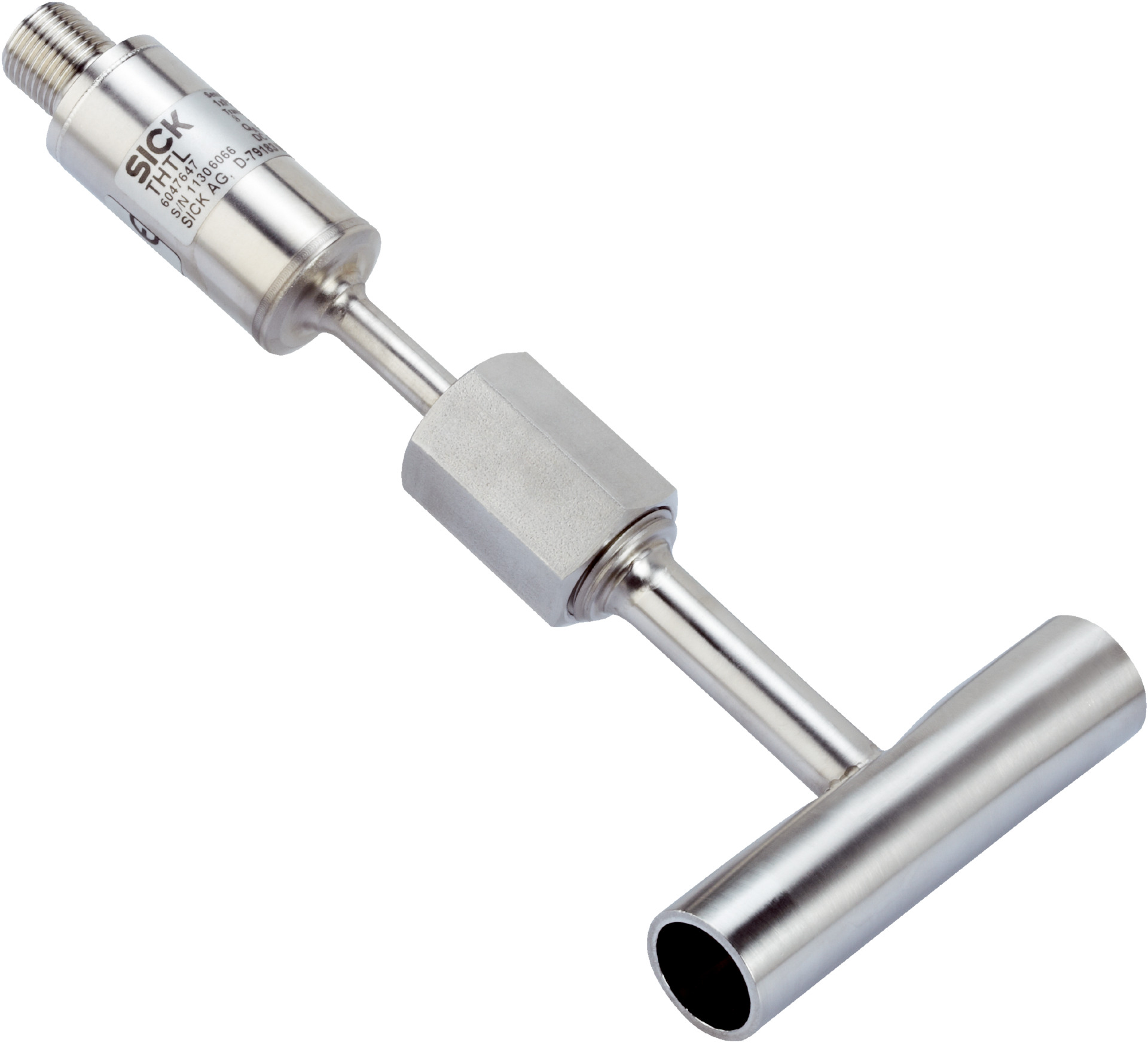

Pt100 Temperature Sensor | -50°C to +250°C Range | Angled Pipe Connection | IP67 & IP69 Rated | by SICK
The Pt100 Temperature Sensor is designed for precise industrial temperature measurement, featuring a wide measuring range from -50°C to +250°C and an angled pipe process connection. Built for high-pressure and hygienic environments, this sensor ensures accuracy with a Class A rating and quick initialization, making it ideal for applications in chemical, pharmaceutical, and food processing industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +250 °C
- Sensor element: Pt100, 4-wire output
- Process connection: Angled pipe (DIN EN ISO 1127 and DIN 11866), row B, for welding
- Nominal width: DN 21.3
- Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
- Maximum process pressure: ≤ 25 bar
- Housing material: Stainless steel (CrNi)
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67 and IP69
- Measuring current: 0.1 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Initialization time: Max. 4 seconds
- Accuracy: Class A according to IEC 60751
- Transmitter accuracy: ±0.25 K
- Response time: t50 ≤ 3.2 s, t90 ≤ 9.1 s
- Shock resistance: 50 g, 6 ms
- Ambient temperature range: -40 °C to +85 °C
- Storage and transport temperature: -40 °C to +85 °C
- Relative humidity: ≤ 100%
- Dimensions (H x L x W): 150mm x 200mm x 50mm
- Weight: 0.3 kg
Key Features
- Measuring range from -50 °C to +250 °C
- Pt100 sensor element with 4-wire output signal
- Angled pipe process connection compliant with DIN EN ISO 1127 and DIN 11866
- Wetted parts made of stainless steel 1.4435 / 316L with surface roughness Ra ≤ 0.8 µm
- Maximum process pressure up to 25 bar
- Housing made of stainless steel (CrNi) with IP67 and IP69 protection ratings
- M12 round connector, 4-pin connection
- Electrical safety protection class III with dielectric strength of 500 V AC
- Fast initialization time of max. 4 seconds
- High accuracy Class A sensor element according to IEC 60751
- Transmitter accuracy ±0.25 K
- Response time t50 ≤ 3.2 s, t90 ≤ 9.1 s
- Shock resistant up to 50 g, 6 ms
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial temperature sensors and process connections to ensure proper sealing and electrical safety.
Applications
- Industrial temperature measurement in process control
- Monitoring temperature in chemical and pharmaceutical industries
- Use in food and beverage processing plants
- Suitable for high-pressure and hygienic environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- High accuracy reduces energy waste by enabling precise temperature control
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

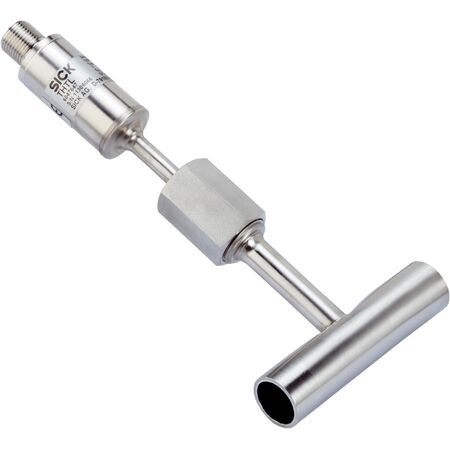

The SICK THTL-1PBAB0213MZ Pt100 Temperature Sensor is available for immediate purchase, ideal for industrial and process temperature monitoring applications.
