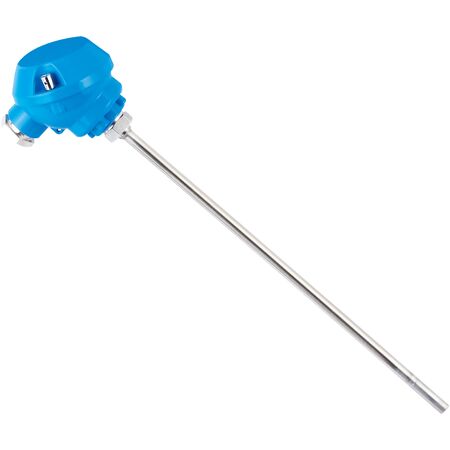

Pt100 Temperature Sensor | -50°C to +250°C Range | Compression Fitting | IP65 Rated | by SICK
The Pt100 Temperature Sensor is designed for industrial temperature measurement, featuring a measuring range from -50°C to +250°C and a robust compression fitting for high-pressure applications. With an IP65 rated aluminum housing and Class A accuracy, it's perfect for process control in chemical and pharmaceutical industries, ensuring precise temperature monitoring and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +250 °C
- Sensor element: Pt100, 4-wire output
- Process connection: Compression fitting ¼'' NPT, stainless steel ferrule
- Insertion length: 100 mm, probe diameter: 6 mm
- Maximum process pressure: ≤ 100 bar
- Housing material: Aluminum
- Connection type: Cable gland M16 x 1.5
- Enclosure rating: IP65
- Measuring current: 0.3 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 5.8 s, t90 ≤ 15.5 s
- Shock resistance: 500 g
- Vibration resistance: 3 g
- Initialization time: < 1 ms
- CE conformity: 2004/108/EC, EN 61326-2-3
- Dimensions (H x L x W): 150mm x 100mm x 20mm
- Weight: 0.155 kg
Key Features
- Measuring range from -50 °C to +250 °C
- Pt100 sensor element with 4-wire output signal
- Compression fitting ¼'' NPT with stainless steel ferrule
- High pressure resistance up to 100 bar
- IP65 rated aluminum housing for robust protection
- Fast initialization time under 1 ms
- Class A accuracy according to IEC 60751
- Shock resistance up to 500 g and vibration resistance 3 g
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial temperature sensors and electrical safety standards.
Applications
- Industrial temperature measurement in process control
- Monitoring temperature in chemical and pharmaceutical industries
- Use in environments requiring high pressure resistance and accuracy
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel and aluminum construction reduces waste through long service life
- High accuracy reduces energy waste by enabling precise temperature control
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK TBT-1PBS41006GZ Pt100 Temperature Sensor is available for immediate purchase, ideal for industrial and process control applications requiring precise temperature measurement.
