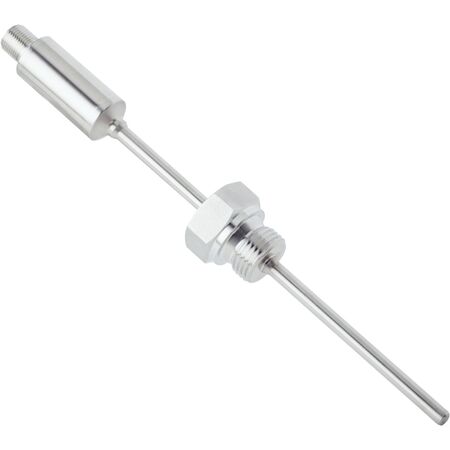

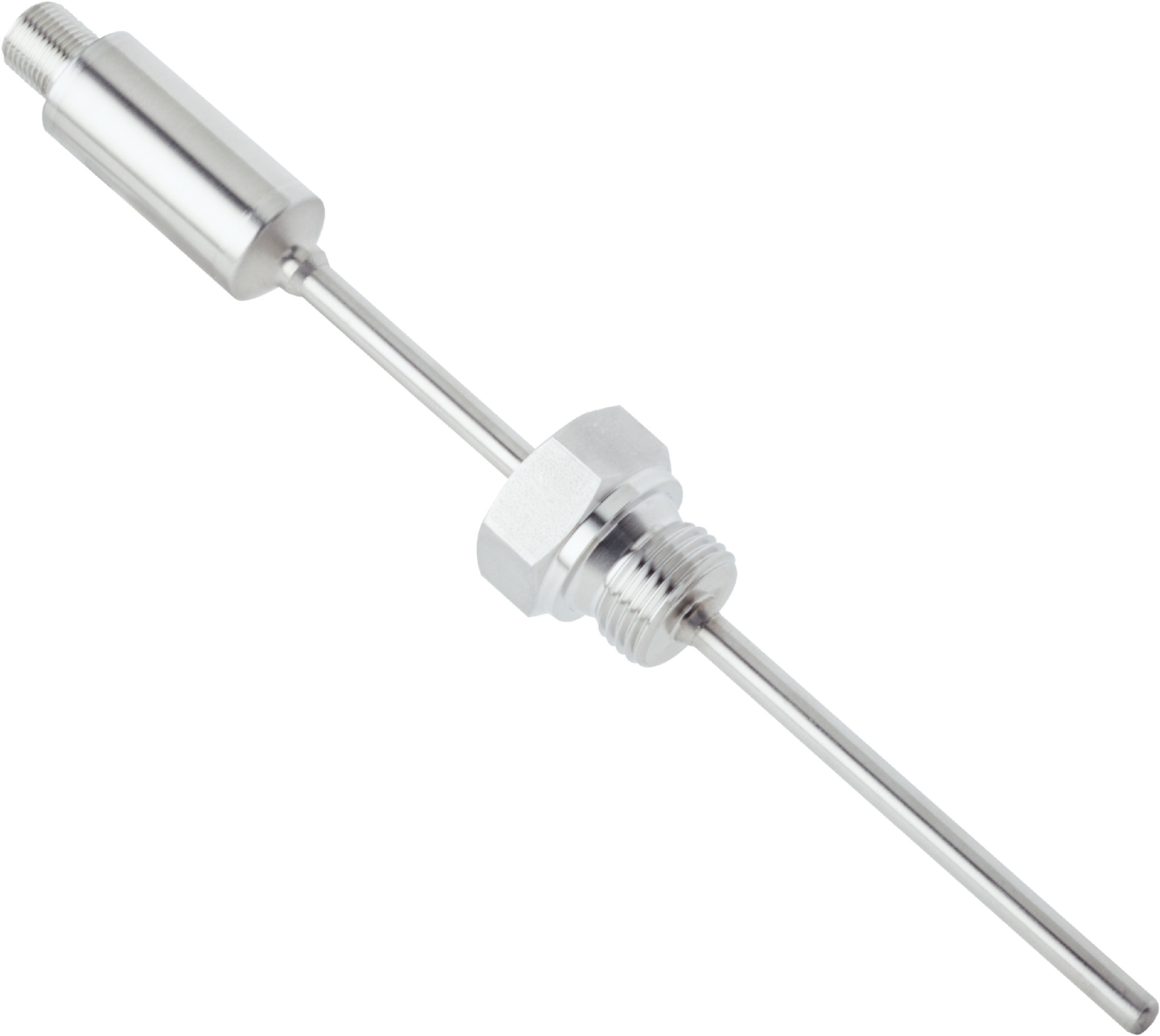

Pt100 Temperature Sensor | -50°C to +250°C Range | IP67 Rated | Stainless Steel Construction | by SICK
The Pt100 Temperature Sensor is designed for precise industrial temperature measurement, featuring a measuring range from -50°C to +250°C and a robust stainless steel construction. Ideal for process control and automation systems, this sensor ensures high accuracy and durability, making it perfect for environments with high pressure and temperature variations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: –50 °C to +250 °C
- Sensor element: Pt100
- Output signal: Pt100, 4-wire
- Process connection: Thread G ½ B
- Insertion length: 100 mm
- Probe diameter: 6 mm
- Wetted parts: Stainless steel 1.4571
- Maximum process pressure: ≤ 120 bar
- Housing material: Stainless steel 1.4571
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67
- Measuring current: 0.3 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 2.8 s, t90 ≤ 9.1 s
- Ambient temperature range: –40 °C to +125 °C
- Storage temperature: –40 °C to +85 °C
- Shock resistance: 500 g (IEC 60751)
- Vibration resistance: 3 g (IEC 60751)
- Initialization time: < 10 ms
- Dimensions (H x L x W): 120mm x 120mm x 20mm
- Weight: 0.145 kg
Key Features
- Measuring range from –50 °C to +250 °C
- Pt100 sensor element with 4-wire output signal
- Thread G ½ B process connection
- Insertion length of 100 mm and probe diameter of 6 mm
- Stainless steel 1.4571 wetted parts and housing
- Maximum process pressure up to 120 bar
- IP67 rated enclosure for dust and water protection
- M12 round connector, 4-pin connection
- Protection class III with dielectric strength of 500 V AC
- Fast initialization time under 10 ms
- Shock resistance of 500 g and vibration resistance of 3 g
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial temperature measurement in process control
- Monitoring temperature in manufacturing and automation systems
- Use in environments requiring high pressure resistance and stainless steel construction
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- High accuracy sensor reduces energy waste by enabling precise temperature control
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK TCT-2PBGE1006MZ Pt100 Temperature Sensor is available for immediate purchase, ideal for industrial and process temperature measurement applications.
