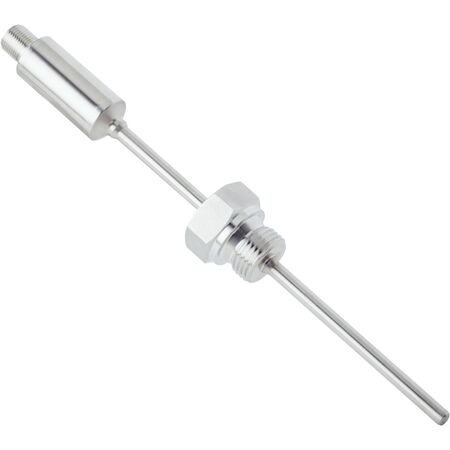

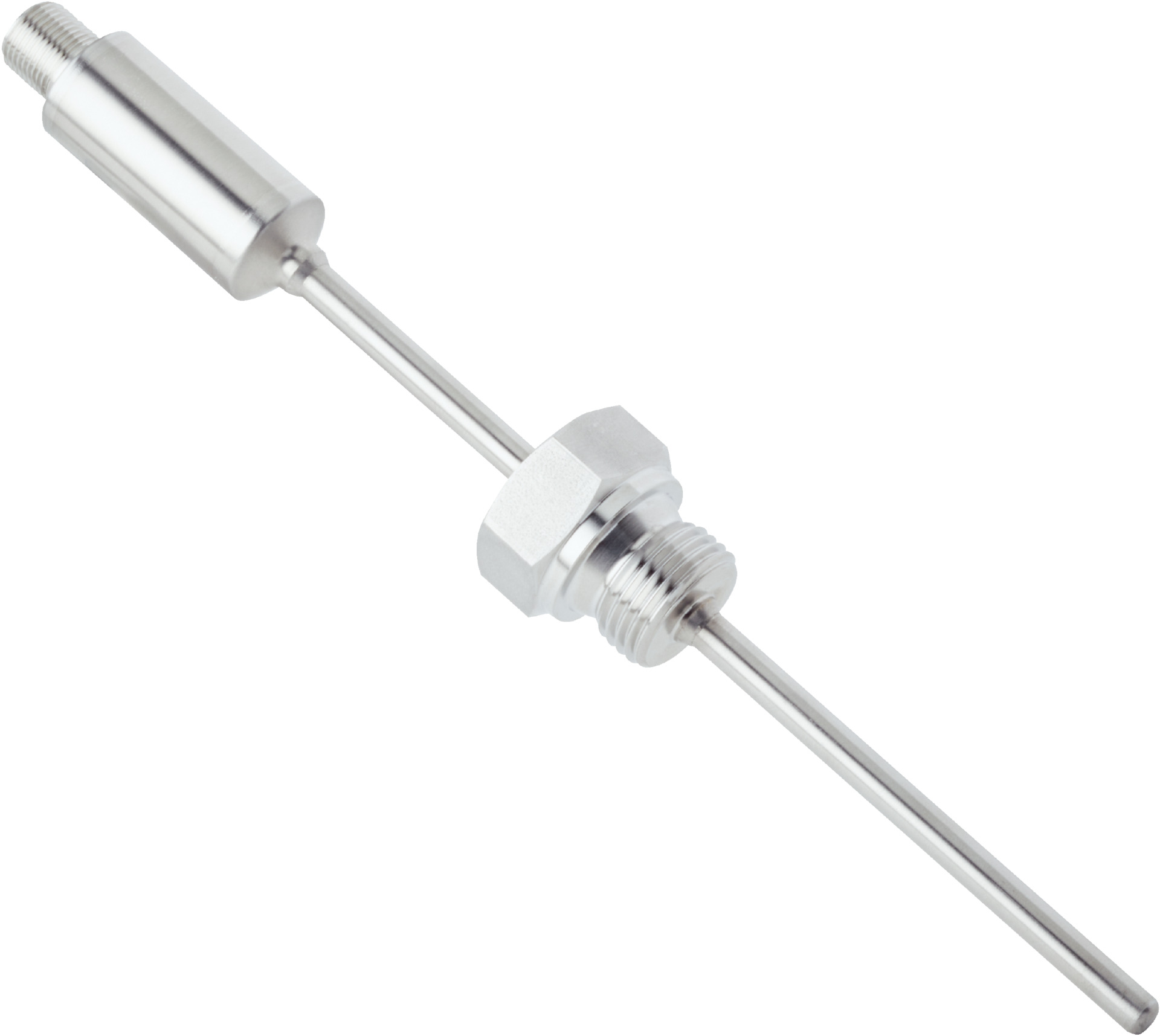

Pt100 Temperature Sensor | -50°C to +250°C Range | IP67 Rated | Stainless Steel Housing | by SICK
The Pt100 Temperature Sensor is designed for precise industrial temperature measurement, featuring a measuring range from -50°C to +250°C and a robust stainless steel housing. With an IP67 rating, it ensures reliable performance in harsh environments, making it ideal for process control and automation systems. Its fast initialization time and high accuracy make it a top choice for professionals seeking dependable temperature monitoring solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: –50 °C to +250 °C
- Sensor element: Pt100
- Output signal: Pt100, 4-wire
- Process connection: Thread G ½ B
- Insertion length: 150 mm
- Probe diameter: 6 mm
- Wetted parts: Stainless steel 1.4571
- Maximum process pressure: ≤ 120 bar
- Housing material: Stainless steel 1.4571
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67
- Measuring current: 0.3 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Initialization time: < 10 ms
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 2.8 s, t90 ≤ 9.1 s
- Ambient temperature range: –40 °C to +125 °C
- Storage temperature range: –40 °C to +85 °C
- Shock resistance: 500 g
- Vibration resistance: 3 g
- Dimensions (H x L x W): 20mm x 150mm x 20mm
- Weight: 0.145 kg
Key Features
- Measuring range from –50 °C to +250 °C
- Pt100 sensor element with 4-wire output signal
- Thread G ½ B process connection
- Insertion length of 150 mm and probe diameter of 6 mm
- Stainless steel 1.4571 wetted parts and housing
- Maximum process pressure up to 120 bar
- IP67 rated enclosure for dust and water protection
- M12 round connector, 4-pin connection
- Protection class III with dielectric strength of 500 V AC
- Fast initialization time under 10 ms
- Shock resistance of 500 g and vibration resistance of 3 g
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial temperature measurement in process control
- Monitoring temperature in manufacturing and automation systems
- Use in environments requiring high pressure resistance and IP67 protection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- High accuracy sensor reduces energy waste by enabling precise temperature control
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK TCT-2PBGE1506MZ Pt100 Temperature Sensor is available for immediate purchase, ideal for industrial and process temperature measurement applications.
