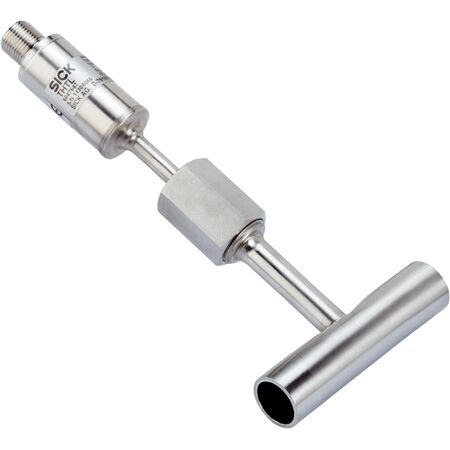

Pt100 Temperature Sensor | -50°C to +250°C Range | Stainless Steel Wetted Parts | IP67 & IP69 Rated | by SICK
The Pt100 Temperature Sensor is designed for precise industrial temperature measurement, featuring a measuring range from -50°C to +250°C and a robust stainless steel construction. Ideal for monitoring in chemical, pharmaceutical, and food processing industries, this sensor ensures high accuracy and fast response times, making it perfect for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +250 °C
- Sensor element: Pt100
- Output signal: Pt100, 4-wire
- Process connection: Straight pipe (DIN EN ISO 1127 and DIN 11866), row B, for welding
- Nominal width: DN 21.3
- Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
- Maximum process pressure: ≤ 25 bar
- Housing material: Stainless steel (CrNi)
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67, IP69
- Measuring current: 0.1 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Initialization time: Max. 4 seconds
- Accuracy: Class A according to IEC 60751
- Transmitter accuracy: ±0.25 K
- Response time: t50 ≤ 3.2 s, t90 ≤ 9.1 s
- Ambient temperature: -40 °C to +85 °C
- Storage temperature: -40 °C to +85 °C
- Shock resistance: 50 g, 6 ms
- Relative humidity: ≤ 100%
- Dimensions (H x L x W): 150mm x 150mm x 25mm
- Weight: 0.5 kg
Key Features
- Measuring range from -50 °C to +250 °C
- Pt100 sensor element with 4-wire output signal
- Stainless steel 1.4435 / 316L wetted parts with Ra ≤ 0.8 µm surface finish
- Process connection: Straight pipe (DIN EN ISO 1127 and DIN 11866), row B, for welding
- Maximum process pressure up to 25 bar
- Housing made of stainless steel (CrNi) with IP67 and IP69 enclosure rating
- M12 round connector, 4-pin connection
- Protection class III with dielectric strength of 500 V AC
- Fast initialization time of max. 4 seconds
- High accuracy: Class A according to IEC 60751, transmitter accuracy ±0.25 K
- Shock resistant up to 50 g, 6 ms
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial temperature sensors and electrical safety standards.
Applications
- Industrial temperature measurement in process pipelines
- Monitoring and control in chemical and pharmaceutical industries
- Use in food and beverage processing plants
- General temperature sensing in harsh environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- High accuracy reduces energy waste by enabling precise temperature control
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK THTL-1PBSB0213MZ Pt100 Temperature Sensor is available for immediate purchase, ideal for industrial and process temperature measurement applications.
