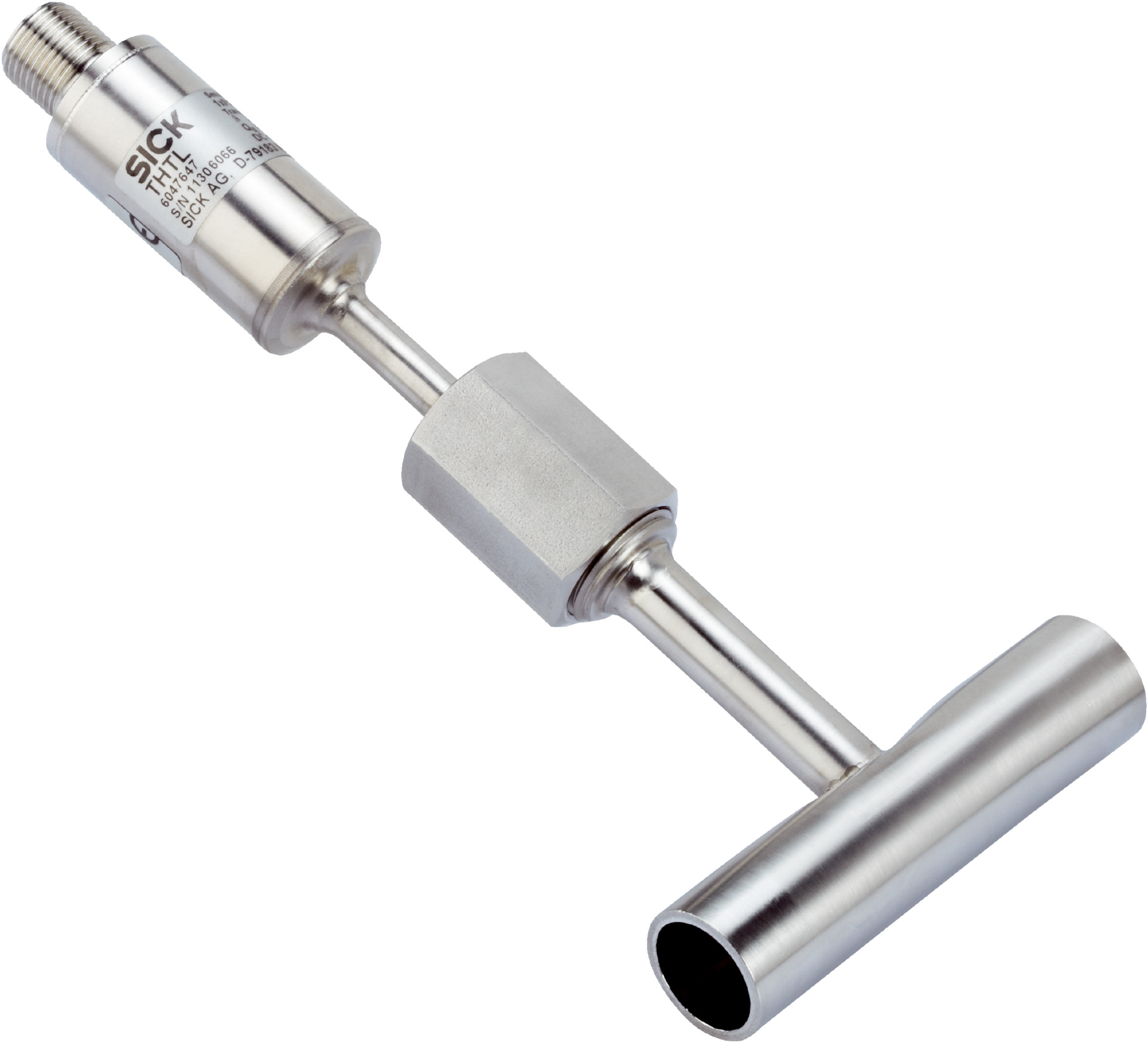

Pt100 Temperature Sensor | -50°C to +250°C Range | Stainless Steel Wetted Parts | IP67 & IP69 Rated | by SICK
The Pt100 Temperature Sensor is designed for industrial temperature measurement, featuring a measuring range from -50°C to +250°C and a robust stainless steel construction. With a 4-wire output signal and IP67/IP69 enclosure ratings, it ensures reliable performance in demanding environments, making it ideal for process control and manufacturing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +250 °C
- Sensor element: Pt100
- Output signal: Pt100, 4-wire
- Process connection: Spare sensor without process connection
- Nominal width: DN 21.3
- Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
- Maximum process pressure: ≤ 25 bar
- Housing material: Stainless steel (CrNi)
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67, IP69
- Measuring current: 0.1 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Initialization time: Max. 4 s
- Accuracy: Class A according to IEC 60751
- Transmitter accuracy: ± 0.25 K
- Response time: t50 ≤ 3.2 s, t90 ≤ 9.1 s
- Ambient temperature: -40 °C to +85 °C
- Storage and transport temperature: -40 °C to +85 °C
- Shock resistance: 50 g, 6 ms (IEC 60068-2-27)
- Relative humidity: ≤ 100%
- Dimensions (H x L x W): 100mm x 100mm x 20mm
- Weight: 0.2 kg
Key Features
- Measuring range from -50 °C to +250 °C
- Pt100 sensor element with 4-wire output signal
- Stainless steel 1.4435 / 316L wetted parts with Ra ≤ 0.8 µm surface finish
- Maximum process pressure up to 25 bar
- IP67 and IP69 rated enclosure for robust protection
- M12 round connector, 4-pin connection
- Class A accuracy according to IEC 60751
- Fast response time: t50 ≤ 3.2 s, t90 ≤ 9.1 s
- Electrical safety protection class III with dielectric strength 500 V AC
- Shock resistant up to 50 g, 6 ms
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial temperature sensors and electrical safety standards.
Applications
- Industrial temperature measurement in process control
- Monitoring temperature in manufacturing environments
- Use in systems requiring precise temperature sensing with Pt100 sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- High accuracy reduces energy waste by enabling precise temperature control
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

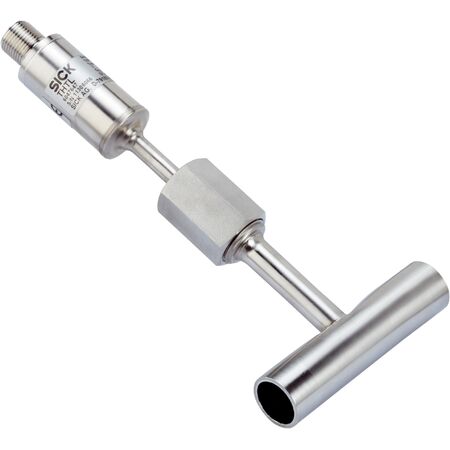

The SICK THTL-1PBZZ0213MZ Pt100 Temperature Sensor is available for immediate purchase, ideal for industrial and process control applications requiring precise temperature measurement.
