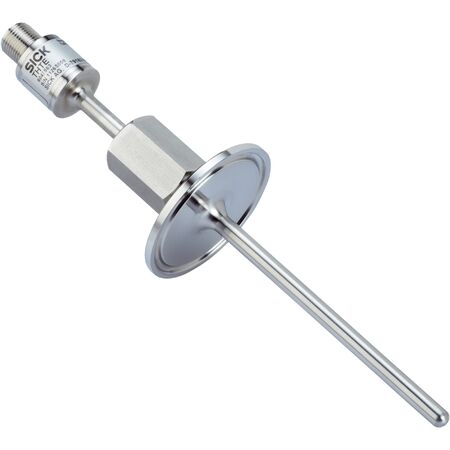

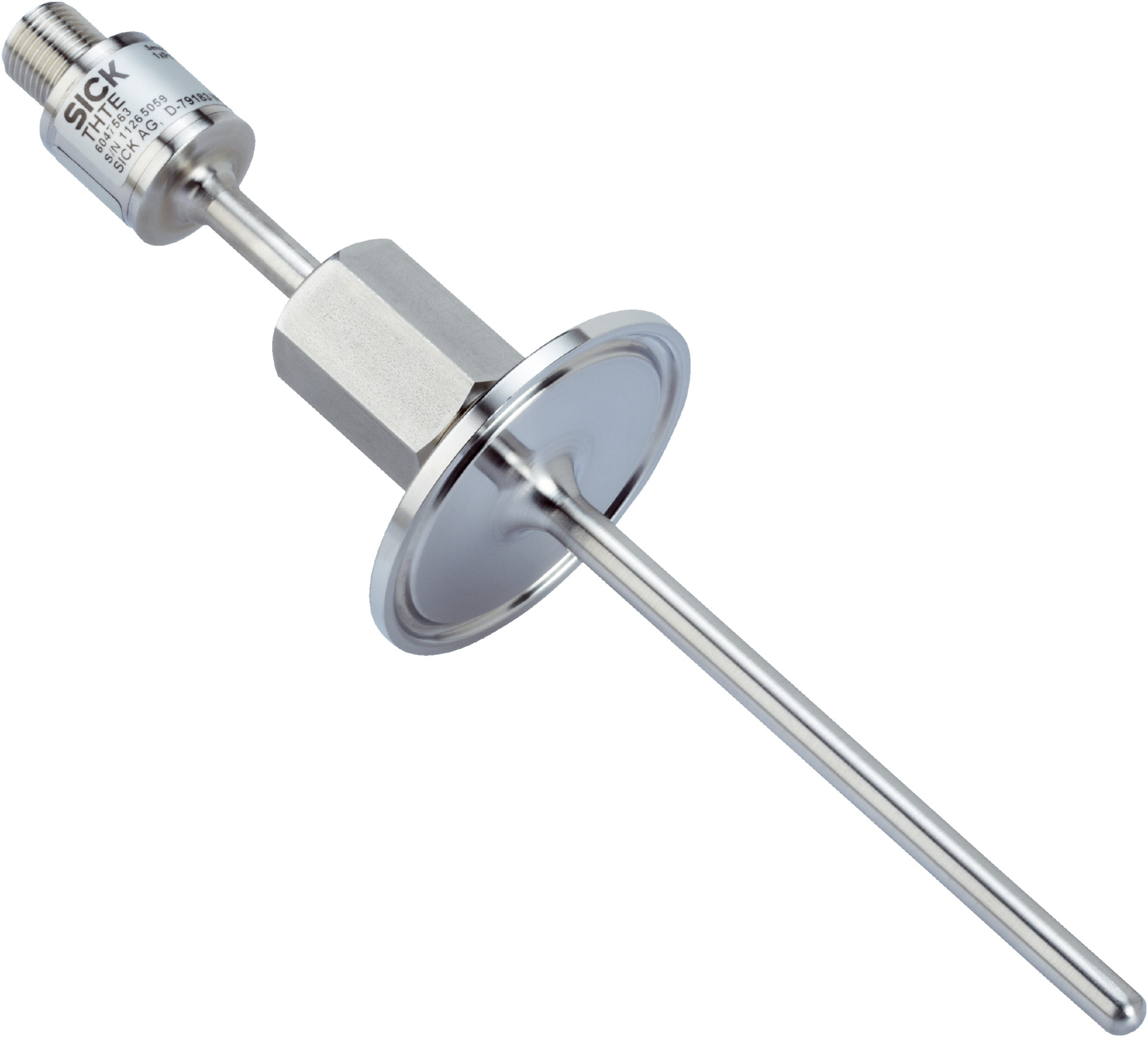

Pt100 Temperature Sensor Clamp | -50°C to +150°C Range | Hygienic Stainless Steel | IP67 & IP69 Rated | by SICK
The Pt100 Temperature Sensor Clamp is designed for precise temperature measurement in industrial and hygienic applications, featuring a measuring range from -50°C to +150°C. With a robust stainless steel construction and IP67/IP69 ratings, it ensures durability and reliability in harsh environments. Ideal for food and beverage industries, this sensor offers high accuracy and fast response times, making it perfect for process control and monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +150 °C
- Sensor element: Pt100
- Output signal: Pt100, 4-wire
- Process connection: Clamp (ISO 2852) DN 25, DN 33.7, DN 38
- Insertion length/diameter of probe: 25 mm / 6 mm
- Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
- Maximum process pressure: ≤ 16 bar
- Housing material: Stainless steel (CrNi)
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67 and IP69
- Measuring current: 0.1 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 4.7 s, t90 ≤ 12.2 s
- Ambient temperature: -40 °C to +85 °C
- Shock resistance: 50 g, 6 ms
- Dimensions (H x L x W): 25mm x 100mm x 25mm
- Weight: 0.3 kg
Key Features
- Measuring range from -50 °C to +150 °C
- Pt100 sensor element with 4-wire output signal for high accuracy
- Clamp connection compliant with ISO 2852 for hygienic applications
- Stainless steel 1.4435 / 316L wetted parts with Ra ≤ 0.8 µm surface finish
- IP67 and IP69 rated enclosure for robust protection against dust and water
- Electrical safety protection class III with dielectric strength of 500 V AC
- Fast initialization time of max. 4 seconds
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial temperature measurement in process control
- Food and beverage industry with hygienic clamp connections
- Chemical and pharmaceutical process monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction ensures long service life reducing waste
- High accuracy sensor reduces energy waste by enabling precise process control
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK THTE-1PAC30256MZ Pt100 Temperature Sensor is available for immediate purchase, ideal for industrial and hygienic process temperature measurement applications.
