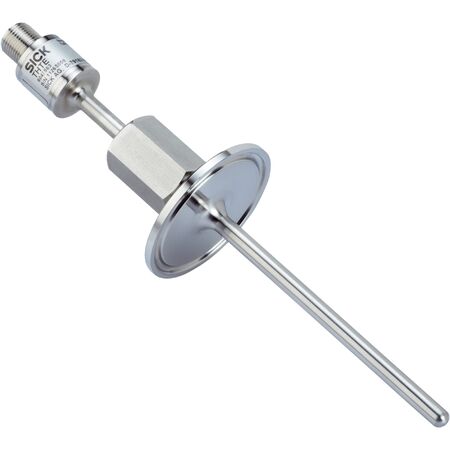

Pt100 Temperature Sensor Clamp | -50°C to +150°C | IP67 & IP69 Rated | Stainless Steel Wetted Parts | by SICK
The Pt100 Temperature Sensor Clamp is designed for precise temperature measurement in industrial and hygienic applications, with a measuring range of -50°C to +150°C. Featuring a high-accuracy Pt100 sensor element and a durable stainless steel construction, this sensor is perfect for food and beverage industries, chemical monitoring, and harsh environments, ensuring reliable performance and compliance with ISO standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +150 °C
- Sensor element: Pt100
- Output signal: Pt100, 4-wire
- Process connection: Clamp (ISO 2852) DN 25, DN 33.7, DN 38
- Insertion length / probe diameter: 100 mm / 6 mm
- Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
- Maximum process pressure: ≤ 16 bar
- Housing material: Stainless steel (CrNi)
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67 and IP69
- Measuring current: 0.1 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 4.7 s, t90 ≤ 12.2 s
- Ambient temperature: -40 °C to +85 °C
- Shock resistance: 50 g, 6 ms
- Relative humidity: ≤ 100%
- Dimensions (H x L x W): 100mm x 100mm x 25mm
- Weight: 0.3 kg
Key Features
- Measuring range from -50 °C to +150 °C
- Pt100 sensor element with 4-wire output signal for high accuracy
- Clamp process connection compliant with ISO 2852 standards
- Stainless steel 1.4435 / 316L wetted parts with Ra ≤ 0.8 µm surface finish
- IP67 and IP69 rated enclosure for protection against dust and water
- Electrical safety protection class III with dielectric strength of 500 V AC
- Fast initialization time of maximum 4 seconds
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial temperature measurement in process control
- Food and beverage industry with hygienic clamp connections
- Chemical and pharmaceutical process monitoring
- General temperature sensing in harsh environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction ensures long service life reducing waste
- High accuracy sensor reduces energy waste by enabling precise process control
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK THTE-1PAC31006MZ Pt100 Temperature Sensor is available for immediate purchase, ideal for industrial and hygienic process temperature measurement applications.
