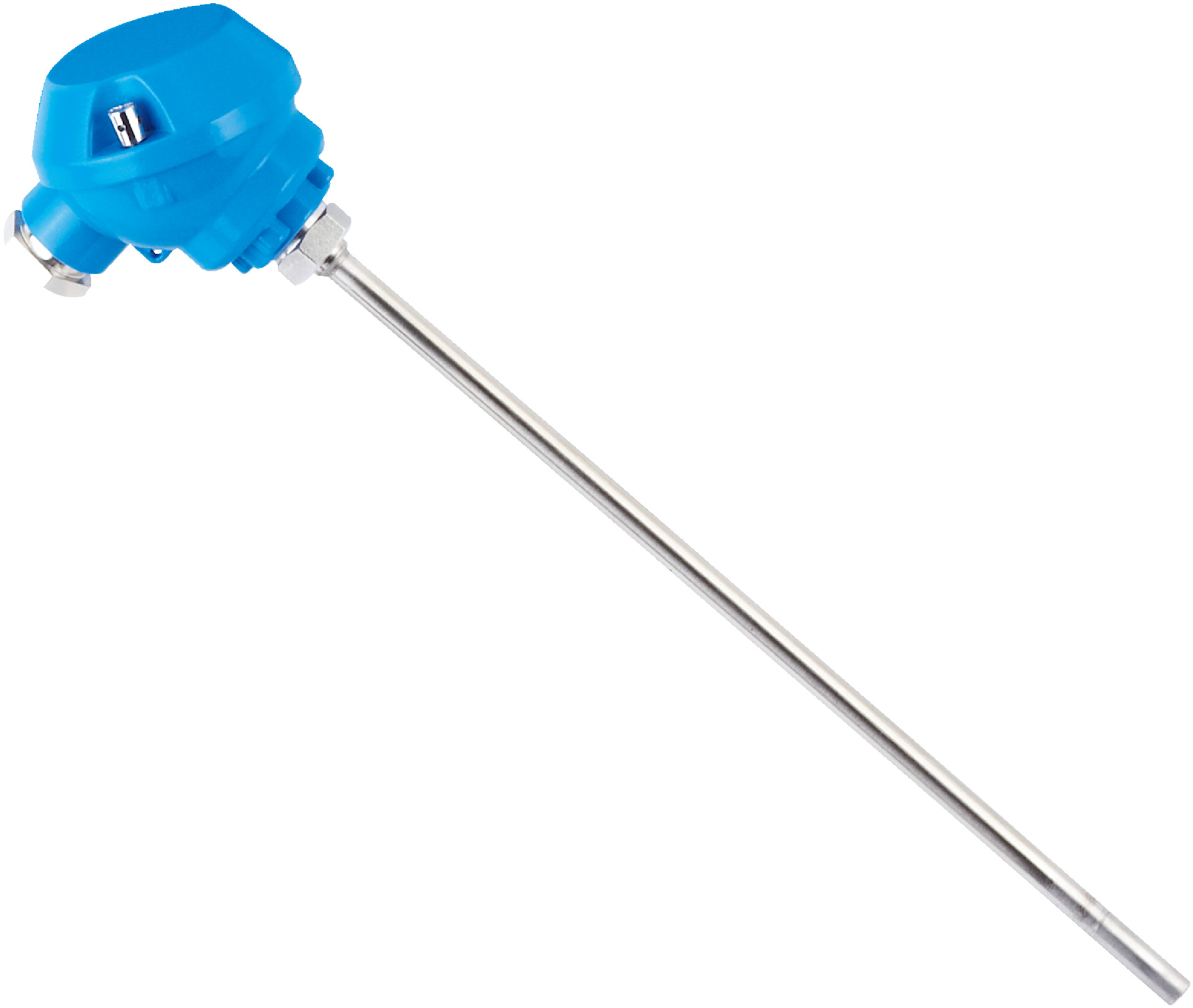

Pt100 Temperature Sensor Probe | -50°C to +150°C Range | 4-Wire Output | IP65 Rated | by SICK
The Pt100 Temperature Sensor Probe is designed for precise industrial temperature measurement, featuring a measuring range from -50°C to +150°C and a durable stainless steel construction. With a fast initialization time under 1 ms and an IP65 enclosure rating, this sensor is perfect for process control systems and automation in manufacturing, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +150 °C
- Sensor element: Pt100
- Output signal: Pt100, 4-wire
- Insertion length: 250 mm
- Probe diameter: 6 mm
- Wetted parts: Stainless steel 1.4571
- Housing material: Aluminum
- Connection type: Cable gland M16 x 1.5
- Enclosure rating: IP65
- Measuring current: 0.3 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 5.8 s, t90 ≤ 15.5 s
- Shock resistance: 500 g (IEC 60751)
- Vibration resistance: 3 g (IEC 60751)
- Initialization time: < 1 ms
- CE conformity: 2004/108/EC, EN 61326-2-3
- Dimensions (H x L x W): 20mm x 250mm x 20mm
- Weight: 0.155 kg
Key Features
- Measuring range from -50 °C to +150 °C
- Pt100 sensor element with 4-wire output signal
- Stainless steel 1.4571 wetted parts for durability
- Aluminum housing with IP65 enclosure rating
- Fast initialization time under 1 ms
- High accuracy Class A sensor element according to IEC 60751
- Shock resistance up to 500 g and vibration resistance of 3 g
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial temperature measurement
- Process control systems
- Automation and monitoring in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel and aluminum construction reduces waste and replacement frequency
- Energy-efficient sensor operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now

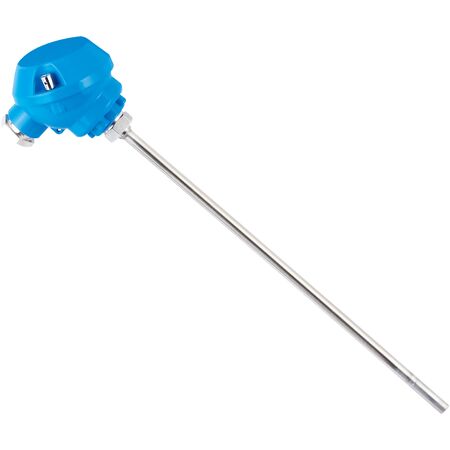

The SICK TBT-1PAZZ2506GZ Pt100 Temperature Sensor Probe is available for immediate purchase, ideal for industrial and process temperature measurement applications.
