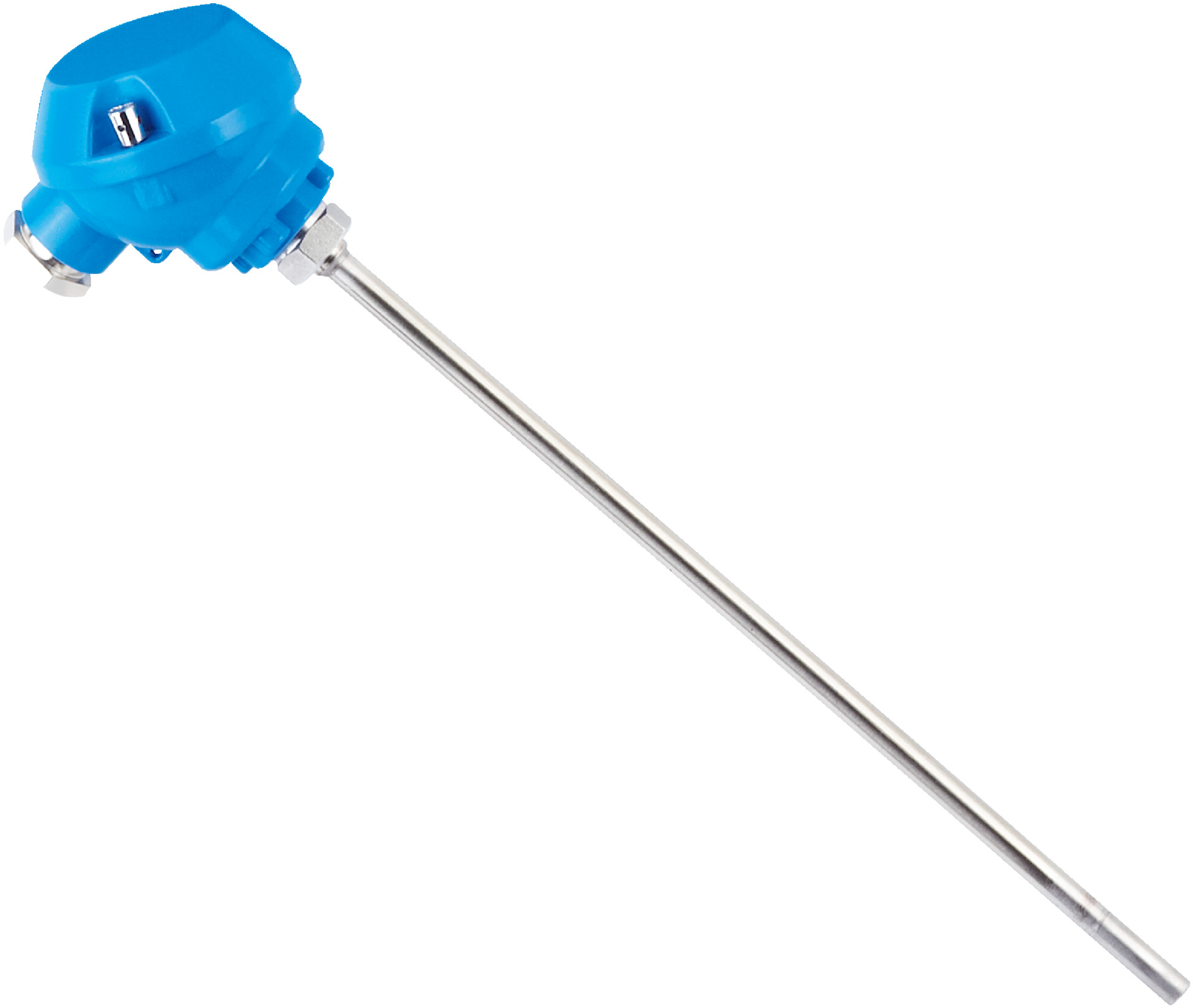

Pt100 Temperature Sensor Probe | -50°C to +150°C Range | IP65 Rated | Fast Response Time | by SICK
The Pt100 Temperature Sensor Probe is designed for precise industrial temperature measurement, featuring a measuring range from -50°C to +150°C and a durable stainless steel construction. With an IP65 enclosure rating and fast response times, it's perfect for process monitoring and environmental sensing in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +150 °C
- Sensor element: Pt100
- Output signal: Pt100, 4-wire
- Insertion length/diameter of probe: 100 mm / 6 mm
- Wetted parts: Stainless steel 1.4571
- Housing material: Aluminum
- Connection type: Cable gland M16 x 1.5
- Enclosure rating: IP65
- Measuring current: 0.3 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 5.8 s, t90 ≤ 15.5 s
- Ambient temperature range: -40 °C to +125 °C
- Storage temperature range: -40 °C to +60 °C
- Shock resistance: 500 g (IEC 60751)
- Vibration resistance: 3 g (IEC 60751)
- Initialization time: < 1 ms
- CE conformity: 2004/108/EC, EN 61326-2-3
- Dimensions (H x L x W): 20mm x 100mm x 20mm
- Weight: 0.155 kg
Key Features
- Measuring range from -50 °C to +150 °C
- Pt100 sensor element with 4-wire output signal
- Stainless steel wetted parts for durability
- Aluminum housing with IP65 enclosure rating
- Fast response time with t50 ≤ 5.8 s and t90 ≤ 15.5 s
- Electrical safety protection class III with 500 V AC dielectric strength
- Shock resistance up to 500 g and vibration resistance of 3 g
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial temperature measurement
- Process monitoring and control
- Environmental and ambient temperature sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Energy-efficient sensor requiring minimal power for operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now

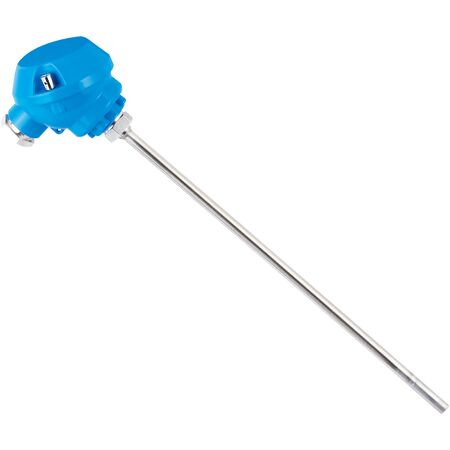

The SICK TBT-1PAZZ1006GZ Pt100 Temperature Sensor Probe is available for immediate purchase, ideal for industrial and process temperature measurement applications.
