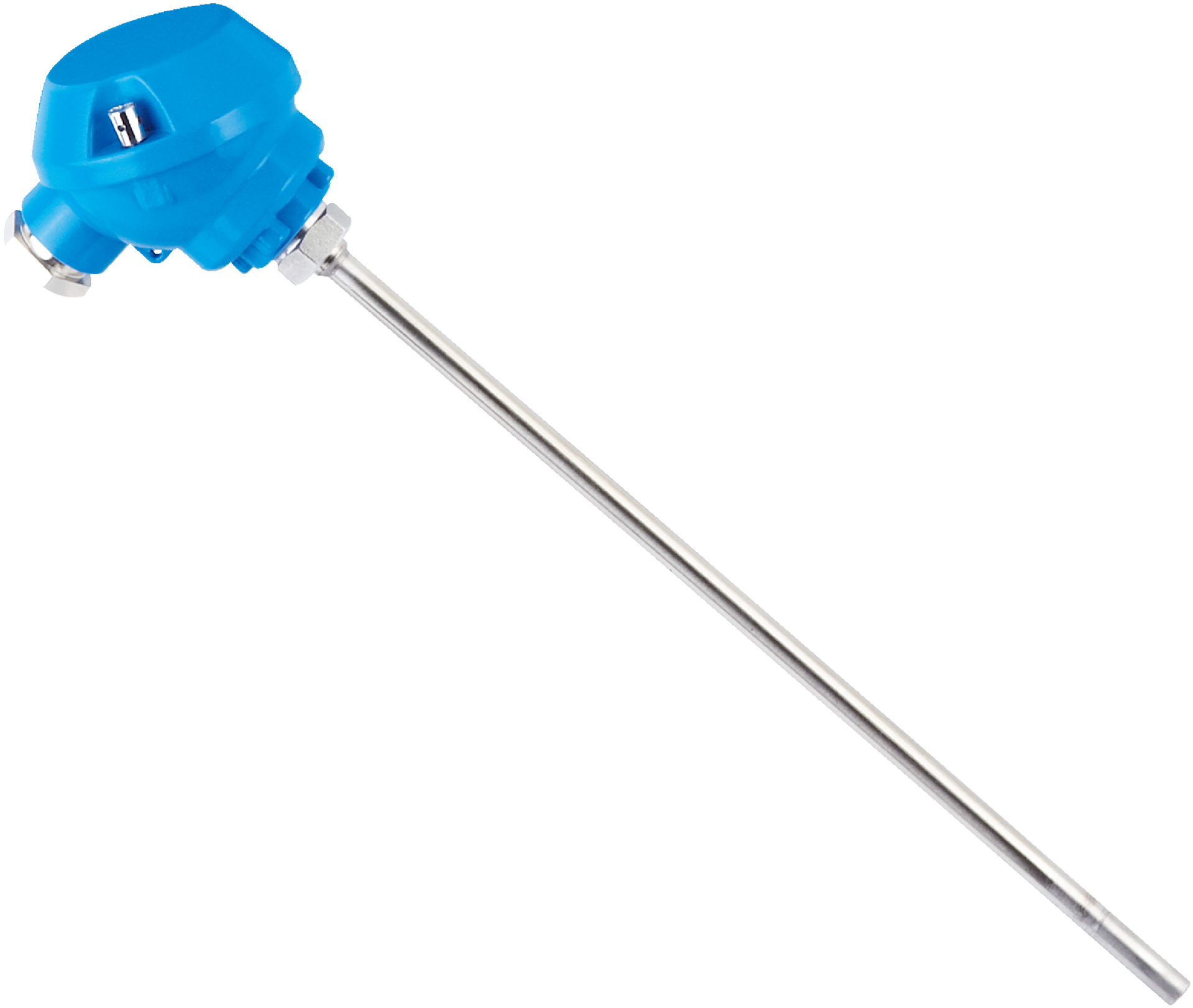

Pt100 Temperature Sensor Probe | -50°C to +150°C Range | IP65 Rated | Fast Response Time | by SICK
The Pt100 Temperature Sensor Probe is designed for precise industrial temperature measurement, featuring a measuring range from -50°C to +150°C and a durable stainless steel construction. With a fast response time and IP65 enclosure rating, it's perfect for process control systems, environmental monitoring, and laboratory applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +150 °C
- Sensor element: Pt100
- Output signal: Pt100, 4-wire
- Insertion length: 350 mm
- Probe diameter: 6 mm
- Wetted parts: Stainless steel 1.4571
- Housing material: Aluminum
- Connection type: Cable gland M16 x 1.5
- Enclosure rating: IP65
- Measuring current: 0.3 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 5.8 s, t90 ≤ 15.5 s
- Shock resistance: 500 g
- Vibration resistance: 3 g
- Initialization time: < 1 ms
- CE conformity: 2004/108/EC, EN 61326-2-3
- Dimensions (H x L x W): 20mm x 350mm x 20mm
- Weight: 0.155 kg
Key Features
- Measuring range from -50 °C to +150 °C
- Pt100 sensor element with 4-wire output signal
- Stainless steel 1.4571 wetted parts for durability
- Aluminum housing with IP65 enclosure rating
- Cable gland M16 x 1.5 connection type
- Class A accuracy according to IEC 60751
- Fast response time: t50 ≤ 5.8 s, t90 ≤ 15.5 s
- Shock resistance up to 500 g and vibration resistance 3 g
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial temperature measurement
- Process control systems
- Environmental monitoring
- Laboratory and research applications
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Energy-efficient sensor requiring minimal power for operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

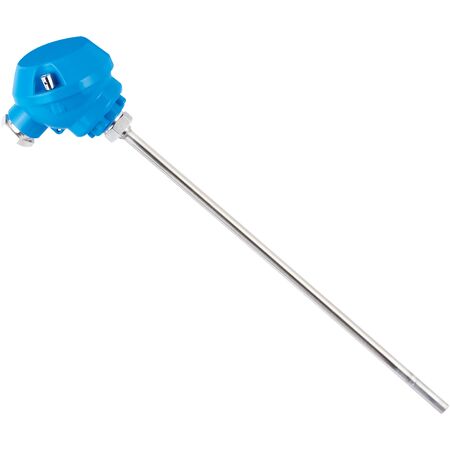

The SICK TBT-1PAZZ3506GZ Pt100 Temperature Sensor Probe is available for immediate purchase, ideal for industrial and process temperature measurement applications.
