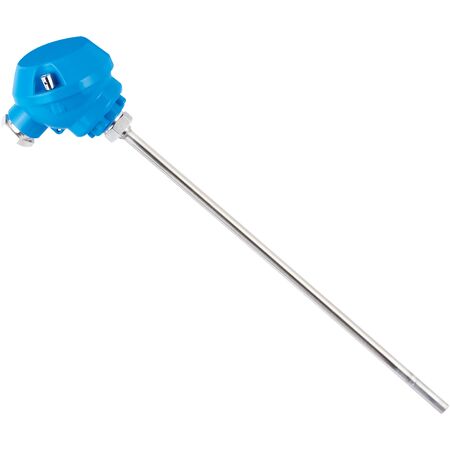

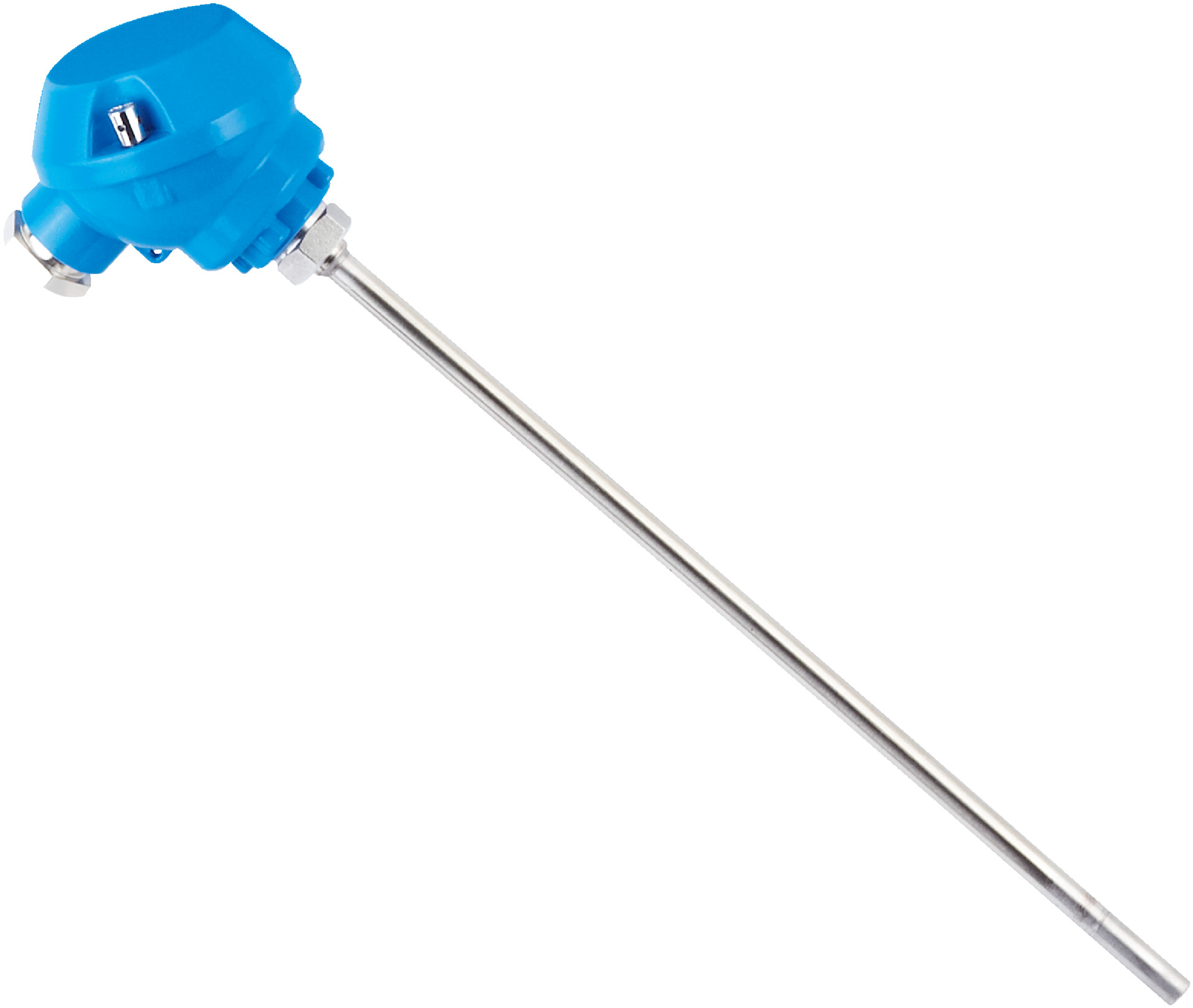

Pt100 Temperature Sensor Probe | -50°C to +150°C Range | Stainless Steel & IP65 Rated | by SICK
The Pt100 Temperature Sensor Probe is designed for precise industrial temperature measurement, featuring a measuring range of -50°C to +150°C and a durable stainless steel construction. With a fast response time and IP65 enclosure rating, it's perfect for process monitoring and environmental sensing, ensuring reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +150 °C
- Sensor element: Pt100
- Output signal: Pt100, 4-wire
- Insertion length: 150 mm
- Probe diameter: 6 mm
- Wetted parts material: Stainless steel 1.4571
- Housing material: Aluminum
- Connection type: Cable gland M16 x 1.5
- Enclosure rating: IP65
- Measuring current: 0.3 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Response time: t50 ≤ 5.8 s, t90 ≤ 15.5 s
- Shock resistance: 500 g
- Vibration resistance: 3 g
- Initialization time: < 1 ms
- CE conformity: 2004/108/EC, EN 61326-2-3
- Dimensions (H x L x W): 20mm x 150mm x 20mm
- Weight: 0.155 kg
Key Features
- Measuring range from -50 °C to +150 °C
- Pt100 sensor element with 4-wire output signal
- Stainless steel 1.4571 wetted parts for durability
- Aluminum housing with IP65 enclosure rating
- Fast response time: t50 ≤ 5.8 s, t90 ≤ 15.5 s
- Electrical safety protection class III with 500 V AC dielectric strength
- Shock resistance up to 500 g and vibration resistance of 3 g
Professional Installation Requirements
- Installation should be performed by qualified personnel to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial temperature measurement
- Process monitoring and control
- Environmental and ambient temperature sensing
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power measuring current (0.3 mA to 1 mA) minimizes energy consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK TBT-1PAZZ1506GZ Pt100 Temperature Sensor Probe is available for immediate purchase, ideal for industrial and process temperature measurement applications.
