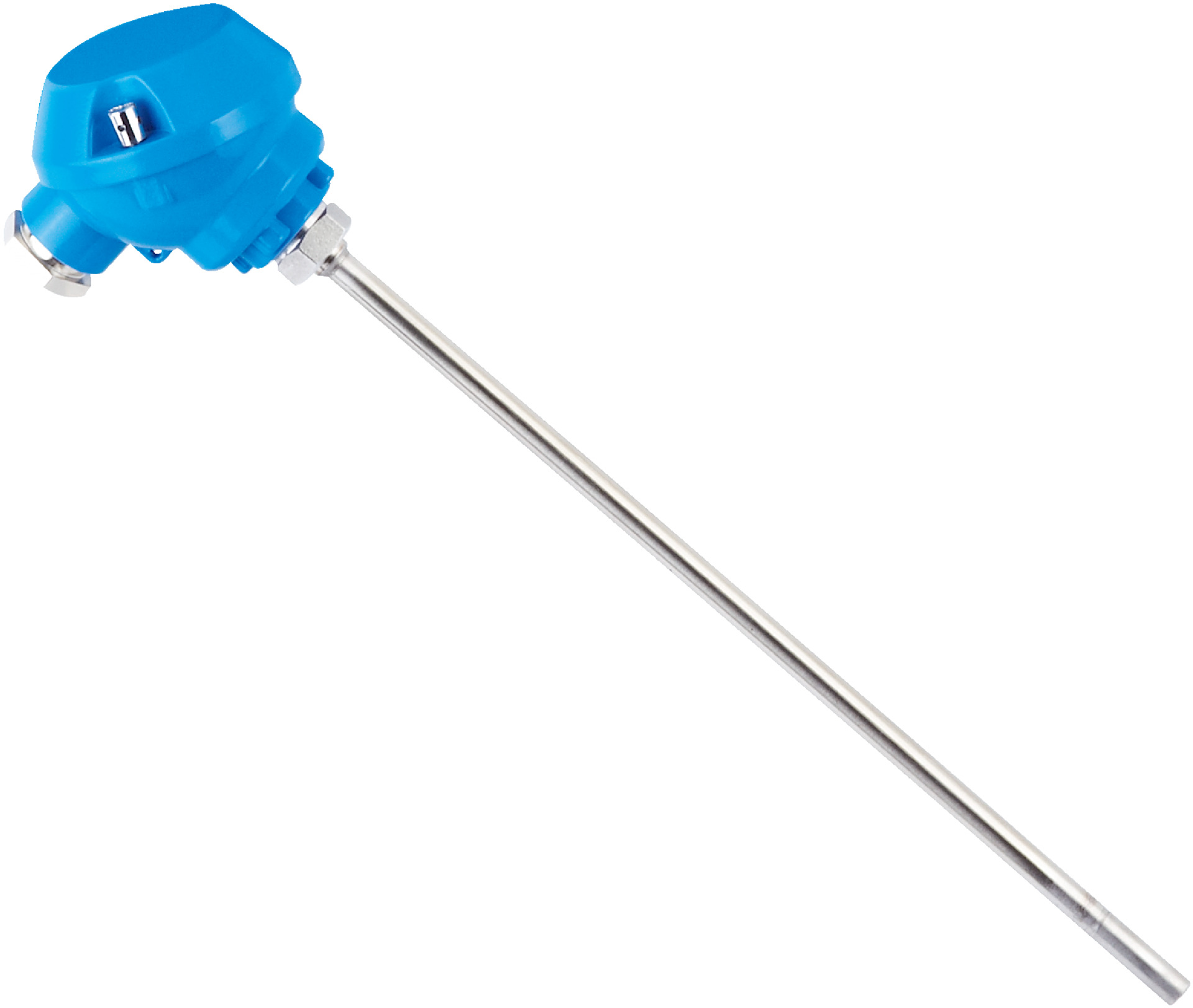

Pt100 Temperature Sensor Probe | -50°C to +250°C Range | 4-Wire Output | IP67 Rated | by SICK
The Pt100 Temperature Sensor Probe is designed for precise industrial temperature measurement, featuring a wide measuring range from -50°C to +250°C and a durable stainless steel construction. With a 4-wire output signal and IP67 enclosure rating, it's perfect for process control systems and environmental monitoring, ensuring reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +250 °C
- Sensor element: Pt100
- Output signal: Pt100, 4-wire
- Insertion length/diameter of probe: 100 mm / 6 mm
- Wetted parts: Stainless steel 1.4571
- Housing material: Aluminum
- Connection type: Cable gland M16 x 1.5
- Enclosure rating: IP67
- Measuring current: 0.3 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 5.8 s, t90 ≤ 15.5 s
- Shock resistance: 500 g (IEC 60751)
- Vibration resistance: 3 g (IEC 60751)
- Initialization time: < 1 ms
- CE conformity: 2004/108/EC, EN 61326-2-3
- Dimensions (H x L x W): 20mm x 100mm x 20mm
- Weight: 0.155 kg
Key Features
- Measuring range from -50 °C to +250 °C
- Pt100 sensor element with 4-wire output signal
- Stainless steel 1.4571 wetted parts for durability
- Aluminum housing with IP67 enclosure rating
- Cable gland M16 x 1.5 connection type
- Class A accuracy according to IEC 60751
- Fast response time: t50 ≤ 5.8 s, t90 ≤ 15.5 s
- Electrical safety protection class III with 500 V AC dielectric strength
- Shock resistance up to 500 g and vibration resistance of 3 g
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial temperature measurement
- Process control systems
- Environmental monitoring
- Laboratory and research applications
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Energy-efficient sensor design minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

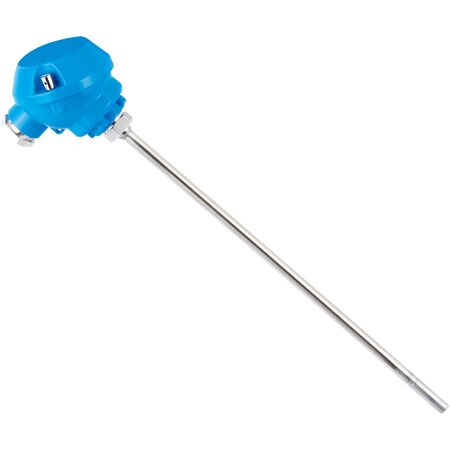

The SICK TBT-1PBZZ1006PZ Pt100 Temperature Sensor Probe is available for immediate purchase, ideal for industrial and process temperature measurement applications.
