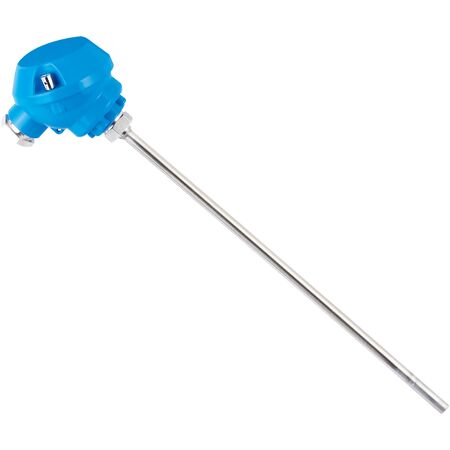

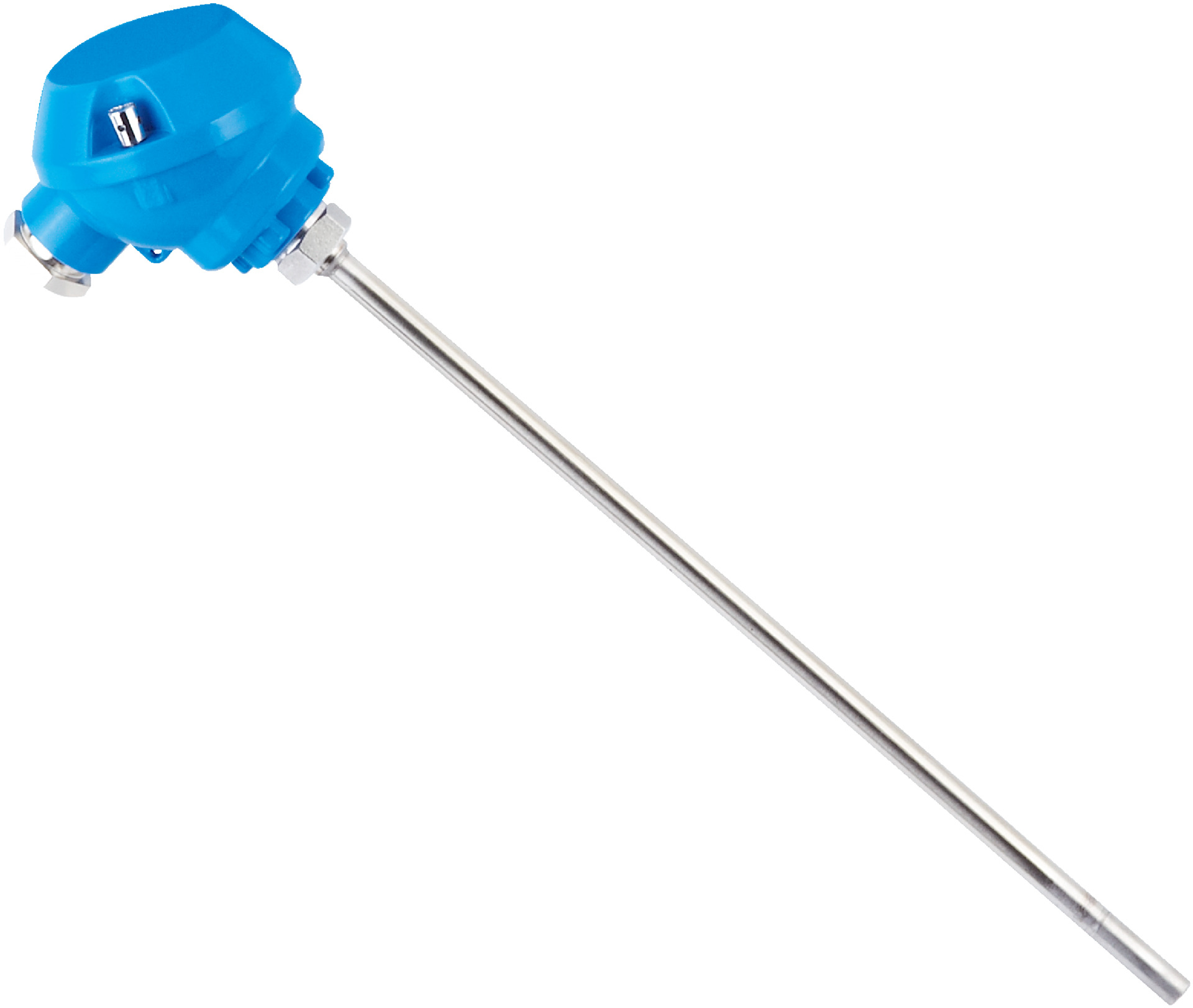

Pt100 Temperature Sensor Probe | -50°C to +250°C Range | IP65 Rated | Fast Response Time | by SICK
The Pt100 Temperature Sensor Probe is designed for precise industrial temperature measurement, featuring a wide measuring range from -50°C to +250°C. With a durable stainless steel construction and an IP65 enclosure rating, it’s perfect for process control systems and environmental monitoring. This sensor ensures fast response times and high accuracy, making it an essential tool for laboratories and research applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +250 °C
- Sensor element: Pt100
- Output signal: Pt100, 4-wire
- Insertion length/diameter of probe: 100 mm / 6 mm
- Wetted parts: Stainless steel 1.4571
- Housing material: Aluminum
- Connection type: Cable gland M16 x 1.5
- Enclosure rating: IP65
- Measuring current: 0.3 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 5.8 s, t90 ≤ 15.5 s
- Shock resistance: 500 g (IEC 60751)
- Vibration resistance: 3 g (IEC 60751)
- Initialization time: < 1 ms
- CE conformity: 2004/108/EC, EN 61326-2-3
- Dimensions (H x L x W): 20mm x 100mm x 20mm
- Weight: 0.155 kg
Key Features
- Measuring range from -50 °C to +250 °C
- Pt100 sensor element with 4-wire output signal
- Stainless steel 1.4571 wetted parts for durability
- Aluminum housing with IP65 enclosure rating
- Fast response time: t50 ≤ 5.8 s, t90 ≤ 15.5 s
- Electrical safety protection class III with 500 V AC dielectric strength
- Shock resistance up to 500 g and vibration resistance of 3 g
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial temperature measurement
- Process control systems
- Environmental monitoring
- Laboratory and research applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low power measuring current minimizes energy consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for specific warranty terms.
Available Now
The SICK TBT-1PBZZ1006GZ Pt100 Temperature Sensor Probe is available for immediate purchase, ideal for industrial and process temperature measurement applications.
