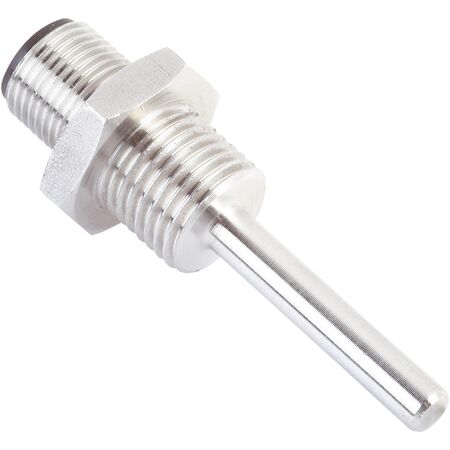

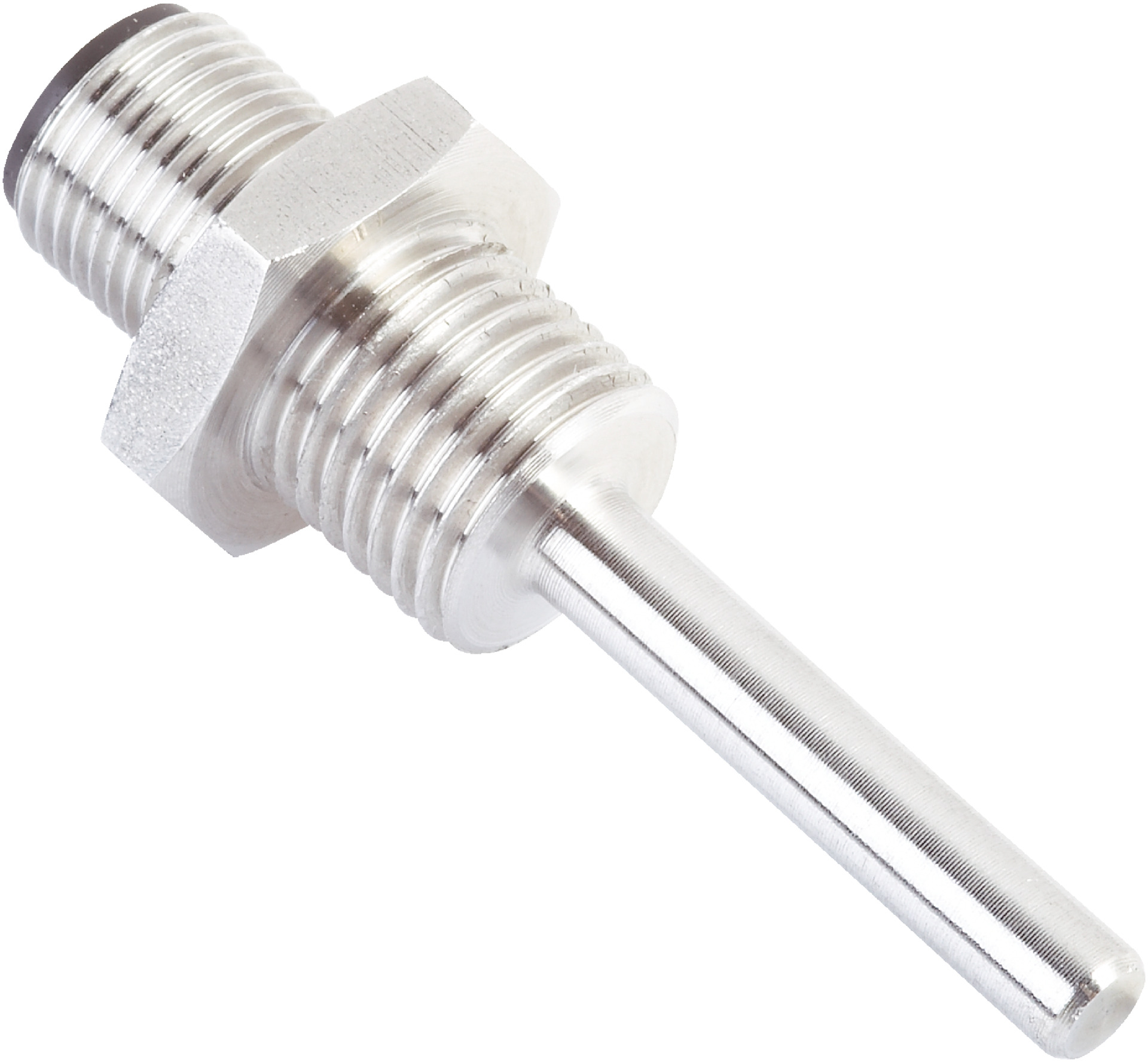

Pt1000 Temperature Sensor | -30°C to +130°C Range | IP67 Rated | Stainless Steel Housing | by SICK
The Pt1000 Temperature Sensor is designed for precise industrial temperature measurement, featuring a measuring range from -30°C to +130°C and an IP67 rated enclosure for protection against dust and water. With a fast response time and high accuracy, it's perfect for process control systems and automation in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -30 °C to +130 °C
- Output signal: Pt1000, 2-wire
- Process connection: Thread G ¼ B
- Insertion length: 30 mm
- Probe diameter: 5 mm
- Wetted parts material: Stainless steel 1,4305
- Housing material: Stainless steel 1,4305
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67
- Measuring current: 0.1 mA to 0.3 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Sensor accuracy: Class B according to IEC 60751
- Response time: t50 ≤ 2.5 s, t90 ≤ 6 s
- Ambient temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +85 °C
- Shock resistance: 500 g
- Vibration resistance: 3 g
- Dimensions (H x L x W): 80mm x 80mm x 20mm
- Weight: 0.1 kg
Key Features
- Measuring range from -30 °C to +130 °C
- Output signal: Pt1000, 2-wire
- Thread G ¼ B process connection
- Insertion length of 30 mm and probe diameter of 5 mm
- Stainless steel 1,4305 housing and wetted parts
- IP67 rated enclosure for protection against dust and water
- Electrical safety: Protection class III with dielectric strength of 500 V AC
- High accuracy Class B sensor element according to IEC 60751
- Fast response time: t50 ≤ 2.5 s, t90 ≤ 6 s
- Shock resistance up to 500 g and vibration resistance of 3 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial temperature sensors and electrical safety standards.
Applications
- Industrial temperature measurement
- Process control systems
- Automation and monitoring in manufacturing
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Energy-efficient sensor design minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK TSP-1MAG10305MZ temperature sensor is available for immediate purchase, ideal for industrial and process control applications.
