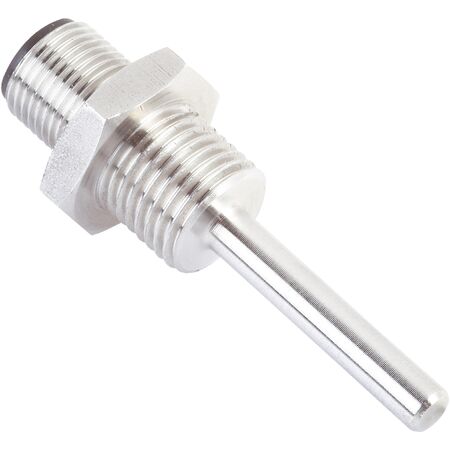

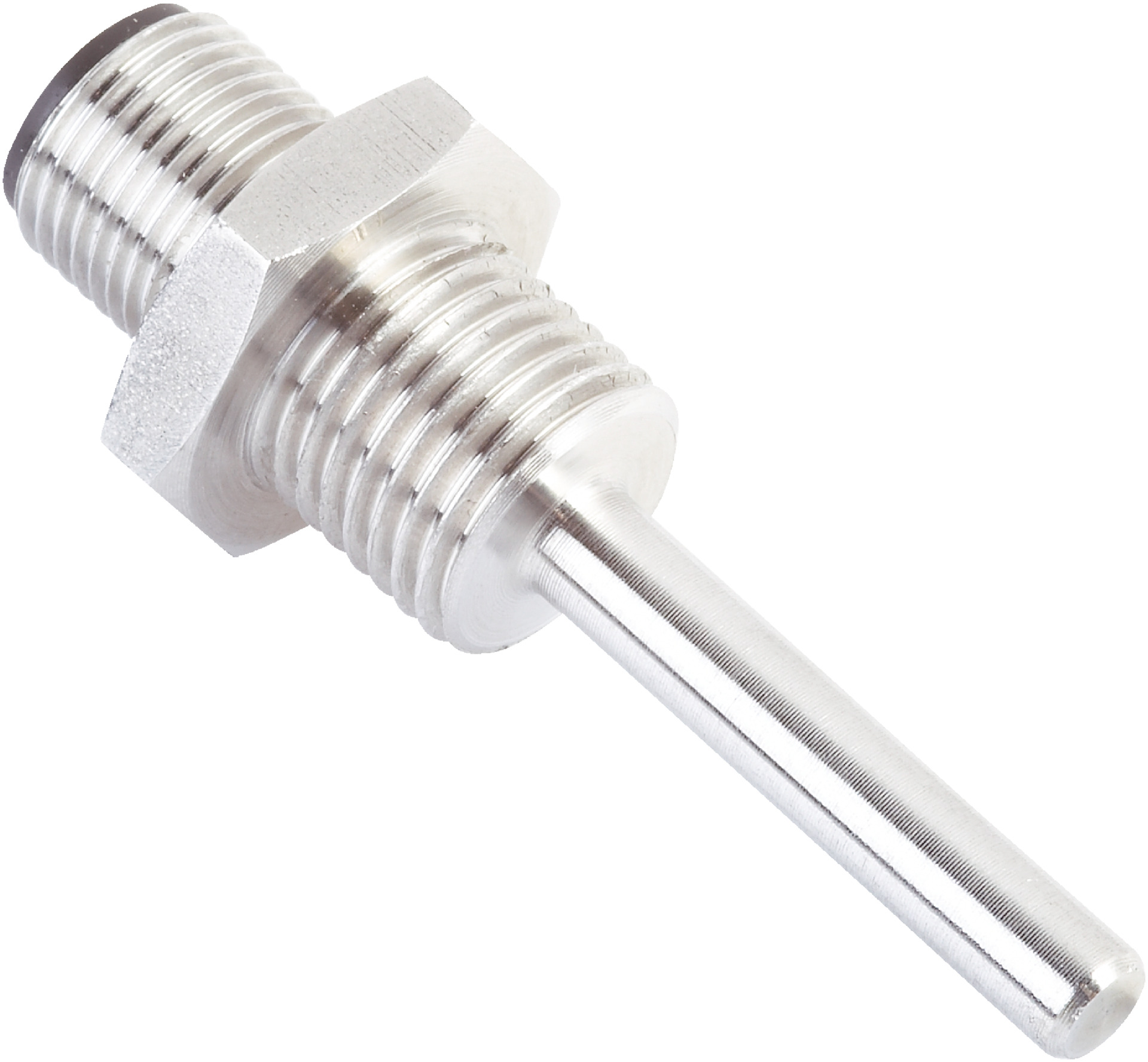

Pt1000 Temperature Sensor | -30°C to +130°C Range | IP67 Rated | Stainless Steel | by SICK
The Pt1000 Temperature Sensor is designed for precise industrial temperature measurement, featuring a measuring range from -30°C to +130°C and an IP67 rated enclosure for protection against dust and water. Built with durable stainless steel, this sensor is ideal for process control systems and HVAC applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -30 °C to +130 °C
- Output signal: Pt1000, 2-wire
- Process connection: Thread G ⅜ B
- Insertion length: 40 mm
- Probe diameter: 5 mm
- Wetted parts material: Stainless steel 1.4305
- Housing material: Stainless steel 1.4305
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67
- Measuring current: 0.1 mA to 0.3 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Sensor accuracy: Class B according to IEC 60751
- Response time: t50 ≤ 2.5 s, t90 ≤ 6 s
- Ambient temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +85 °C
- Shock resistance: 500 g
- Vibration resistance: 3 g
- Dimensions (H x L x W): 50mm x 80mm x 12mm
- Weight: 0.1 kg
Key Features
- Measuring range from -30 °C to +130 °C
- Output signal: Pt1000, 2-wire
- Thread G ⅜ B process connection
- Insertion length of 40 mm and probe diameter of 5 mm
- Stainless steel 1.4305 wetted parts and housing for durability
- IP67 rated enclosure for protection against dust and water
- M12 round connector, 4-pin connection
- Electrical safety: Protection class III with dielectric strength of 500 V AC
- Sensor accuracy Class B according to IEC 60751
- Fast response time: t50 ≤ 2.5 s, t90 ≤ 6 s
- Shock resistance up to 500 g and vibration resistance of 3 g
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial temperature measurement
- Process control systems
- Automation and monitoring in manufacturing
- HVAC systems requiring precise temperature sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste by extending product life
- Energy-efficient sensor design minimizes power consumption during operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK TSP-1MAG30405MZ temperature sensor is available for immediate purchase, ideal for industrial and process temperature measurement applications.
