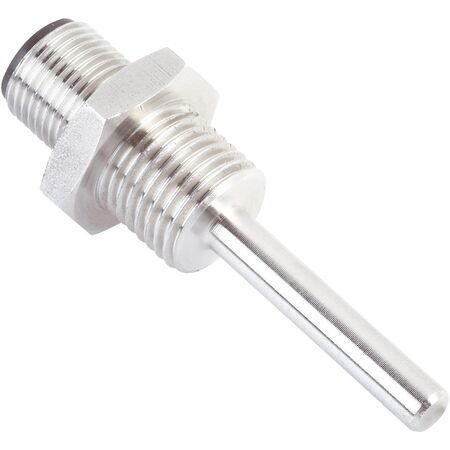

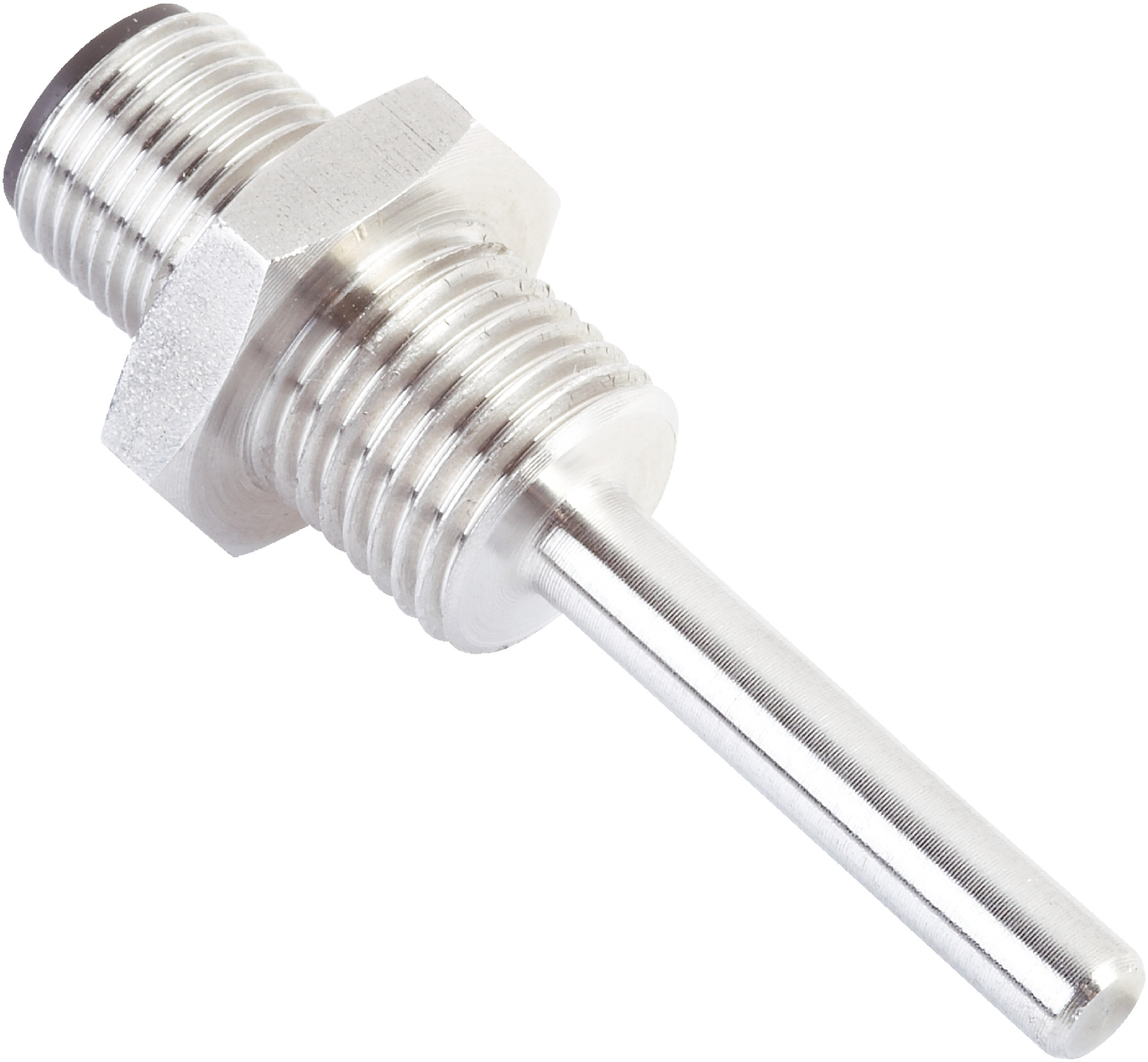

Pt1000 Temperature Sensor | -30°C to +130°C Range | IP67 Rated | Stainless Steel Housing | by SICK
The Pt1000 Temperature Sensor is designed for precise industrial temperature measurement, featuring a measuring range from -30°C to +130°C and an IP67 rated enclosure for dust and water protection. Built with durable stainless steel, this sensor is perfect for process control systems and HVAC applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -30 °C to +130 °C
- Output signal: Pt1000, 2-wire
- Process connection: Thread G ⅜ B
- Insertion length/diameter of probe: 50 mm / 6 mm
- Wetted parts: Stainless steel 1.4305
- Housing material: Stainless steel 1.4305
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67
- Measuring current: 0.1 mA to 0.3 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Accuracy: Class B according to IEC 60751
- Response time: t50 ≤ 2.5 s, t90 ≤ 6 s
- Ambient temperature: -40 °C to +100 °C
- Storage temperature: -40 °C to +85 °C
- Shock resistance: 500 g
- Vibration resistance: 3 g
- Dimensions (H x L x W): 60mm x 80mm x 12mm
- Weight: 0.1 kg
Key Features
- Measuring range from -30 °C to +130 °C
- Output signal: Pt1000, 2-wire
- Thread G ⅜ B process connection
- Insertion length of probe: 50 mm with 6 mm diameter
- Stainless steel 1.4305 wetted parts and housing
- IP67 rated enclosure for dust and water protection
- M12 round connector, 4-pin connection
- Protection class III with dielectric strength of 500 V AC
- Sensor accuracy Class B according to IEC 60751
- Fast response time: t50 ≤ 2.5 s, t90 ≤ 6 s
- Shock resistance up to 500 g and vibration resistance 3 g
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial temperature measurement
- Process control systems
- Automation and monitoring in manufacturing
- HVAC systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Energy-efficient sensor design minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK TSP-1MAG30506MZ temperature sensor is available for immediate purchase, ideal for industrial and process temperature measurement applications.
