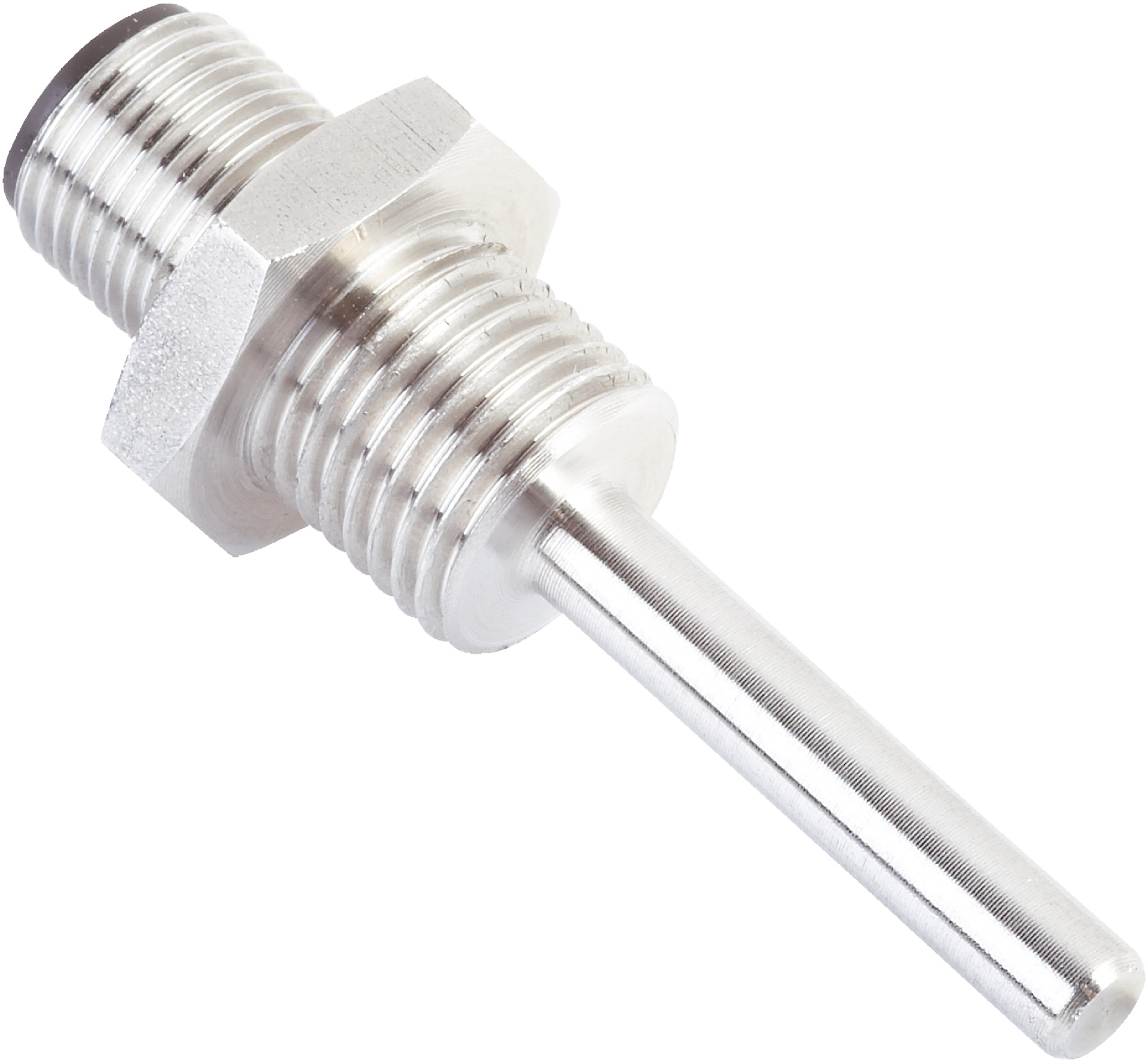

Pt1000 Temperature Sensor | -30°C to +130°C Range | IP67 Rated | Stainless Steel Housing | by SICK
The Pt1000 Temperature Sensor is designed for precise industrial temperature measurement, featuring a measuring range from -30°C to +130°C and an IP67 rated enclosure for dust and water protection. With a fast response time and high accuracy, it's perfect for process control systems and automation in manufacturing, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: –30 °C to +130 °C
- Output signal: Pt1000, 2-wire
- Process connection: Thread G ⅜ B
- Insertion length: 60 mm
- Probe diameter: 6 mm
- Housing and wetted parts: Stainless steel 1,4305
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67
- Measuring current: 0.1 mA to 0.3 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Sensor accuracy: Class B according to IEC 60751
- Response time: t50 ≤ 2.5 s, t90 ≤ 6 s
- Ambient temperature range: –40 °C to +100 °C
- Storage temperature: –40 °C to +85 °C
- Shock resistance: 500 g
- Vibration resistance: 3 g
- Dimensions (H x L x W): 60mm x 60mm x 12mm
- Weight: 0.1 kg
Key Features
- Measuring range from –30 °C to +130 °C
- Output signal: Pt1000, 2-wire
- Thread G ⅜ B process connection
- Insertion length of 60 mm and probe diameter of 6 mm
- Stainless steel 1,4305 housing and wetted parts
- IP67 rated enclosure for dust and water protection
- Electrical safety: Protection class III with dielectric strength of 500 V AC
- High accuracy Class B sensor element according to IEC 60751
- Fast response time: t50 ≤ 2.5 s, t90 ≤ 6 s
- Shock resistance up to 500 g and vibration resistance of 3 g
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial temperature measurement
- Process control systems
- Automation and monitoring in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Energy-efficient sensor design minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

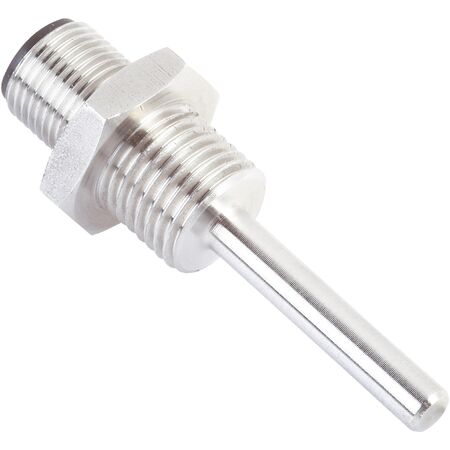

The SICK TSP-1MAG30606MZ temperature sensor is available for immediate purchase, ideal for industrial and process control applications.
