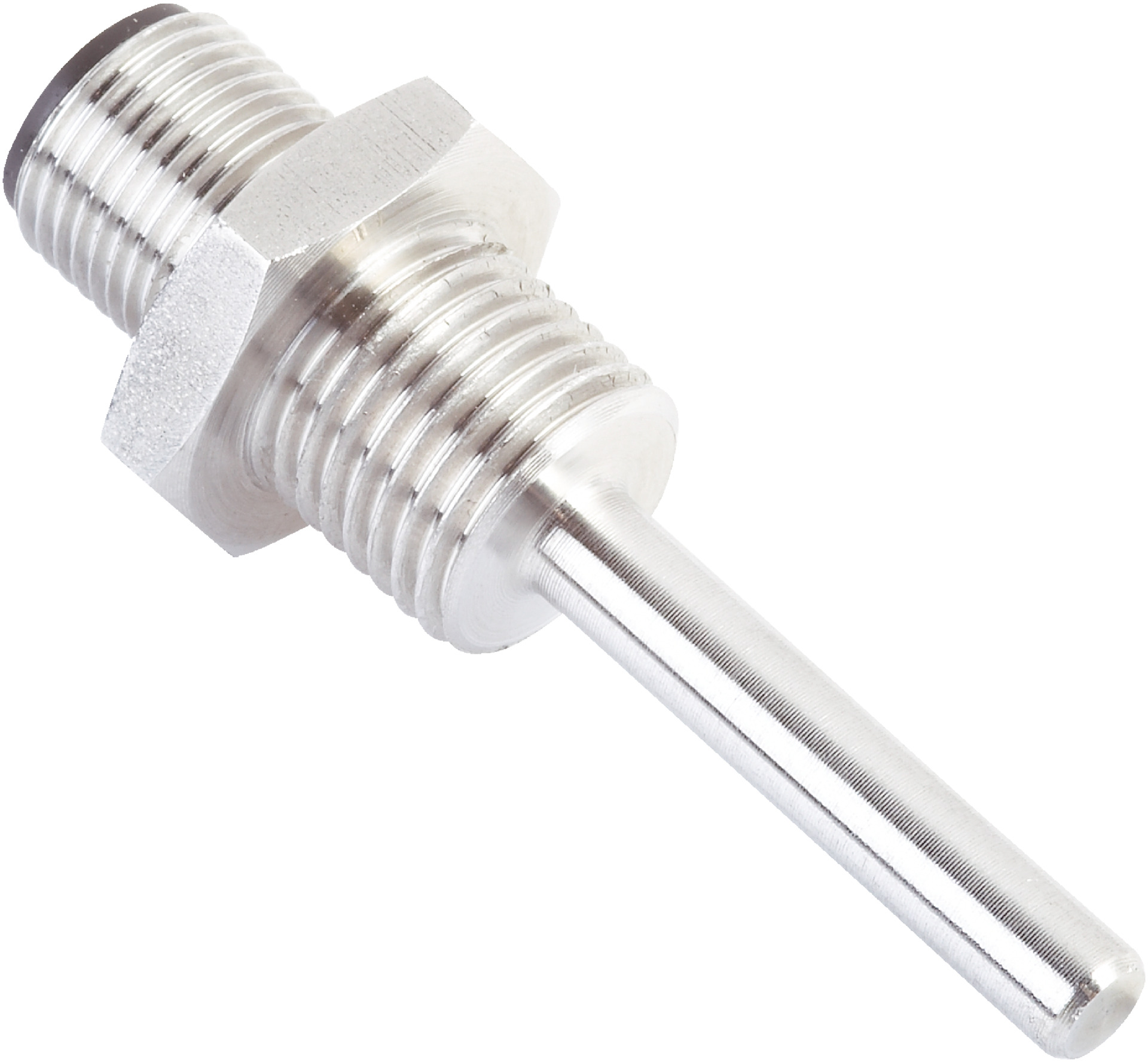

Pt1000 Temperature Sensor | -30°C to +130°C Range | IP67 Rated | Stainless Steel Housing | by SICK
The Pt1000 Temperature Sensor is designed for precise industrial temperature measurement, featuring a measuring range from -30°C to +130°C and an IP67 rated enclosure for protection against dust and water. Ideal for process control systems and HVAC applications, this durable sensor ensures high accuracy and fast response times, making it perfect for automation and monitoring in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: –30 °C to +130 °C
- Output signal: Pt1000, 2-wire
- Process connection: Thread M14 x 1.5
- Insertion length: 40 mm
- Probe diameter: 5 mm
- Wetted parts and housing: Stainless steel 1.4305
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67
- Measuring current: 0.1 mA to 0.3 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Sensor accuracy: Class B according to IEC 60751
- Response time: t50 ≤ 2.5 s, t90 ≤ 6 s
- Ambient temperature range: –40 °C to +100 °C
- Storage temperature: –40 °C to +85 °C
- Shock resistance: 500 g
- Vibration resistance: 3 g
- Dimensions (H x L x W): 40mm x 40mm x 14mm
- Weight: 0.1 kg
Key Features
- Measuring range from –30 °C to +130 °C
- Output signal: Pt1000, 2-wire
- Thread M14 x 1.5 process connection
- Insertion length of 40 mm and probe diameter of 5 mm
- Stainless steel 1.4305 wetted parts and housing for durability
- IP67 rated enclosure for protection against dust and water
- Electrical safety: Protection class III with dielectric strength of 500 V AC
- High accuracy sensor element Class B according to IEC 60751
- Fast response time: t50 ≤ 2.5 s, t90 ≤ 6 s
- Shock resistance up to 500 g and vibration resistance of 3 g
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial temperature measurement
- Process control systems
- Automation and monitoring in manufacturing
- HVAC systems
- Laboratory and testing environments
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Energy-efficient sensor requiring minimal power for operation
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

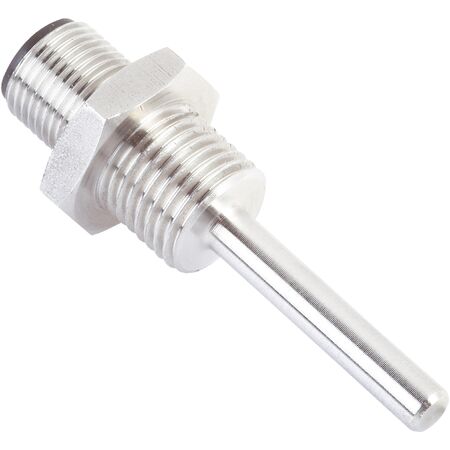

The SICK TSP-1MAM10405MZ temperature sensor probe is available for immediate purchase, ideal for industrial and process temperature measurement applications.
