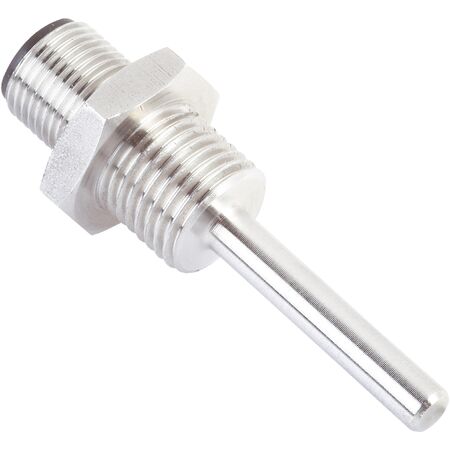

Pt1000 Temperature Sensor | -30°C to +130°C Range | IP67 Rated | Stainless Steel Housing | by SICK
The Pt1000 Temperature Sensor is designed for precise industrial temperature measurement, featuring a measuring range from -30°C to +130°C and an IP67 rated enclosure for dust and water protection. Built with durable stainless steel, this sensor ensures reliability in process control systems and automation, making it ideal for manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -30 °C to +130 °C
- Output signal: Pt1000, 2-wire
- Process connection: Thread M14 x 1.5
- Insertion length: 50 mm
- Probe diameter: 6 mm
- Wetted parts material: Stainless steel 1.4305
- Housing material: Stainless steel 1.4305
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67
- Measuring current: 0.1 mA to 0.3 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Sensor accuracy: Class B according to IEC 60751
- Response time: t50 ≤ 2.5 s, t90 ≤ 6 s
- Ambient temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +85 °C
- Shock resistance: 500 g
- Vibration resistance: 3 g
- Dimensions (H x L x W): 50mm x 50mm x 14mm
- Weight: 0.1 kg
Key Features
- Measuring range from -30 °C to +130 °C
- Output signal: Pt1000, 2-wire
- Thread M14 x 1.5 process connection
- Insertion length of 50 mm and probe diameter of 6 mm
- Stainless steel 1.4305 housing and wetted parts
- IP67 rated enclosure for dust and water protection
- Electrical safety: Protection class III with 500 V AC dielectric strength
- Sensor accuracy Class B according to IEC 60751
- Fast response time: t50 ≤ 2.5 s, t90 ≤ 6 s
- Shock resistance up to 500 g and vibration resistance of 3 g
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial temperature measurement
- Process control systems
- Automation and monitoring in manufacturing
Standards & Compliance
- Complies with AS/NZS 60335 for electrical safety and performance of electrical equipment
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Energy-efficient sensor requiring minimal power for operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK TSP-1MAM10506MZ temperature sensor is available for immediate purchase, ideal for industrial and process temperature measurement applications.
