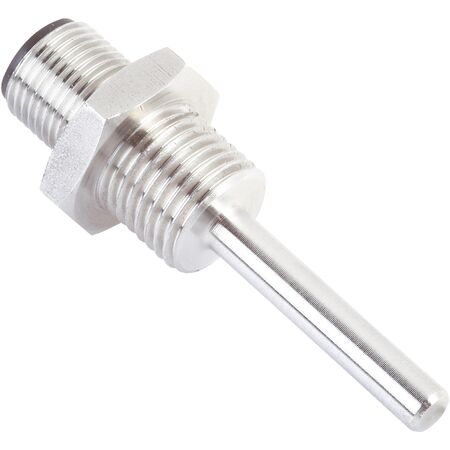

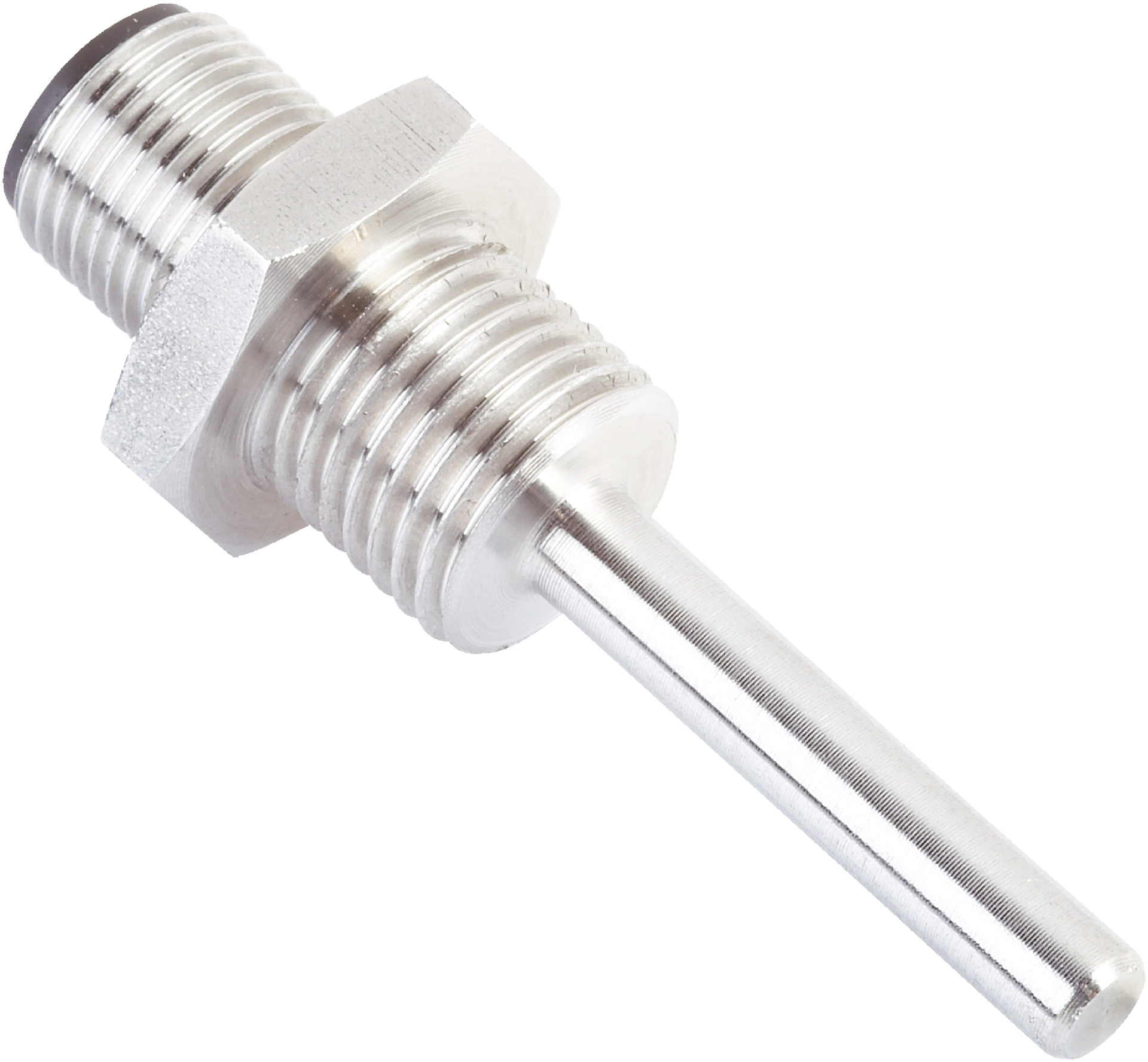

Pt1000 Temperature Sensor | -30°C to +130°C Range | IP67 Rated | Stainless Steel Housing | by SICK
The Pt1000 Temperature Sensor is designed for precise industrial temperature measurement, featuring a measuring range from -30°C to +130°C and an IP67 rated enclosure for dust and water protection. With a fast response time and durable stainless steel construction, it's perfect for process control systems and automation in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -30 °C to +130 °C
- Output signal: Pt1000, 2-wire
- Process connection: Thread M14 x 1.5
- Insertion length: 60 mm
- Probe diameter: 6 mm
- Wetted parts material: Stainless steel 1.4305
- Housing material: Stainless steel 1.4305
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67
- Measuring current: 0.1 mA to 0.3 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Sensor accuracy: Class B according to IEC 60751
- Response time: t50 ≤ 2.5 s, t90 ≤ 6 s
- Ambient temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +85 °C
- Shock resistance: 500 g
- Vibration resistance: 3 g
- Dimensions (H x L x W): 60mm x 60mm x 14mm
- Weight: 0.1 kg
Key Features
- Measuring range from -30 °C to +130 °C
- Output signal: Pt1000, 2-wire
- Thread M14 x 1.5 process connection
- Insertion length of 60 mm and probe diameter of 6 mm
- Stainless steel 1.4305 housing and wetted parts
- IP67 rated enclosure for dust and water protection
- M12 round connector, 4-pin connection
- Protection class III with dielectric strength of 500 V AC
- Sensor accuracy Class B according to IEC 60751
- Fast response time: t50 ≤ 2.5 s, t90 ≤ 6 s
- Shock resistance up to 500 g and vibration resistance of 3 g
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial temperature measurement
- Process control systems
- Automation and monitoring in manufacturing
Standards & Compliance
- Complies with AS/NZS 60335 for electrical safety and performance
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Energy-efficient sensor design minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK TSP-1MAM10606MZ temperature sensor is available for immediate purchase, ideal for industrial and process temperature measurement applications.
