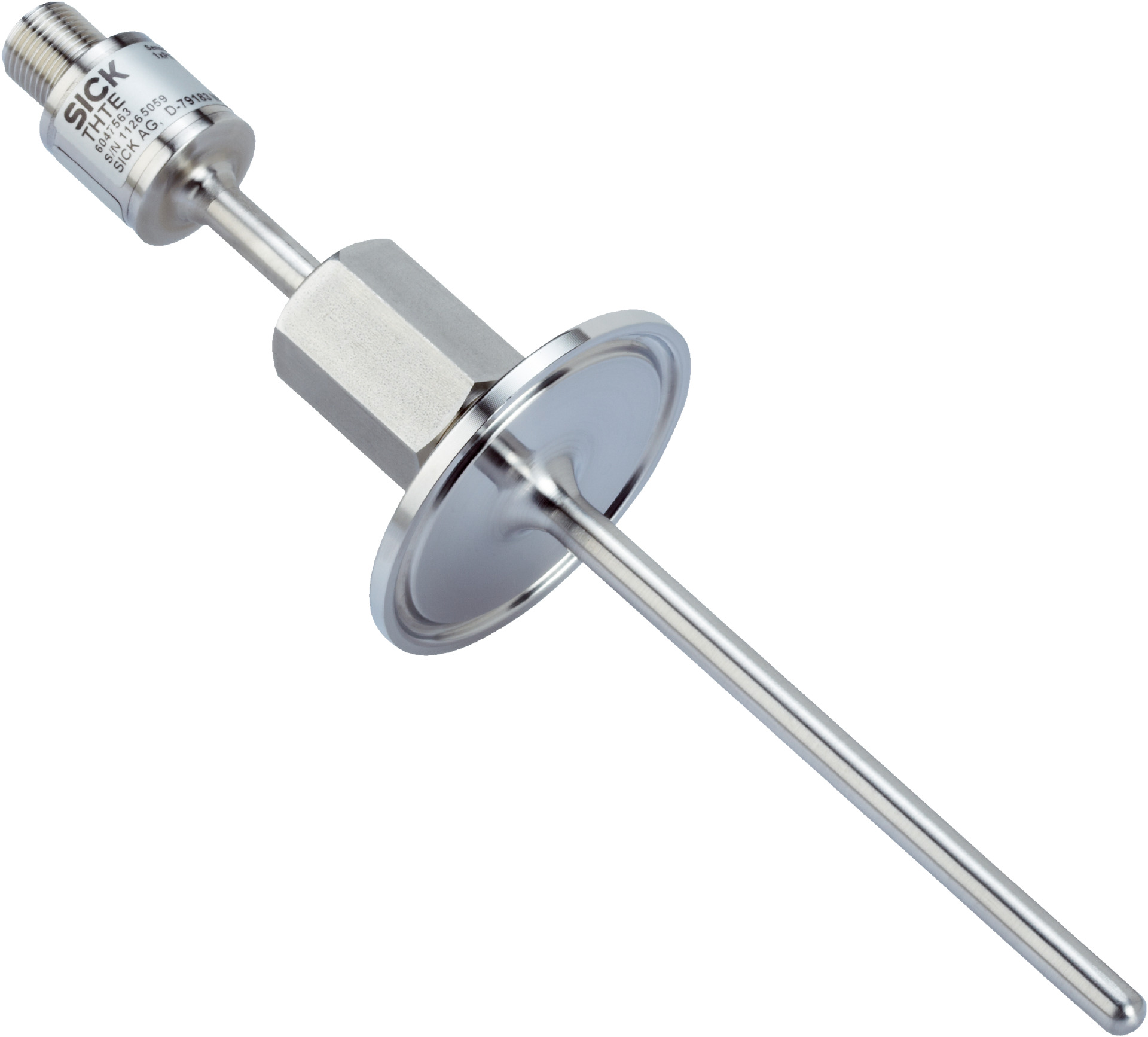

Pt1000 Temperature Sensor | -50°C to +150°C Range | 4-20mA Output | Hygienic Tri-clamp Design | by SICK

BRAND: SICK
SKU: 6047632
$1,544.10 List price: $1,940.80
+ −
30 Days Return Electricians Unlock Trade Access
The Pt1000 Temperature Sensor is designed for precise temperature measurement in industrial applications, featuring a measuring range from -50°C to +150°C and a 4-20mA output signal. Ideal for the food and beverage industry, this hygienic sensor with tri-clamp connections ensures compliance with safety standards while providing accurate readings in demanding environments.
Technical Specifications
  • Measuring range: -50 °C to +150 °C
  • Sensor element: Pt1000
  • Output signal: 4 mA to 20 mA, 2-wire
  • Maximum ohmic load RA: RA ≤ (L + – 10 V) / 0.023 A [Ohm]
  • Process connection: Tri-clamp 1'', 1 ½''
  • Insertion length/diameter of probe: 100 mm / 6 mm
  • Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
  • Maximum process pressure: ≤ 16 bar
  • Housing material: Stainless steel (CrNi)
  • Connection type: M12 round connector x 1, 4-pin
  • Enclosure rating: IP67, IP69
  • Supply voltage: 15 V DC to 35 V DC
  • Maximum current consumption: ≤ 30 mA
  • Electrical safety: Protection class III, dielectric strength 500 V AC, reverse polarity protection
  • Accuracy: Class A according to IEC 60751
  • Response time: t50 ≤ 4.7 s, t90 ≤ 12.2 s
  • Ambient temperature: -40 °C to +85 °C
  • Shock resistance: 50 g, 6 ms
  • Dimensions (H x L x W): 120mm x 100mm x 20mm
  • Weight: 0.3 kg
Key Features
  • Measuring range from -50 °C to +150 °C
  • Pt1000 sensor element for precise temperature measurement
  • 2-wire 4 mA to 20 mA output signal
  • Tri-clamp 1'' and 1 ½'' process connections for hygienic applications
  • Stainless steel 1.4435 / 316L wetted parts with Ra ≤ 0.8 µm surface finish
  • IP67 and IP69 rated enclosure for protection against dust and water ingress
  • Supply voltage range 15 V DC to 35 V DC
  • Electrical safety with protection class III and dielectric strength 500 V AC
  • Shock resistance up to 50 g, 6 ms
  • Class A accuracy according to IEC 60751
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
  • Industrial temperature measurement in process control
  • Food and beverage industry requiring hygienic sensor design
  • Pharmaceutical manufacturing with sanitary process connections
  • Chemical and petrochemical plants monitoring temperature under pressure
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable stainless steel construction reduces waste and extends product life
  • Accurate temperature measurement improves process efficiency and energy use
  • IP67/IP69 protection reduces risk of contamination and product loss
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

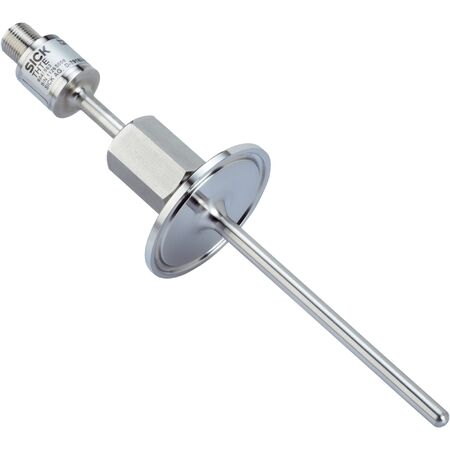

The SICK THTE-1AAT11006MZ temperature sensor is available for immediate purchase, ideal for hygienic industrial temperature measurement applications.
