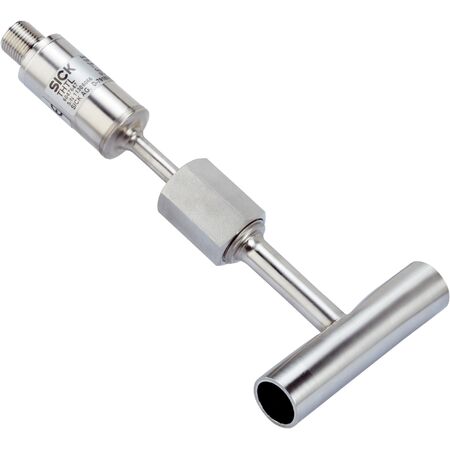

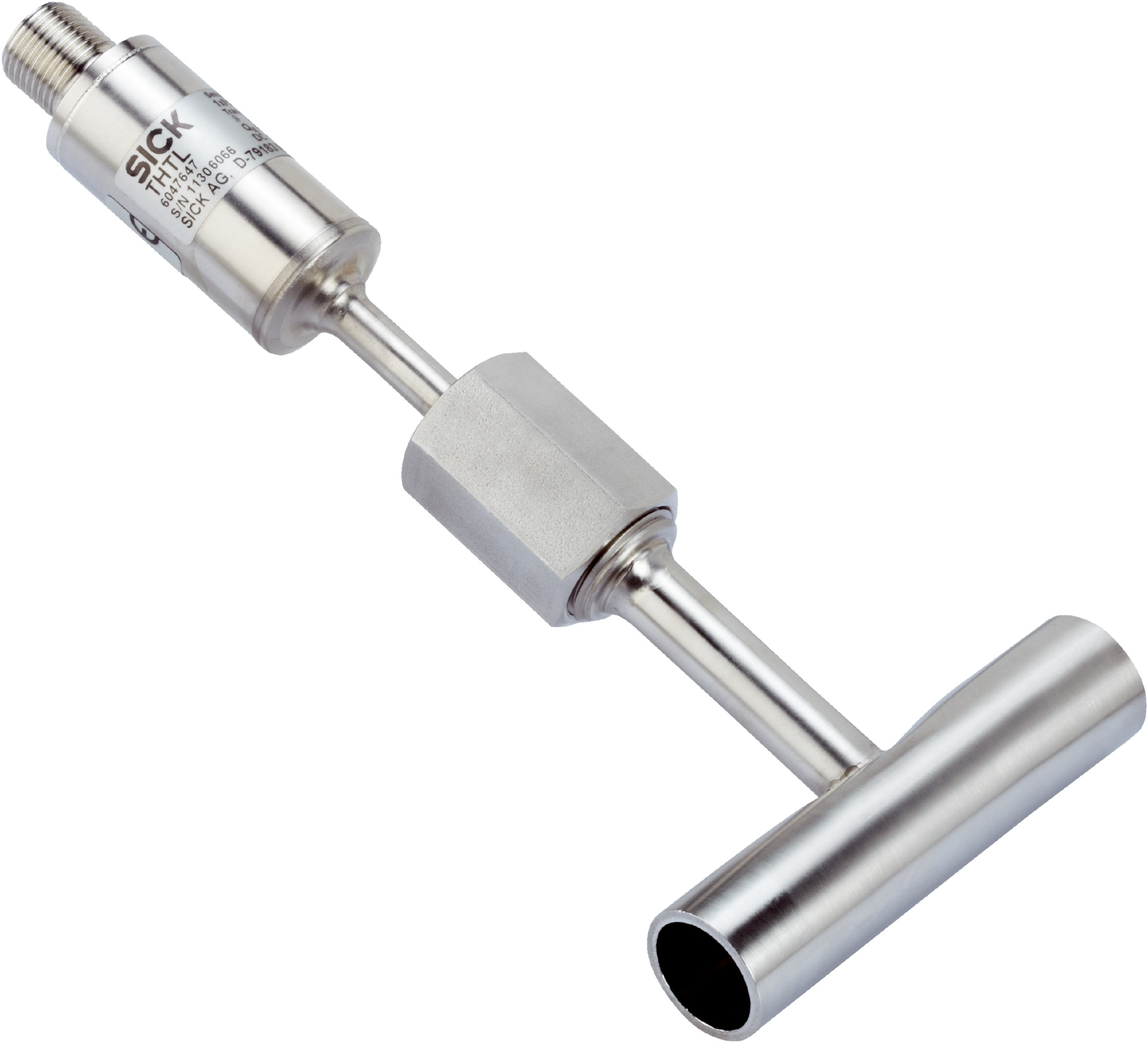

Pt1000 Temperature Sensor | -50°C to +150°C Range | 4-20mA Output | IP67 & IP69 Rated | by SICK
The Pt1000 Temperature Sensor is designed for precise temperature measurement in industrial applications, featuring a measuring range from -50°C to +150°C and a reliable 4-20mA output signal. Built with durable stainless steel and rated IP67 and IP69, it ensures robust protection in harsh environments, making it ideal for process control in chemical, pharmaceutical, and food industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +150 °C
- Sensor element: Pt1000
- Output signal: 4 mA to 20 mA, 2-wire
- Maximum ohmic load RA: RA ≤ (L + -10 V) / 0.023 A [Ohm]
- Process connection: Angled pipe (DIN EN ISO 1127 and DIN 11866), row B, for welding
- Nominal width: DN 21.3
- Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
- Maximum process pressure: ≤ 25 bar
- Housing material: Stainless steel (CrNi)
- Connection type: M12 round connector x 1, 4-pin
- Enclosure rating: IP67 and IP69
- Supply voltage: 10 V DC to 35 V DC
- Maximum current consumption: Approx. 30 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC, reverse polarity protection
- Accuracy of sensor element: Class A according to IEC 60751
- Transmitter accuracy: ± 0.25 K
- Response time: t50 ≤ 3.2 s, t90 ≤ 9.1 s
- Ambient temperature: -40 °C to +85 °C
- Storage and transport temperature: -40 °C to +85 °C
- Shock resistance: 50 g, 6 ms (IEC 60068-2-27)
- Relative humidity: ≤ 100%
- Dimensions (H x L x W): 150mm x 150mm x 30mm
- Weight: 0.3 kg
Key Features
- Measuring range from -50 °C to +150 °C
- Pt1000 sensor element for precise temperature measurement
- 2-wire 4 mA to 20 mA output signal
- Stainless steel 1.4435 / 316L wetted parts with Ra ≤ 0.8 µm
- Angled pipe process connection for welding (DIN EN ISO 1127 and DIN 11866)
- IP67 and IP69 rated enclosure for robust protection
- Supply voltage range 10 V DC to 35 V DC
- Electrical safety with protection class III and dielectric strength 500 V AC
- Reverse polarity protection included
- Fast response time: t50 ≤ 3.2 s, t90 ≤ 9.1 s
- Shock resistant up to 50 g, 6 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial temperature sensors and electrical safety standards.
Applications
- Industrial temperature measurement in process control
- Monitoring temperature in chemical and pharmaceutical industries
- Use in food and beverage processing plants
- Suitable for hygienic and sterile environments
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption with efficient 2-wire 4-20mA output
- High accuracy reduces energy waste in process control
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK THTL-1AAAB0213MZ temperature sensor is available for immediate purchase, ideal for industrial process temperature monitoring and control applications.
