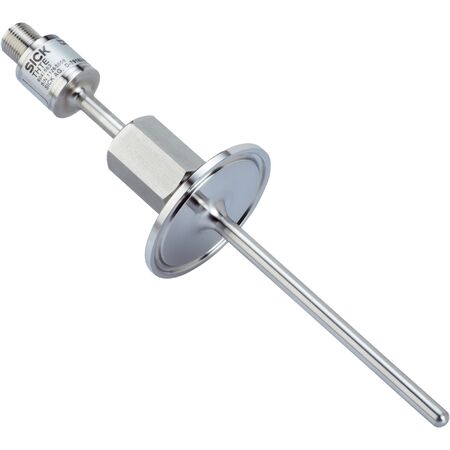

Pt1000 Temperature Sensor | -50°C to +150°C Range | Hygienic Design | IP67 & IP69 Rated | by SICK
The Pt1000 Temperature Sensor is designed for precise temperature measurement in industrial and hygienic applications, featuring a measuring range from -50°C to +150°C. With a robust stainless steel construction and IP67/IP69 ratings, it ensures reliable performance in harsh environments, making it ideal for food and beverage industries, as well as chemical processing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +150 °C
- Sensor element: Pt1000
- Output signal: 4 mA to 20 mA, 2-wire
- Maximum ohmic load RA: RA ≤ (L + – 10 V) / 0.023 A [Ohm]
- Process connection: Conical coupling (DIN 11851) DN 40 with union nut
- Insertion length/diameter of probe: 100 mm / 6 mm
- Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
- Maximum process pressure: ≤ 40 bar
- Housing material: Stainless steel (CrNi)
- Connection type: M12 round connector x 1, 4-pin
- Enclosure rating: IP67 and IP69
- Supply voltage: 15 V DC to 35 V DC
- Maximum current consumption: ≤ 30 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC, reverse polarity protection
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 4.7 s, t90 ≤ 12.2 s
- Ambient temperature: -40 °C to +85 °C
- Storage temperature: -40 °C to +85 °C
- Shock resistance: 50 g, 6 ms (IEC 60068-2-27)
- Relative humidity: ≤ 100%
- CE conformity: 2004/108/EC, EN 61326-2-3
- Dimensions (H x L x W): 100mm x 100mm x 40mm
- Weight: 0.3 kg
Key Features
- Measuring range from -50 °C to +150 °C
- Pt1000 sensor element for precise temperature measurement
- 2-wire 4 mA to 20 mA output signal
- Conical coupling (DIN 11851) DN 40 with union nut for hygienic process connection
- Stainless steel 1.4435 / 316L wetted parts with Ra ≤ 0.8 µm surface finish
- Maximum process pressure up to 40 bar
- IP67 and IP69 rated enclosure for protection against dust and water
- M12 round 4-pin connector for electrical connection
- Supply voltage range 15 V DC to 35 V DC
- Electrical safety with protection class III and dielectric strength 500 V AC
- Reverse polarity protection included
- Fast initialization time of max. 4 seconds
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial temperature measurement in process control
- Food and beverage industry requiring hygienic sensor design
- Chemical and pharmaceutical processing with high pressure conditions
- General temperature monitoring in harsh environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption with efficient 2-wire 4-20mA output
- High resistance to harsh environments reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK THTE-1AA541006MZ temperature sensor is available for immediate purchase, ideal for industrial and hygienic process temperature measurement applications.
