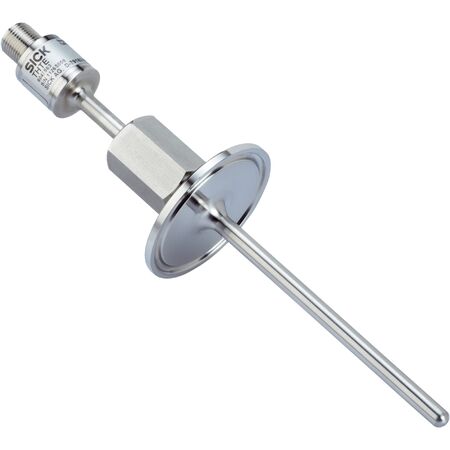

Pt1000 Temperature Sensor | -50°C to +150°C Range | Hygienic Tri-clamp Design | IP67 & IP69 Rated | by SICK
The Pt1000 Temperature Sensor is designed for precise temperature measurement in industrial and hygienic applications, featuring a measuring range from -50°C to +150°C. With a robust stainless steel construction and IP67/IP69 ratings, it ensures reliable performance in harsh environments. Ideal for food and beverage, pharmaceutical, and chemical processing, this sensor offers a 4-20mA output signal for seamless integration into process control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +150 °C
- Sensor element: Pt1000
- Output signal: 4 mA to 20 mA, 2-wire
- Maximum ohmic load RA: RA ≤ (L + - 10 V) / 0.023 A [Ohm]
- Process connection: Tri-clamp 1'', 1 ½''
- Insertion length/diameter of probe: 25 mm / 6 mm
- Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
- Maximum process pressure: ≤ 16 bar
- Housing material: Stainless steel (CrNi)
- Connection type: M12 round connector x 1, 4-pin
- Enclosure rating: IP67, IP69
- Supply voltage: 15 V DC to 35 V DC
- Maximum current consumption: ≤ 30 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC, reverse polarity protection
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 4.7 s, t90 ≤ 12.2 s
- Ambient temperature: -40 °C to +85 °C
- Storage temperature: -40 °C to +85 °C
- Shock resistance: 50 g, 6 ms
- Relative humidity: ≤ 100%
- Dimensions (H x L x W): 150mm x 150mm x 25mm
- Weight: 0.3 kg
Key Features
- Measuring range from -50 °C to +150 °C
- Pt1000 sensor element for precise temperature measurement
- 2-wire 4 mA to 20 mA output signal
- Tri-clamp process connection (1'' and 1 ½'') for hygienic applications
- Stainless steel 1.4435 / 316L wetted parts with Ra ≤ 0.8 µm surface finish
- IP67 and IP69 rated enclosure for protection against dust and water
- Maximum process pressure up to 16 bar
- M12 round 4-pin connector for electrical connection
- Supply voltage range 15 V DC to 35 V DC
- Electrical safety with protection class III and dielectric strength 500 V AC
- CE conformity according to 2004/108/EC and EN 61326-2-3
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial temperature measurement in process control
- Food and beverage industry requiring hygienic sensor design
- Pharmaceutical and chemical processing
- General temperature monitoring in harsh environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Accurate temperature measurement improves process efficiency and reduces energy consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK THTE-1AAT10256MZ temperature sensor is available for immediate purchase, ideal for hygienic and industrial temperature measurement applications.
