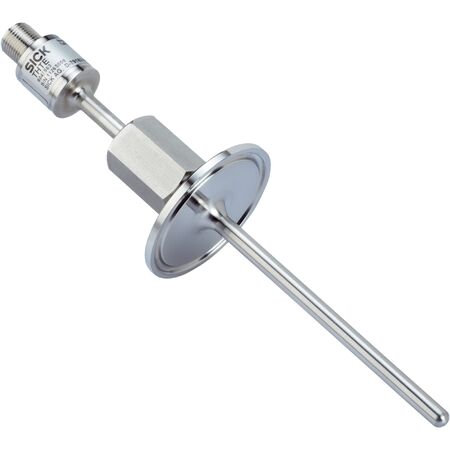

Pt1000 Temperature Sensor | -50°C to +150°C Range | Hygienic Tri-clamp Design | IP67 & IP69 Rated | by SICK
The Pt1000 Temperature Sensor is designed for precise temperature measurement in industrial and hygienic applications, featuring a measuring range from -50°C to +150°C. With a robust stainless steel construction and hygienic Tri-clamp connections, it ensures reliable performance in food, beverage, and pharmaceutical processing. Its IP67 and IP69 ratings provide excellent protection against dust and water, making it ideal for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +150 °C
- Sensor element: Pt1000
- Output signal: 4 mA to 20 mA, 2-wire
- Maximum ohmic load RA: RA ≤ (L + – 10 V) / 0.023 A [Ohm]
- Process connection: Tri-clamp 1'' and 1 ½''
- Insertion length/diameter of probe: 50 mm / 6 mm
- Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
- Maximum process pressure: ≤ 16 bar
- Housing material: Stainless steel (CrNi)
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67 and IP69
- Supply voltage: 15 V DC to 35 V DC
- Maximum current consumption: ≤ 30 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC, reverse polarity protection
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 4.7 s, t90 ≤ 12.2 s
- Ambient temperature: -40 °C to +85 °C
- Storage and transport temperature: -40 °C to +85 °C
- Shock resistance: 50 g, 6 ms
- Relative humidity: ≤ 100%
- CE conformity: 2004/108/EC, EN 61326-2-3
- Dimensions (H x L x W): 150mm x 150mm x 20mm
- Weight: 0.3 kg
Key Features
- Measuring range from -50 °C to +150 °C
- Pt1000 sensor element for accurate temperature measurement
- 2-wire 4 mA to 20 mA output signal
- Tri-clamp 1'' and 1 ½'' process connections for hygienic applications
- Stainless steel 1.4435 / 316L wetted parts with Ra ≤ 0.8 µm surface finish
- IP67 and IP69 rated enclosure for protection against dust and water
- Maximum process pressure up to 16 bar
- M12 round 4-pin connector for electrical connection
- Protection class III with dielectric strength of 500 V AC and reverse polarity protection
- CE conformity according to 2004/108/EC and EN 61326-2-3
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial temperature measurement in process control
- Food and beverage industry with hygienic Tri-clamp connections
- Chemical and pharmaceutical processing requiring precise temperature monitoring
- General temperature sensing in harsh environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Accurate temperature measurement improves process efficiency and reduces energy consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK THTE-1AAT10506MZ temperature sensor is available for immediate purchase, ideal for industrial and hygienic process temperature measurement applications.
