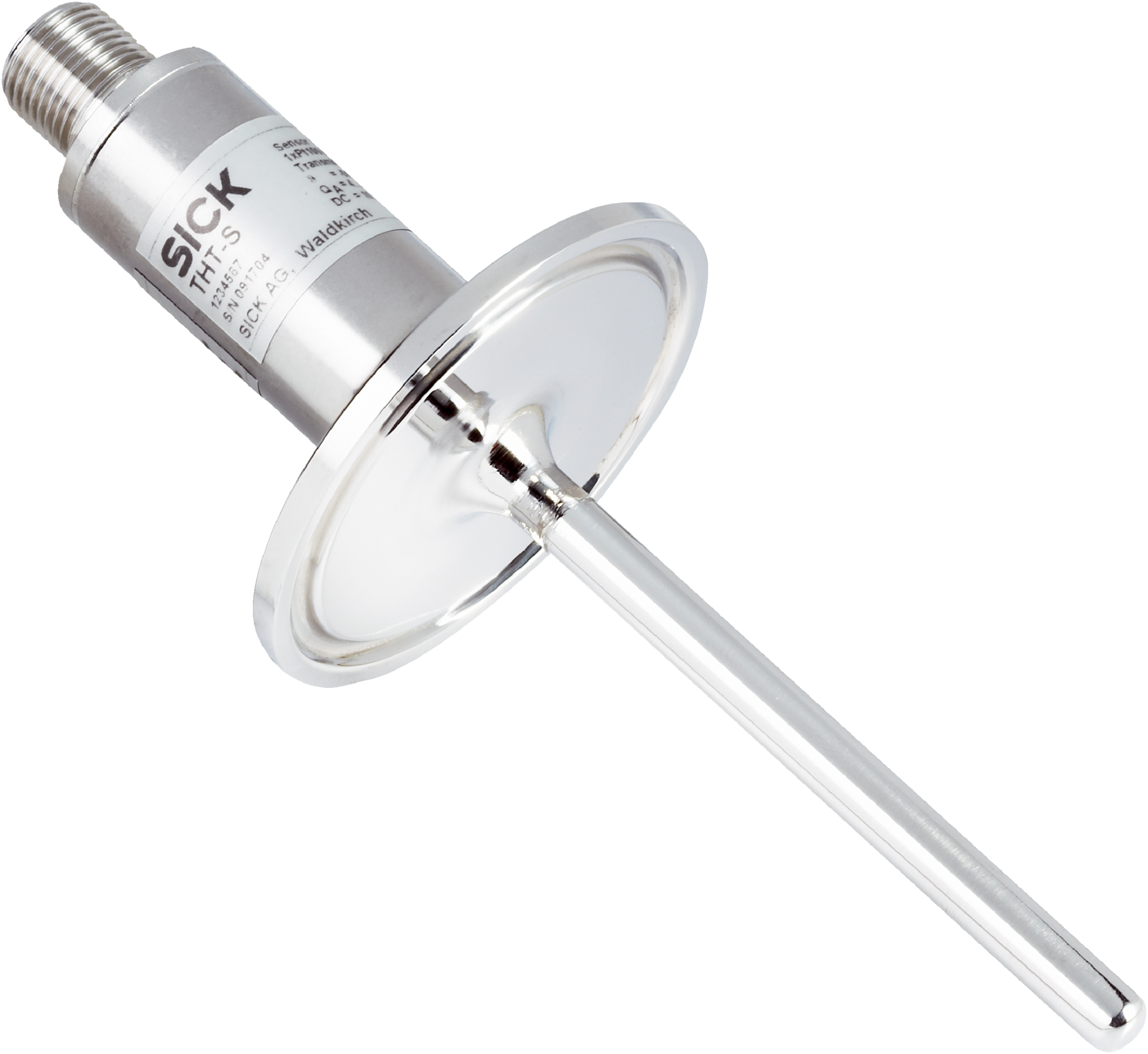

Pt1000 Temperature Sensor | -50°C to +150°C Range | Tri-Clamp Connection | IP67 & IP69 Rated | by SICK
The Pt1000 Temperature Sensor is designed for precise temperature measurement in industrial applications, featuring a measuring range from -50°C to +150°C and a hygienic Tri-Clamp 2" process connection. Built with durable stainless steel and rated IP67/IP69, it ensures reliable performance in harsh environments, making it ideal for food, beverage, and pharmaceutical industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Pt1000 Temperature Sensor, Tri-Clamp Temperature Probe, Industrial Temperature Transmitter, Hygienic Temperature Sensor
Technical Specifications
- Measuring range: -50 °C to +150 °C
- Sensor element: Pt1000
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Tri-Clamp 2"
- Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
- Maximum process pressure: ≤ 16 bar
- Housing material: Stainless steel (CrNi)
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67 and IP69
- Supply voltage: 10 V DC to 35 V DC
- Maximum current consumption: ≤ 30 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC, reverse polarity protection
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 3.3 s, t90 ≤ 9.7 s
- Ambient temperature range: -40 °C to +85 °C
- Shock resistance: 50 g, 6 ms
- Relative humidity: ≤ 100%
- Dimensions (H x L x W): 120mm x 120mm x 20mm
- Weight: 0.3 kg
Key Features
- Measuring range from -50 °C to +150 °C
- Pt1000 sensor element for precise temperature measurement
- 2-wire 4 mA to 20 mA output signal
- Tri-Clamp 2" process connection suitable for hygienic applications
- Stainless steel 1.4435 / 316L wetted parts with Ra ≤ 0.8 µm surface finish
- IP67 and IP69 rated enclosure for protection against dust and water
- M12 round 4-pin connector for electrical connection
- Maximum process pressure up to 16 bar
- Protection class III with dielectric strength of 500 V AC
- Reverse polarity protection included
- Fast response time: t50 ≤ 3.3 s, t90 ≤ 9.7 s
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial temperature measurement in process control
- Food and beverage industry with hygienic Tri-Clamp connection
- Chemical and pharmaceutical process monitoring
- General temperature sensing in harsh environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Accurate temperature measurement improves process efficiency and energy use
- IP67/IP69 protection minimizes environmental contamination and sensor failure
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK THTS-1AAT20506MZ temperature sensor is available for immediate purchase, ideal for industrial and hygienic process temperature measurement applications.
