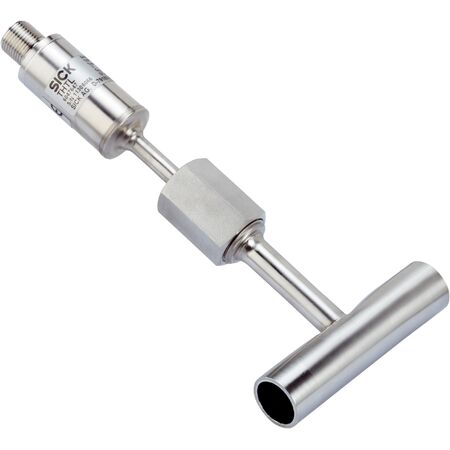

Pt1000 Temperature Sensor | -50°C to +250°C Range | 4-20mA Output | IP67 & IP69 Rated | by SICK
The Pt1000 Temperature Sensor is designed for precise industrial temperature measurement, featuring a wide measuring range from -50°C to +250°C and a reliable 4-20mA output signal. Built with durable stainless steel and rated IP67/IP69, it's perfect for harsh environments in chemical, pharmaceutical, and food processing applications, ensuring accurate monitoring and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +250 °C
- Sensor element: Pt1000
- Output signal: 4 mA to 20 mA, 2-wire
- Maximum ohmic load RA: RA ≤ (L + – 10 V) / 0.023 A [Ohm]
- Process connection: Angled pipe (DIN EN ISO 1127 and DIN 11866), row B, for welding
- Nominal width: DN 21.3
- Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
- Maximum process pressure: ≤ 25 bar
- Housing material: Stainless steel (CrNi)
- Connection type: M12 round connector x 1, 4-pin
- Enclosure rating: IP67 and IP69
- Supply voltage: 10 V DC to 35 V DC
- Maximum current consumption: Approx. 30 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC, reverse polarity protection
- Accuracy of sensor element: Class A according to IEC 60751
- Transmitter accuracy: ± 0.25 K
- Response time: t50 ≤ 3.2 s, t90 ≤ 9.1 s
- Ambient temperature: -40 °C to +85 °C
- Storage and transport temperature: -40 °C to +85 °C
- Shock resistance: 50 g, 6 ms (IEC 60068-2-27)
- Relative humidity: ≤ 100%
- Initialization time: Max. 4 s
- CE conformity: 2004/108/EC, EN 61326-2-3
- Dimensions (H x L x W): 150mm x 150mm x 30mm
- Weight: 0.5 kg
Key Features
- Measuring range from -50 °C to +250 °C
- Pt1000 sensor element for precise temperature measurement
- 2-wire 4 mA to 20 mA output signal
- Stainless steel 1.4435 / 316L wetted parts with Ra ≤ 0.8 µm
- Angled pipe process connection for welding (DIN EN ISO 1127 and DIN 11866)
- IP67 and IP69 rated enclosure for robust protection
- Supply voltage range 10 V DC to 35 V DC
- Electrical safety with protection class III and dielectric strength 500 V AC
- Reverse polarity protection included
- Shock resistance up to 50 g, 6 ms
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial temperature measurement in process control
- Monitoring temperature in chemical and pharmaceutical industries
- Use in food and beverage processing plants
- Suitable for harsh environments requiring IP67/IP69 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption with efficient 2-wire 4-20mA output
- High accuracy reduces energy waste by enabling precise process control
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK THTL-1ABAB0213MZ temperature sensor is available for immediate purchase, ideal for industrial temperature measurement and process control applications.
