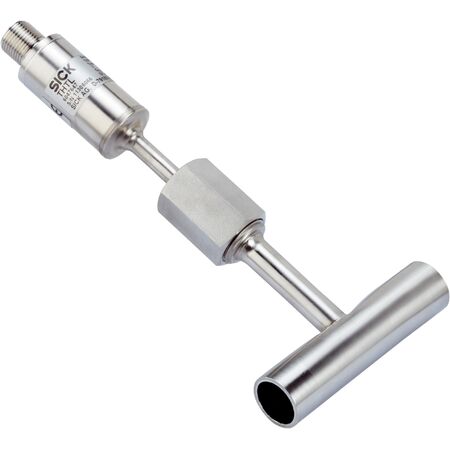

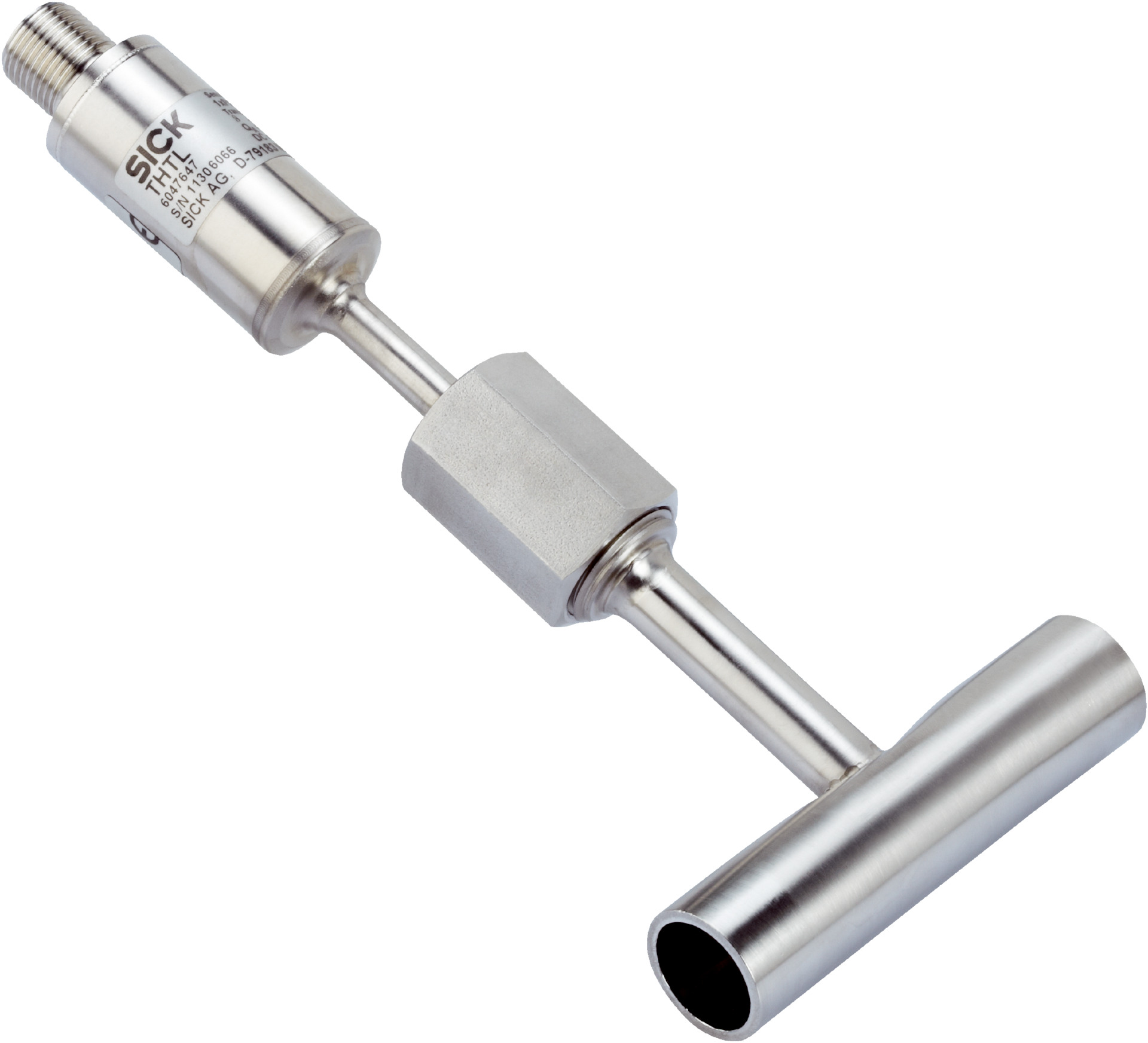

Pt1000 Temperature Sensor | -50°C to +250°C Range | 4-20mA Output | IP67 & IP69 Rated | by SICK
The Pt1000 Temperature Sensor is designed for precise industrial temperature measurement, featuring a wide measuring range from -50°C to +250°C and a reliable 4-20mA output signal. Built with durable stainless steel and rated IP67/IP69 for protection against dust and water, it's perfect for process control and manufacturing environments, ensuring accurate monitoring and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +250 °C
- Sensor element: Pt1000
- Output signal: 4 mA to 20 mA, 2-wire
- Maximum ohmic load RA: RA ≤ (L + -10 V) / 0.023 A [Ohm]
- Process connection: Spare sensor without process connection
- Nominal width: DN 21.3
- Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
- Maximum process pressure: ≤ 25 bar
- Housing material: Stainless steel (CrNi)
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67, IP69
- Supply voltage: 10 V DC to 35 V DC
- Maximum current consumption: Approx. 30 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC, reverse polarity protection
- Accuracy of sensor element: Class A according to IEC 60751
- Transmitter accuracy: ± 0.25 K
- Response time: t50 ≤ 3.2 s, t90 ≤ 9.1 s
- Ambient temperature: -40 °C to +85 °C
- Storage and transport temperature: -40 °C to +85 °C
- Shock resistance: 50 g, 6 ms
- Relative humidity: ≤ 100%
- CE conformity: 2004/108/EC, EN 61326-2-3
- Dimensions (H x L x W): 100mm x 150mm x 21mm
- Weight: 0.3 kg
Key Features
- Measuring range from -50 °C to +250 °C
- Pt1000 sensor element for accurate temperature measurement
- 2-wire 4 mA to 20 mA output signal
- Stainless steel 1.4435 / 316L wetted parts with Ra ≤ 0.8 µm
- IP67 and IP69 rated enclosure for protection against dust and water
- Maximum process pressure up to 25 bar
- M12 round 4-pin connector for electrical connection
- Electrical safety with protection class III and reverse polarity protection
- Fast initialization time of max. 4 seconds
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial temperature measurement in process control
- Monitoring temperature in manufacturing environments
- Use in systems requiring precise temperature sensing with 4-20mA output
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption with efficient 2-wire 4-20mA output
- High accuracy reduces energy waste by enabling precise process control
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against defects.
Available Now
The SICK THTL-1ABZZ0213MZ temperature sensor is available for immediate purchase, ideal for industrial and process temperature measurement applications.
